C70 L5-2.5L Turbo VIN 68 B5254T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

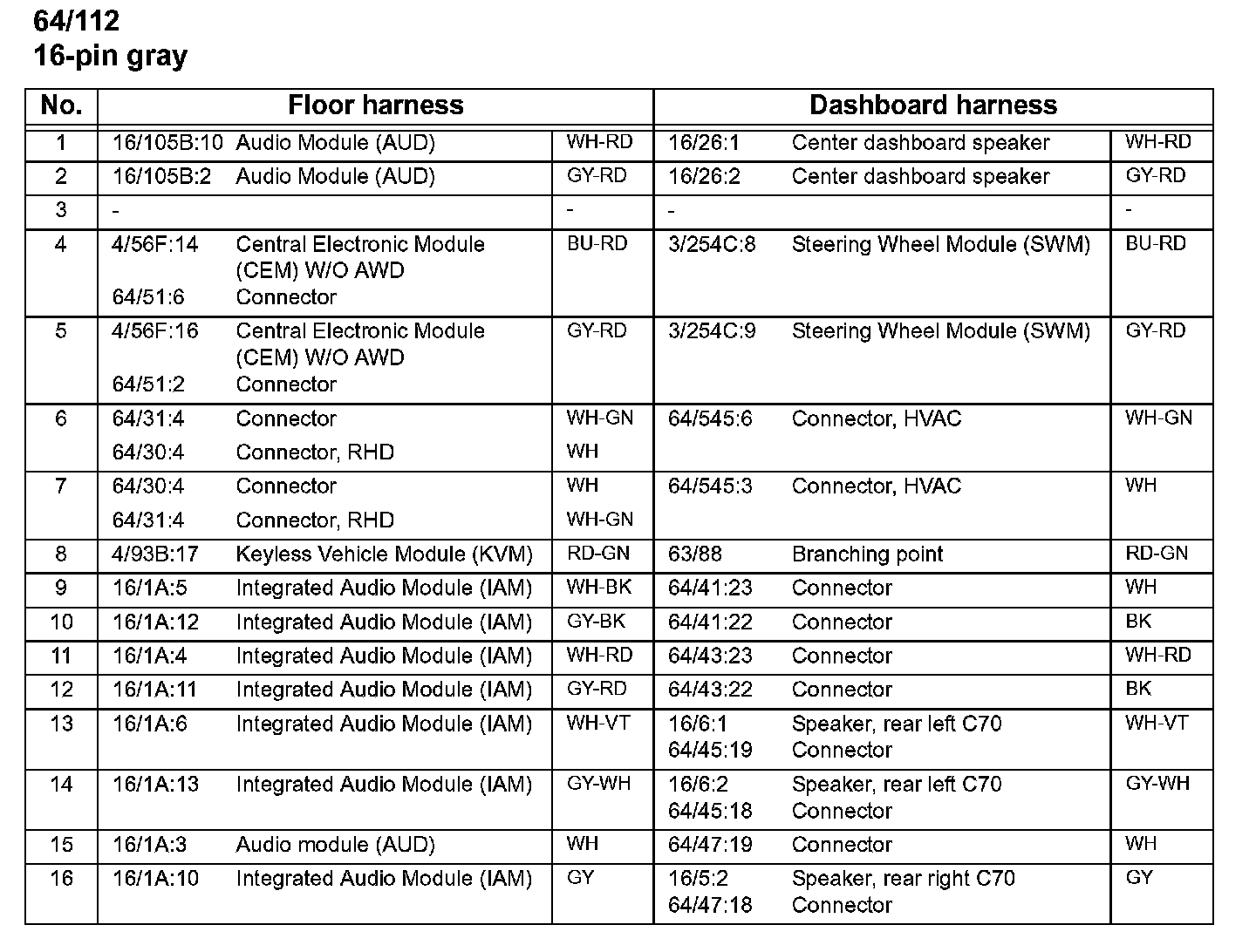

64/112
64/112
64/112:
64/112 Connector:
