Brake Pipes Rear Wheel, Replacing

Brake pipes rear wheel, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work




Remove the wheel.
Secure the pedal in the depressed position. Use a pedal jack.
Remove the protective cap from the bleed nipple.
Install a plastic hose on the nipple. Open the bleed nipple.
Collect the brake fluid in a container.
Shut the bleed nipple.

Removal

Removing the air baffle




Applies to the left-hand side.

Remove:
- the 2 plastic nuts (1)
- the 1 screw (2)
- the air baffle.

Removing the heat deflector plate




Applies to the left-hand side.

Remove:
- the 5 plastic nuts
- the heat deflector plate. Hang the heat deflector plate on the exhaust system.

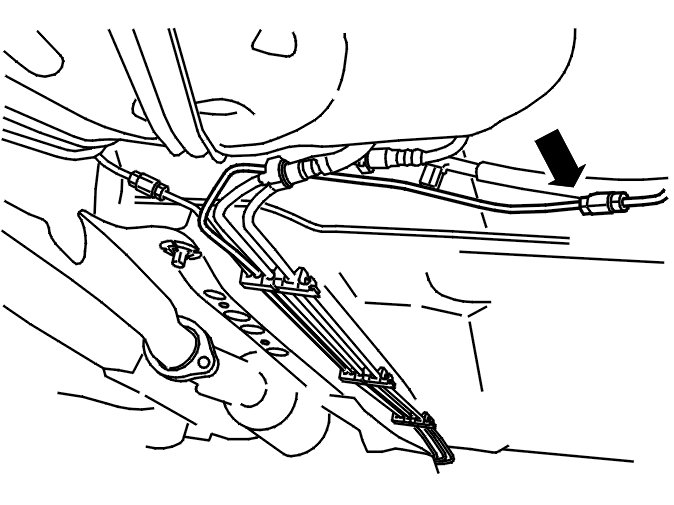

Removing the left rear brake pipe

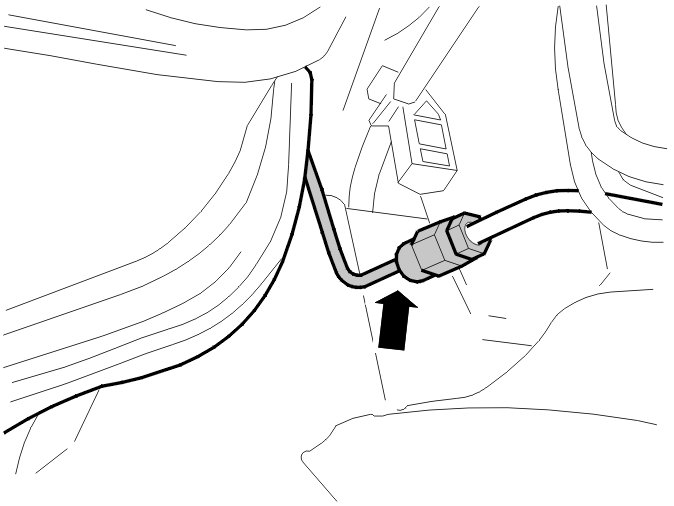

Remove the brake pipe from the brake hose.





Remove:
- the brake pipe from the front-rear pipe
- the brake pipe from the clips.

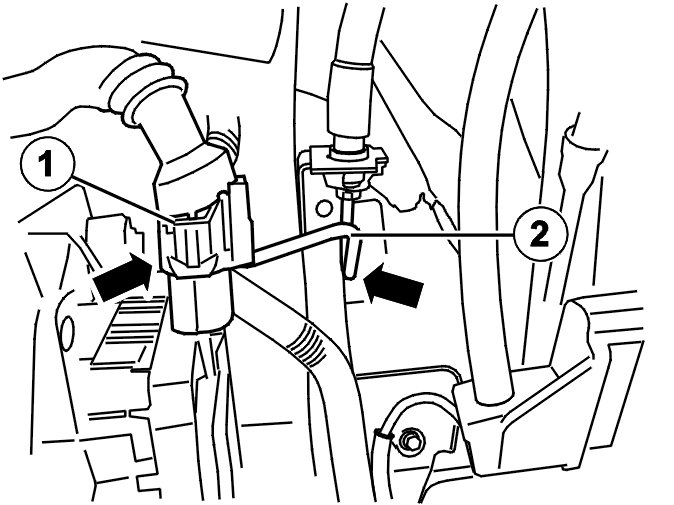

Removing the right rear brake pipe





Remove:
- the connector (1)
- the brake pipe from the brake hose (2).





Remove:
- the brake pipe from the front-rear pipe
- the brake pipe from the clips.

Installation

Note! For tightening torques, see Specifications. Tightening Torque.

Installing the left rear brake pipe




Install the brake pipe in the front-rear pipe. Tighten. See: Tightening torque Tightening Torque.





Install:
- the brake pipe in the brake hose. Tighten. See: Tightening torque Tightening Torque
- the brake pipe in the clips.

Installing the right rear brake pipe




Install the brake pipe in the front-rear brake pipe. Tighten. See: Tightening torque Tightening Torque.





Install:
- the brake pipe in the brake hose (2). Tighten. See: Tightening torque Tightening Torque
- the connector (1)
- the brake pipe in the clips.

Bleeding brake systems
Remove the pedal jack.
Bleed the brake system. See: Brake system bleeding Brake System Bleeding.
Check that the brake pipe connections are sealed.
Check the brake fluid level.

Installing the heat deflector plate




Applies to the left-hand side.

Install:
- the heat deflector plate
- the 5 plastic nuts.

Installing the air baffle




Applies to the left-hand side.

Install:
- the air baffle
- the 2 plastic nuts (1)
- 1 screw (2).

Finishing

Install the wheel. See: Wheels Service and Repair.
