Brake Pipes Longitudinal, Replacing

Brake pipes longitudinal, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work




Secure the pedal in the depressed position. Use a pedal jack.
Remove the protective cap from the bleed nipple.
Install a plastic hose on the nipple.
Open the bleed nipple. Collect the brake fluid in a container (bottle). Shut the bleed nipple

Removal

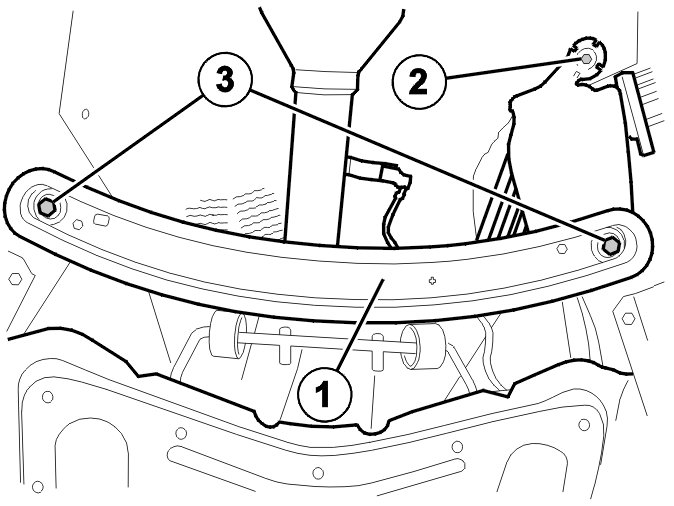

Removing the SIPS member





Remove:
- the clips for the heated oxygen sensor (HO2S) wiring (1)
- the plastic nut (2)
- the two screws (3)
- the SIPS member.

Removing the heat deflector plate for the cowl panel




Remove the heat deflector plate by pulling it out.

Removing the front-rear brake pipe

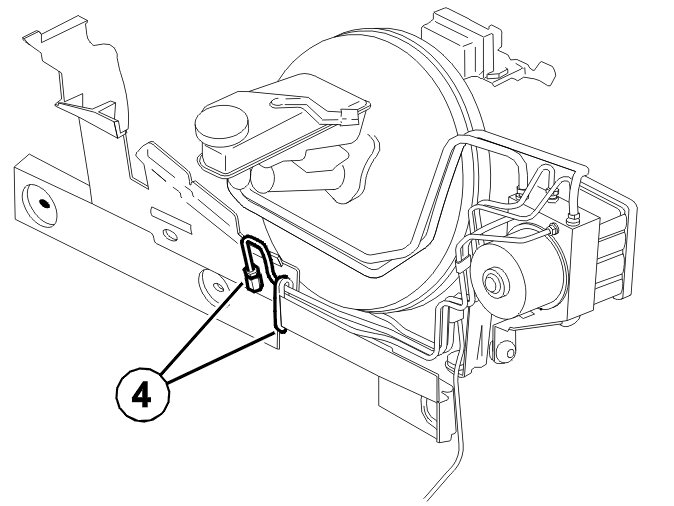

Detach the two brake pipes (4).

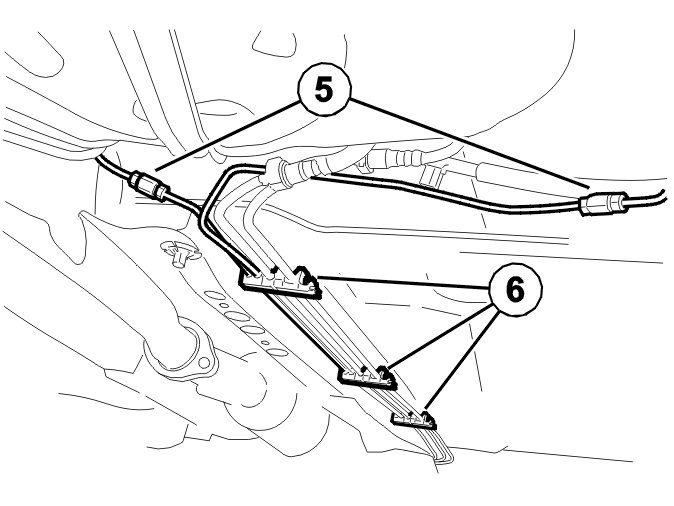

Detach the two brake pipes (5).
Remove all six clips (6).

Installation

Installing the front-rear brake pipe

Note! For tightening torques, see Specifications. Tightening Torque.




Install the two brake pipes (4).





Install:
- the two brake pipes (5)
- the six clips.

Bleeding brake systems
Remove the pedal jack.
Bleed the brake system. See: Brake system bleeding Brake System Bleeding
Check that the brake pipe connections are sealed.
Check the brake fluid level

Installing the SIPS member





Install:
- the SIPS member
- the two M10 screws (3)
- the plastic nut (2)
- the clips for the heated oxygen sensor (HO2S) wiring (1).

Installing the heat deflector plate for the cowl panel
Install the heat deflector plate
