Recall 247B - C70 Tire and Loading Information Label

Dealer Letter











Service Manager Bulletin











Owner Letter

Title Recall 247B C70 Tire and Loading Information Label

Ref No US26205.1.1 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 8970

Func Desc instruction and information plates

Status Released

Status Date 2012-04-19

Issue Date 2012-04-16

Reference VIDA/Owners manual





Attachment

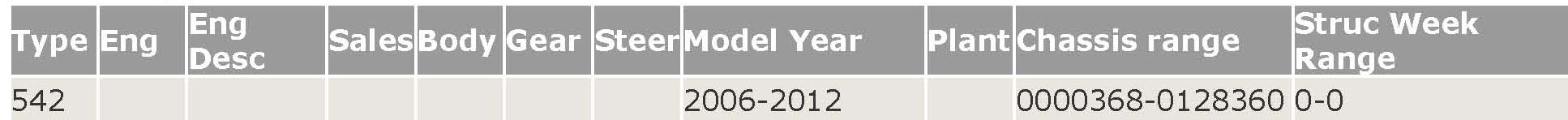

Vehicle Type

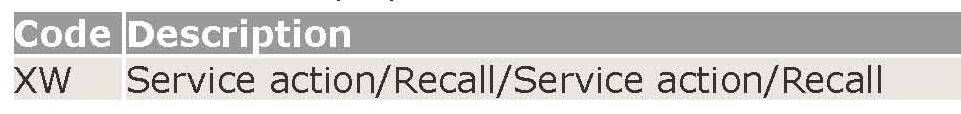

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code

DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:

Volvo Cars of North America, LLC (Volvo) has decided that certain model year 2006 - 2012 C70 vehicles with a non-factory installed spare tire fail to conform to Federal Motor Vehicle Safety Standard No.110, "Tire
selection and Rims."

The Tire and Loading Information label located on the "B" Post in the driver's door opening; required by Federal Motor Vehicle Safety Standard (FMVSS) 110 Section 4.3; may not contain the correct spare tire size and inflation pressure information on vehicles with a non-factory installed spare tire. However, the information on the tire sidewall and in the owner's manual is correct.

SERVICE:

The corrective action is to inspect if the vehicle is equipped with a spare tire then insure the Tire and Loading Information label is correct, if necessary replace the label.

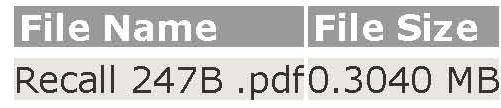

To view TJ attachment:
