Body - Water Leak Diagnostic/Repair Guide
TIE - Technical JournalTitle: Water leakage adjustment methods.
Ref No: US13000.5.0 en-US
Issuer: -
Partner 3US7510 Volvo Cars North America
Func Group 8380 Func Desc Convertible Top
Status: Released
Status Date: 2010-07-16
Issue Date: 2010-07-14
Reference: VIDA
Attachment

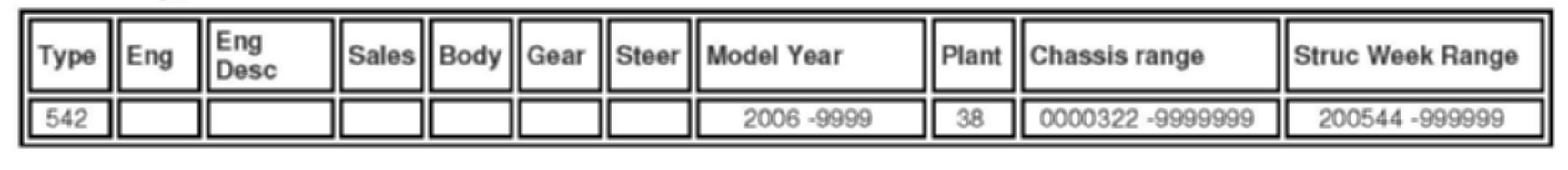

Vehicle Type

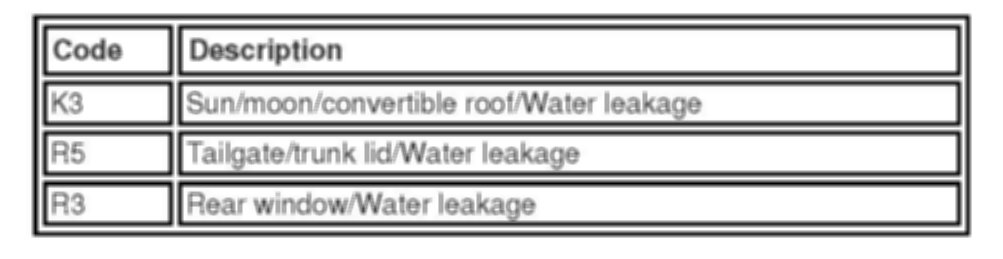

CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
When driving through certain automatic car washes the customer may experience water leakage.
PRODUCT MODIFICATION: A new front roof and middle roof sealing has been introduced into production from chassis number 542-0077817.
SERVICE

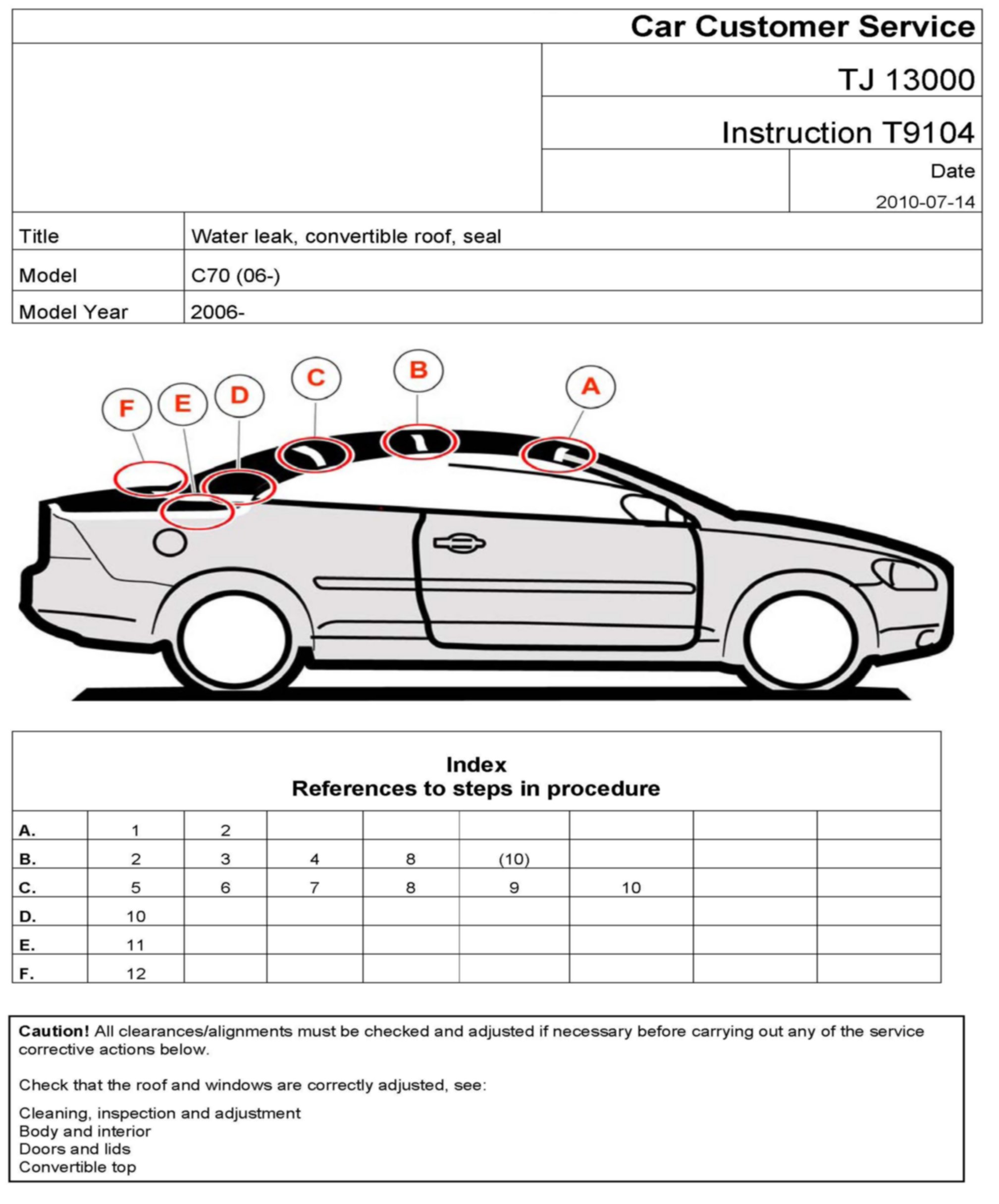

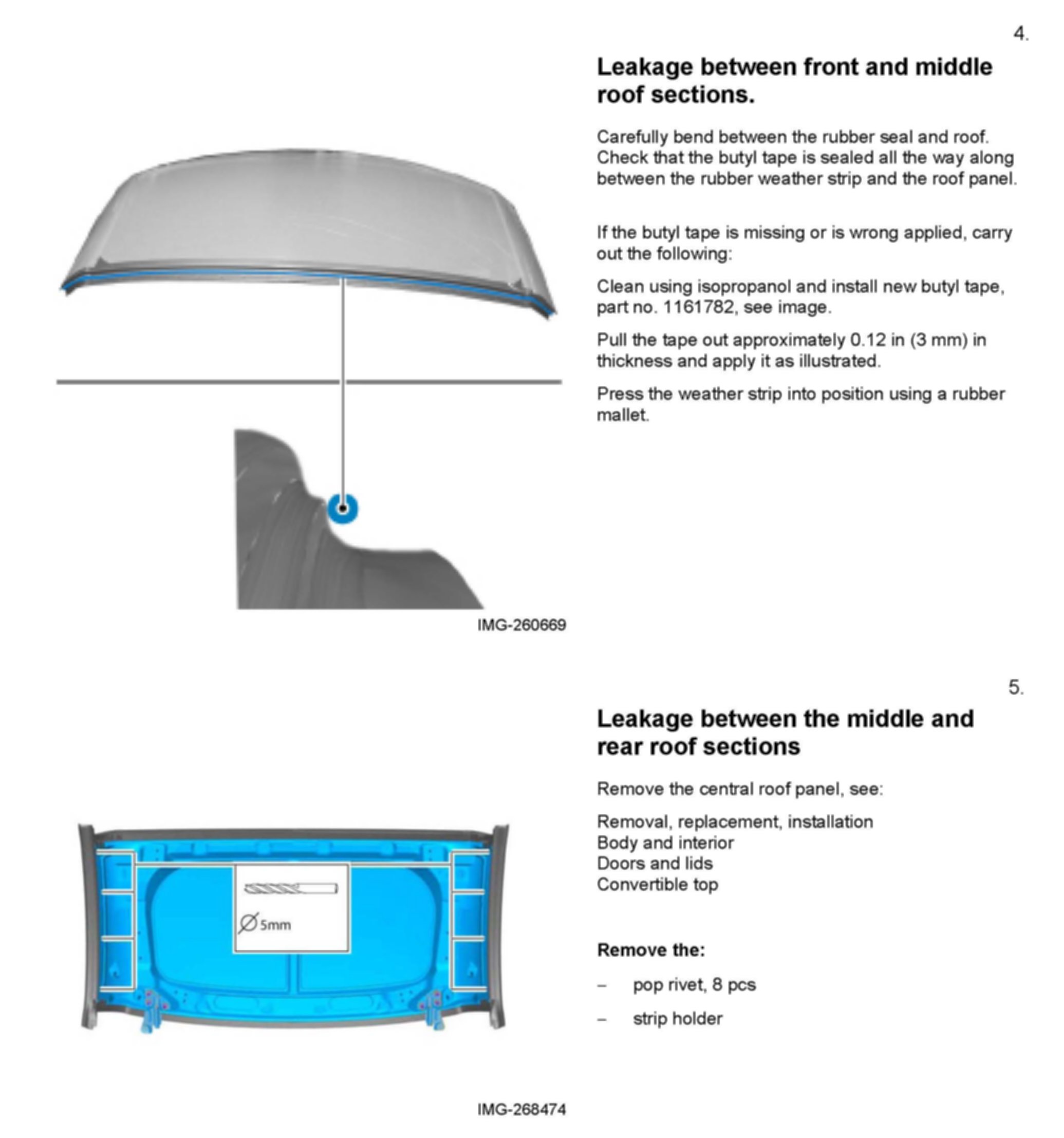

1. Determine/identify the area of water leakage according to the matrix in attached document T9104EN05.
2. If complaint for water leakage found in areas B and C, water test the vehicle and verify leakage area.
- Water test method: VIDA/ Cleaning, Inspection and Adjustment/ 8 Body and interior/84 Exterior trim, glass weatherstrips/ 844 Glass for side doors and window/Water Leak Check
- Inspect the glass position: VIDA/ Cleaning, Inspection and Adjustment/ 8 Body and interior/ 84 Exterior trim, glass, weatherstrips/ 844 Glass for side doors and window/Glass Adjustment, Check
- Compare quoted values with measured values. Adjust if necessary: VIDA/ Cleaning, Inspection and Adjustment/ 8 Body and interior/ 84 Exterior trim, glass, weatherstrips/ 844 Glass for side doors and window/ Glass Adjustment
- Verify the adjustment with water test, if still NOK:

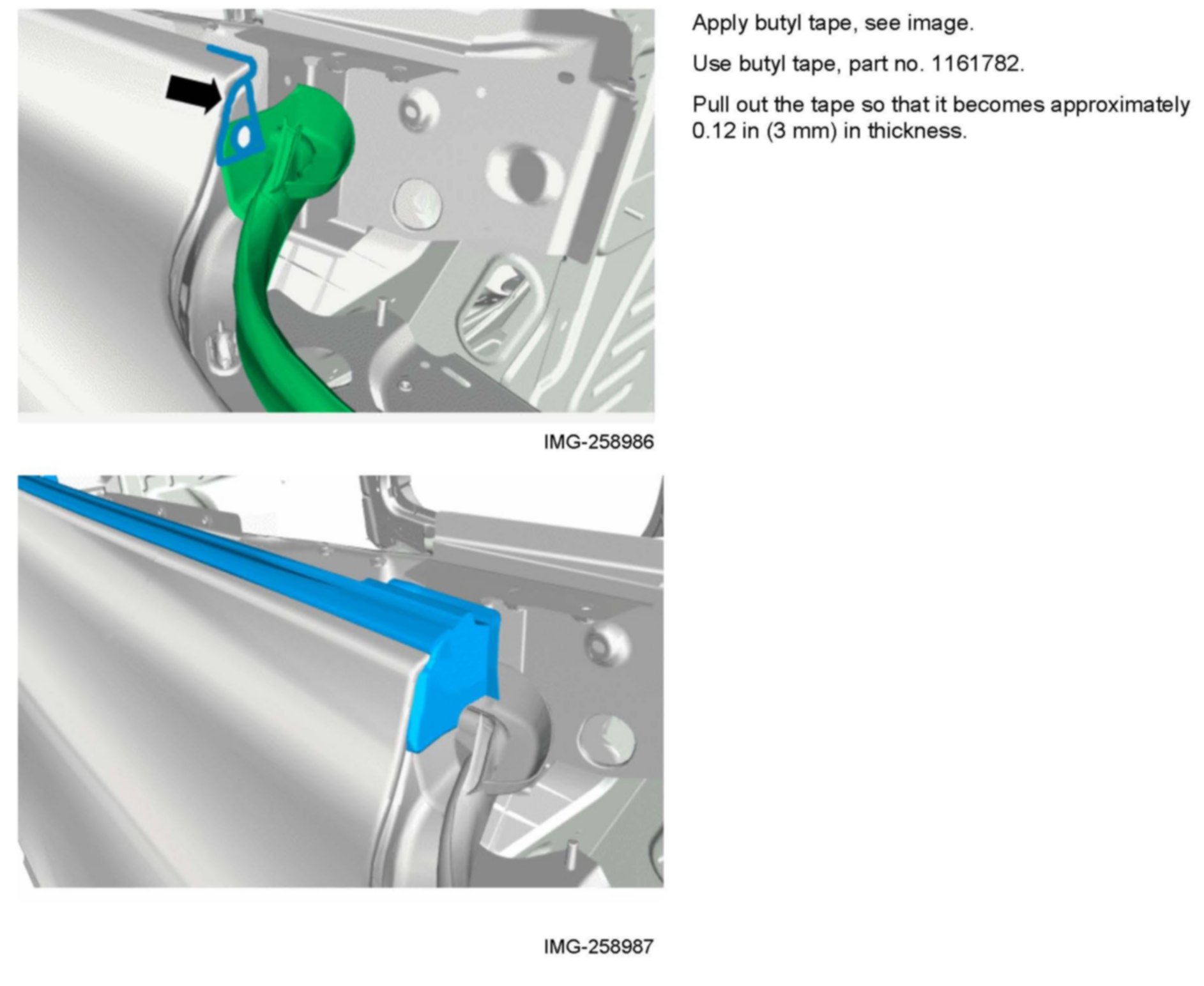

for chassis number 0000322-0018375 replace the sealing retainer centre, valid for area C.

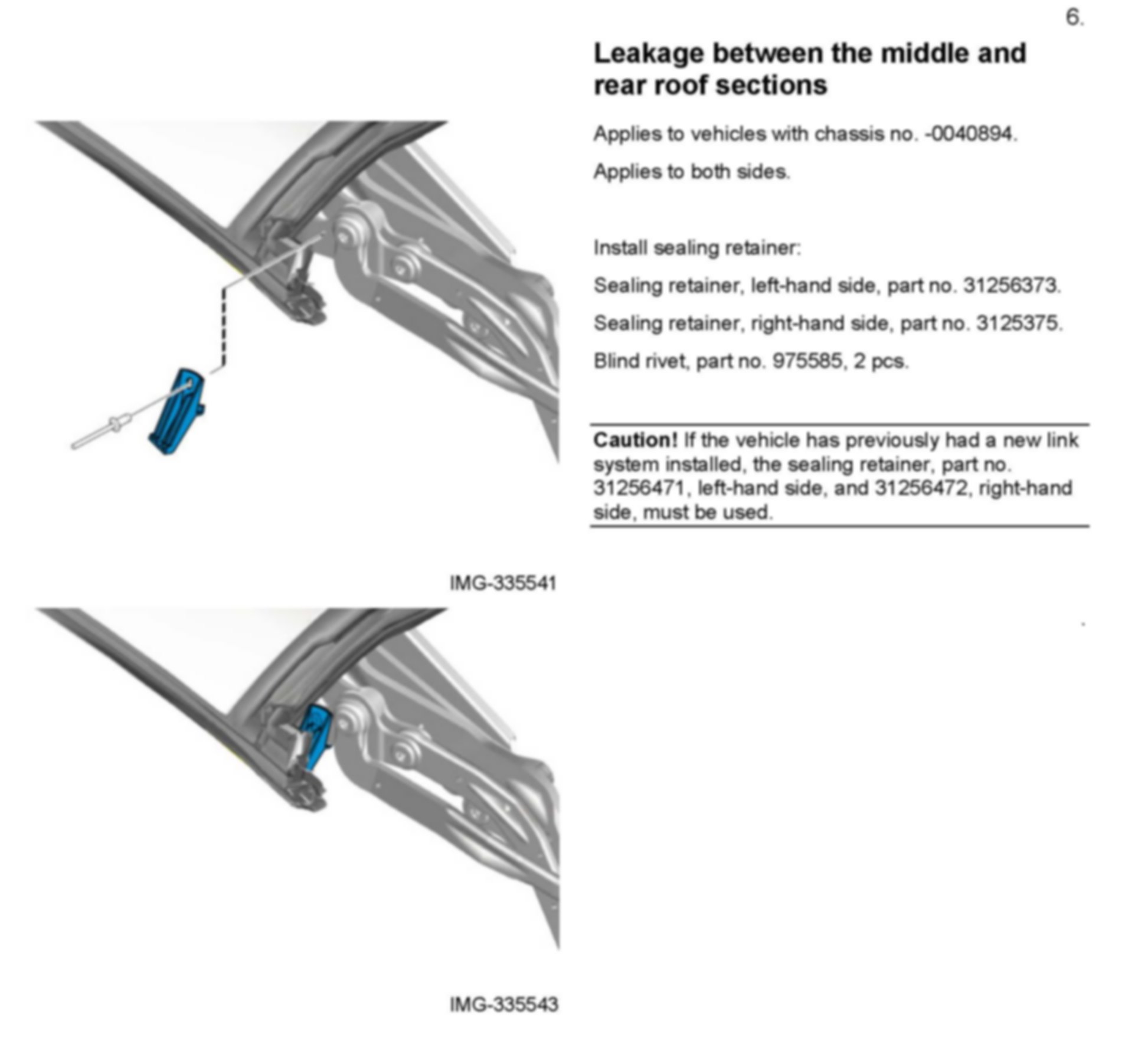

for chassis number 0000322-0040894 add plastic support, valid for area C.

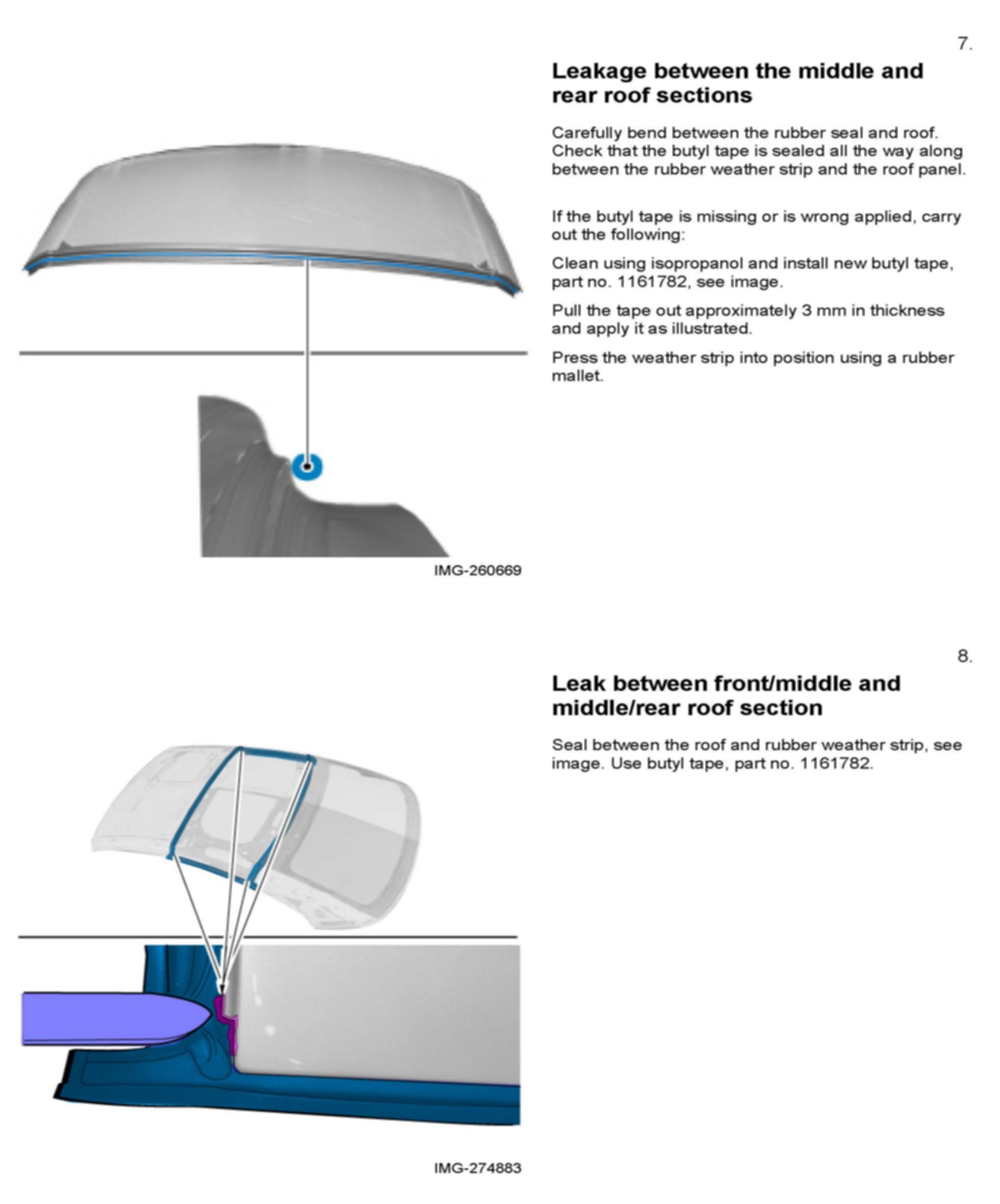

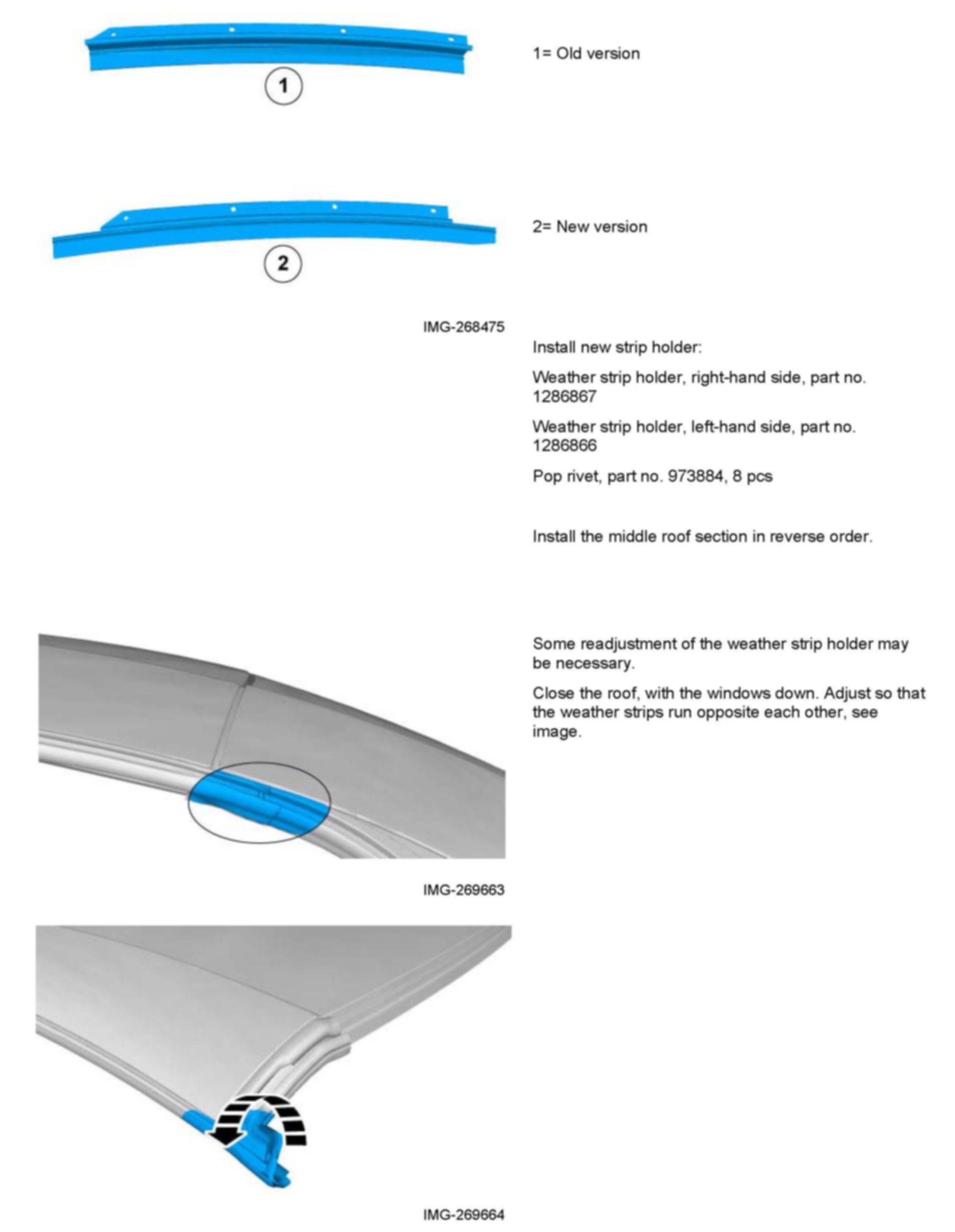

for chassis number 0000322-0077816 replace the middle roof seal in area C.

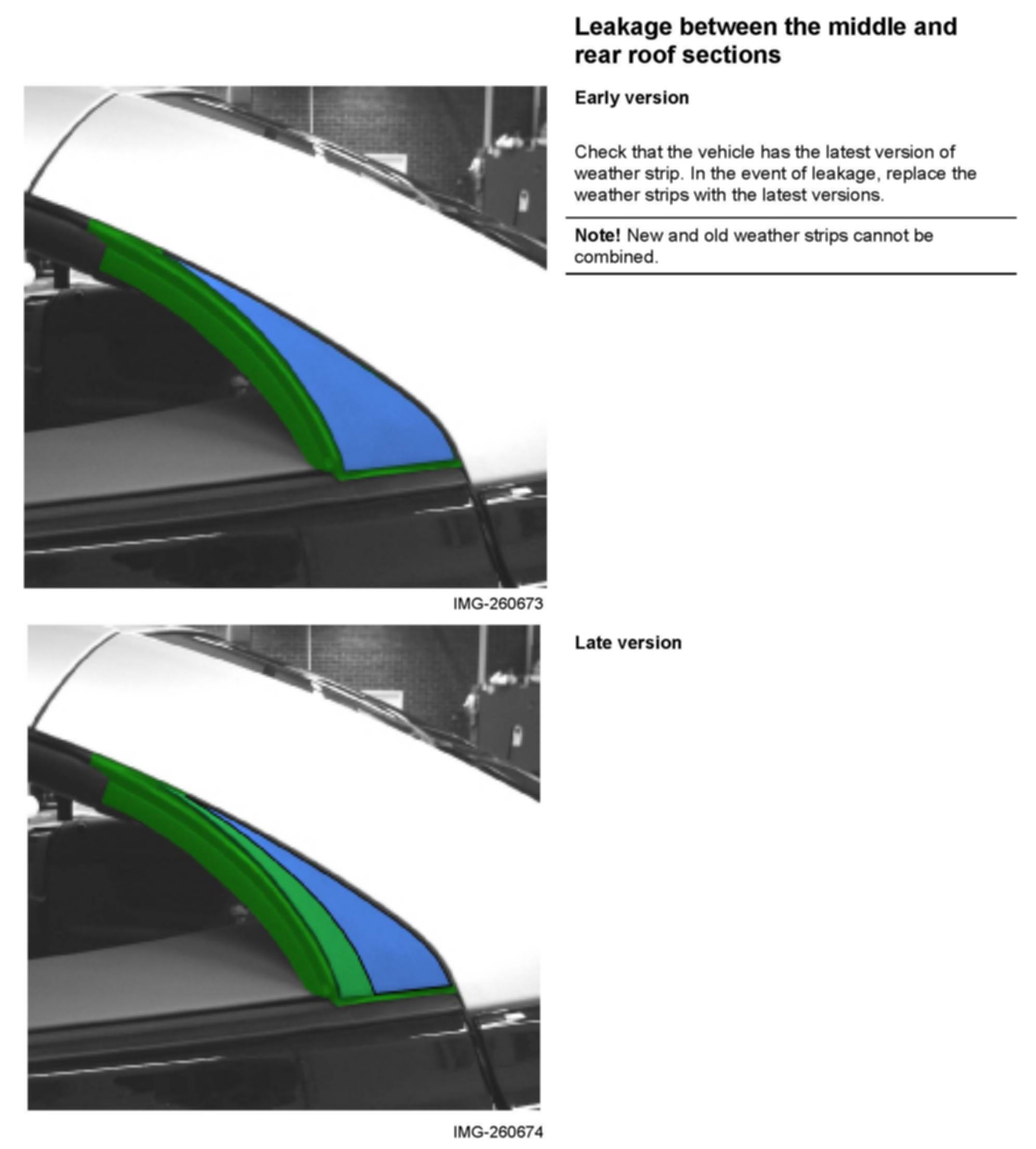

for chassis number 0077816-0093597 replace the middle roof seal in area B.
- If still NOK, check the status of the rear quarter glass seal. See attachment TJ rear quarter window glass. If it looks like NOK, replace the rear quarter window glass, valid for area B.

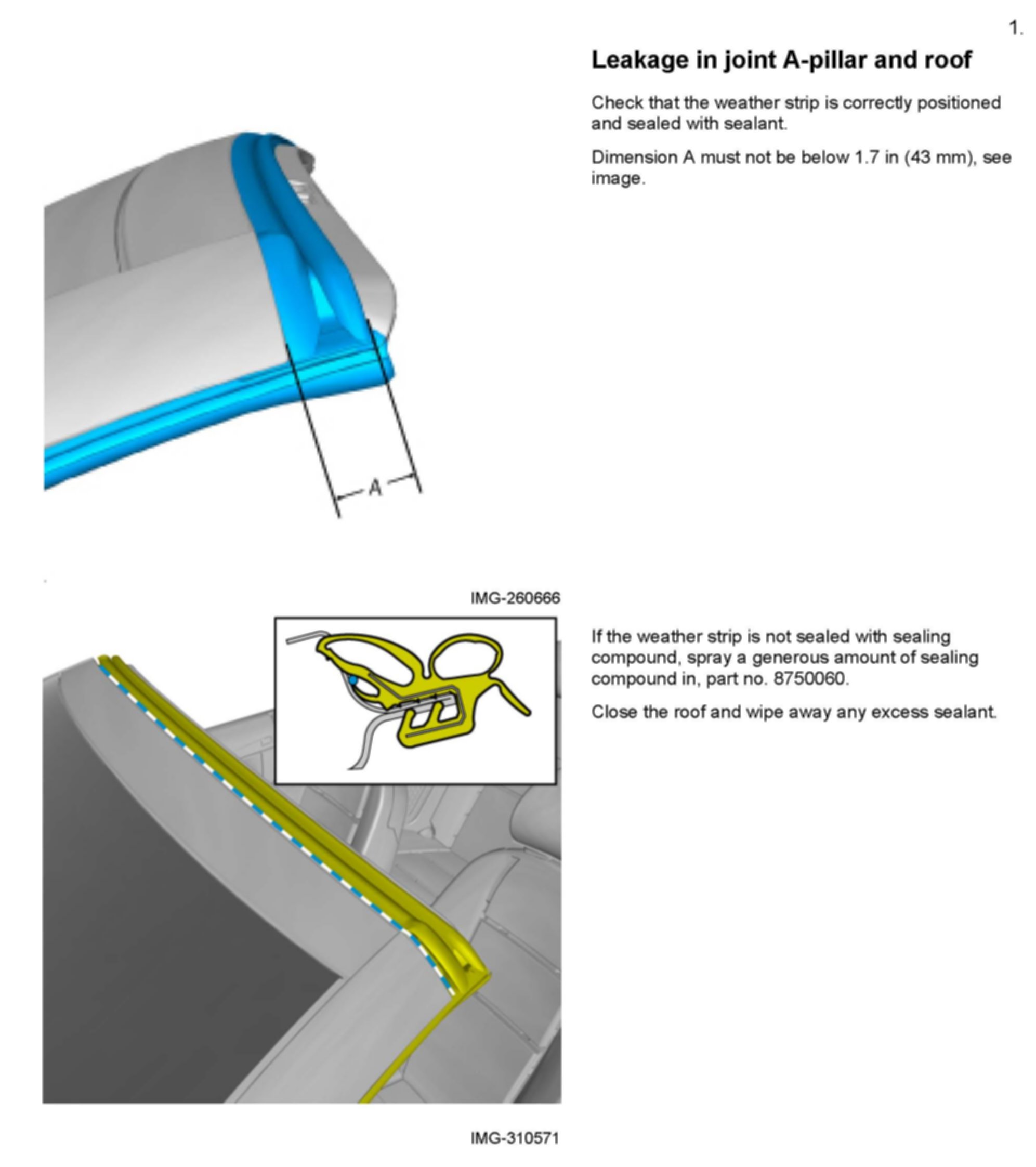

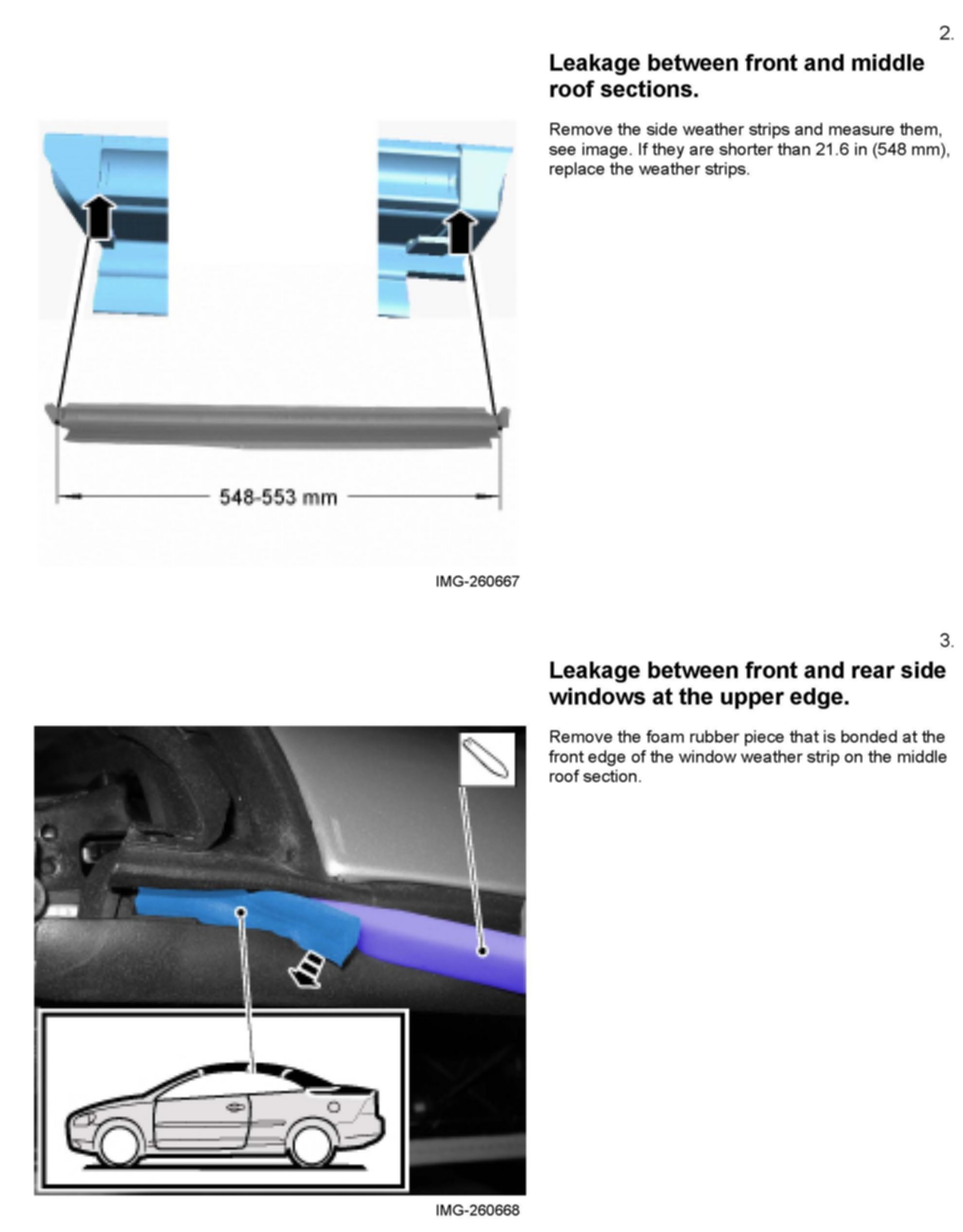

3. If found in other areas follow index matrix and repair instruction.
4. Verify repair.

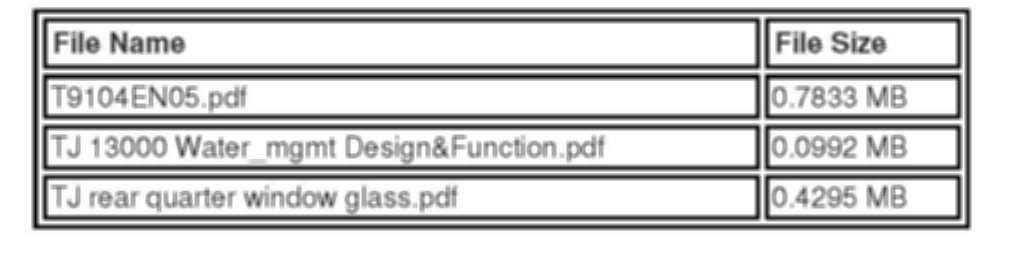

Please see attached file for reference of text.
TJ 13000 Water mgmt Design & Function
The water management system is designed to prevent water entrance. If the primary lip and the joints are not able to stop the water to go over the glass, the secondary lip should drain the remaining water in a controlled way by the water management system.

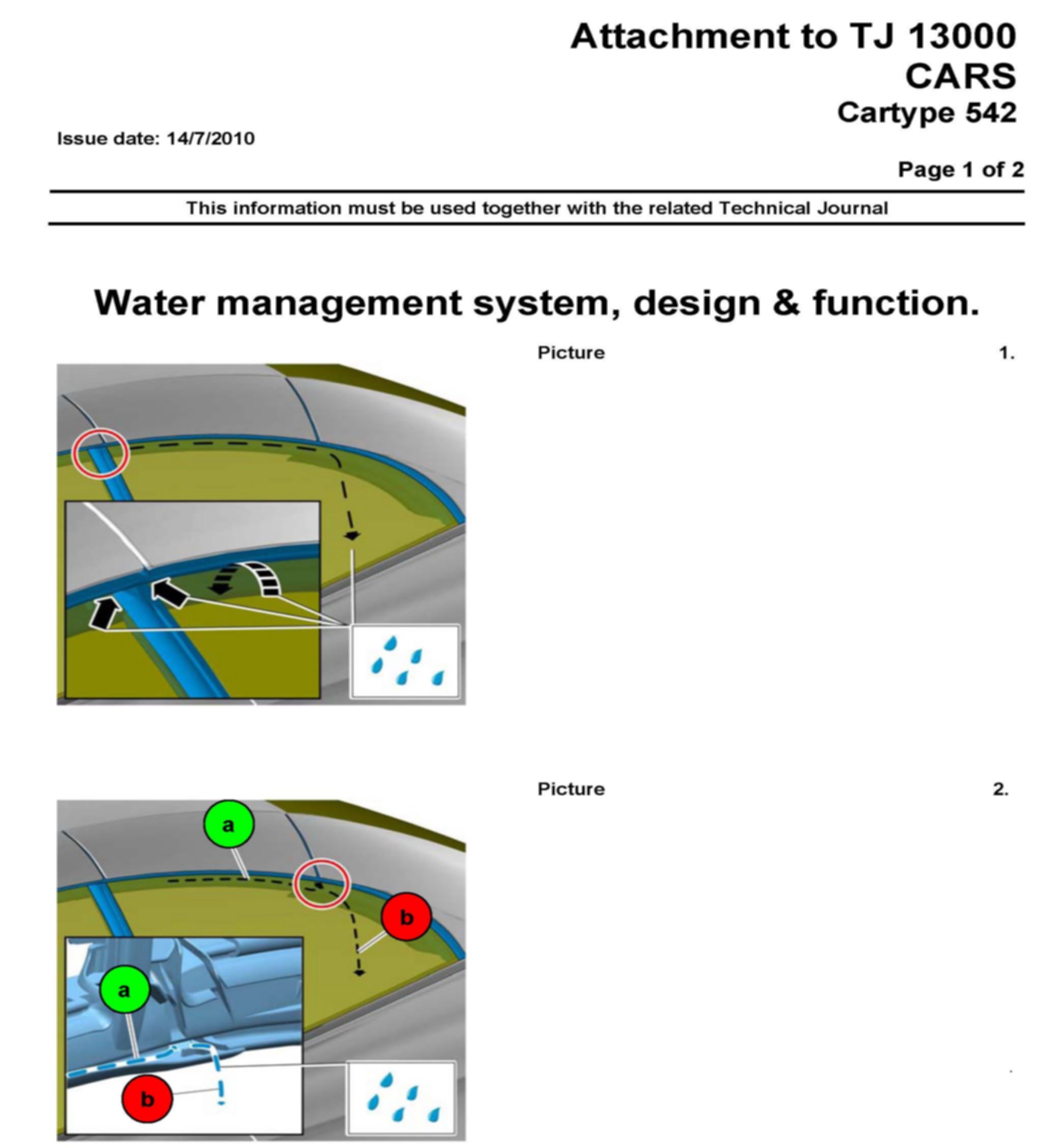

Pic 1. Water ingress during car wash, managed in the correct way.

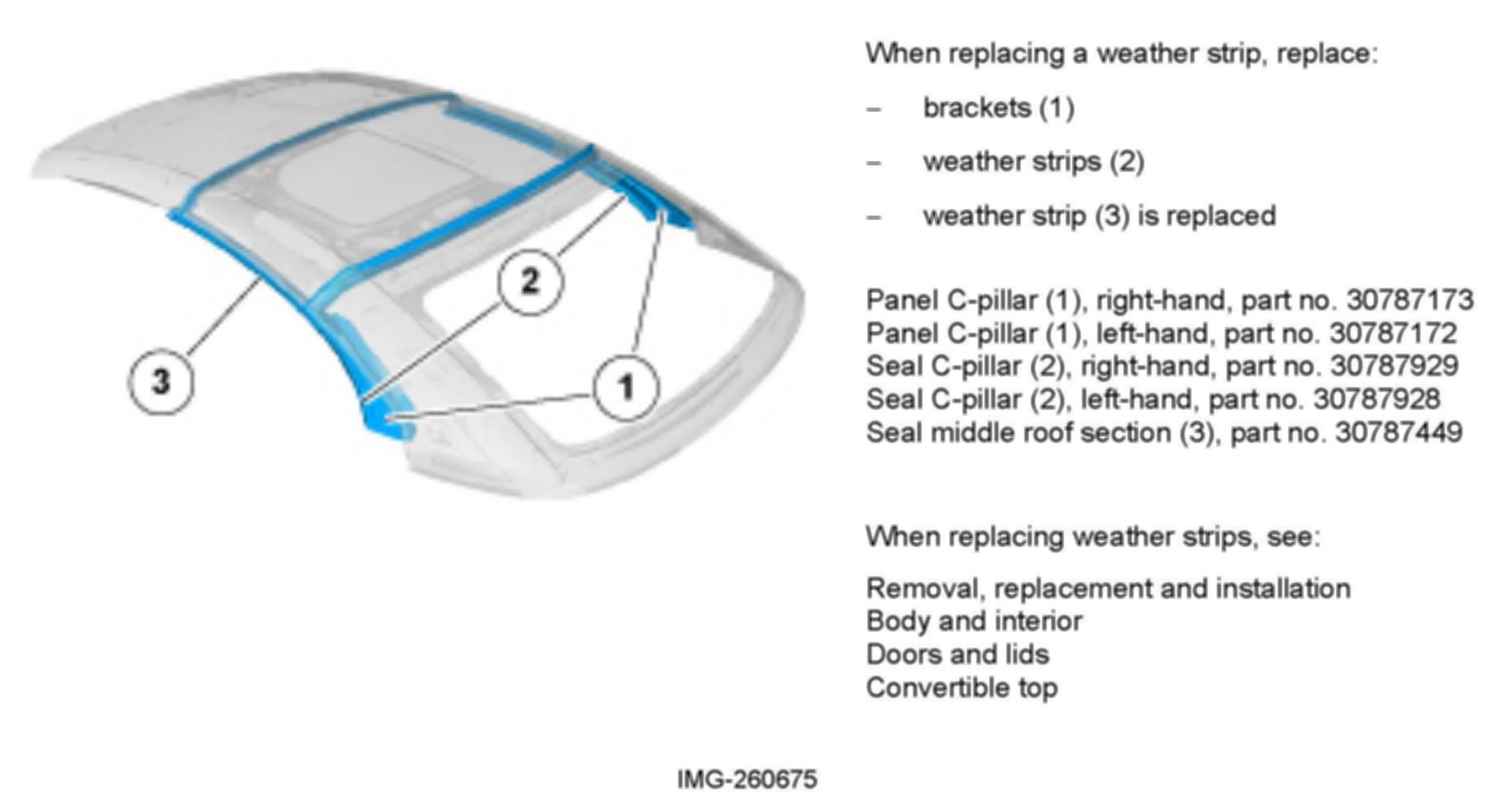

Pic 2. "Bird's eye view" of the middle roof seal.
a. Water managed in the correct way
b. Water not managed in the correct way.

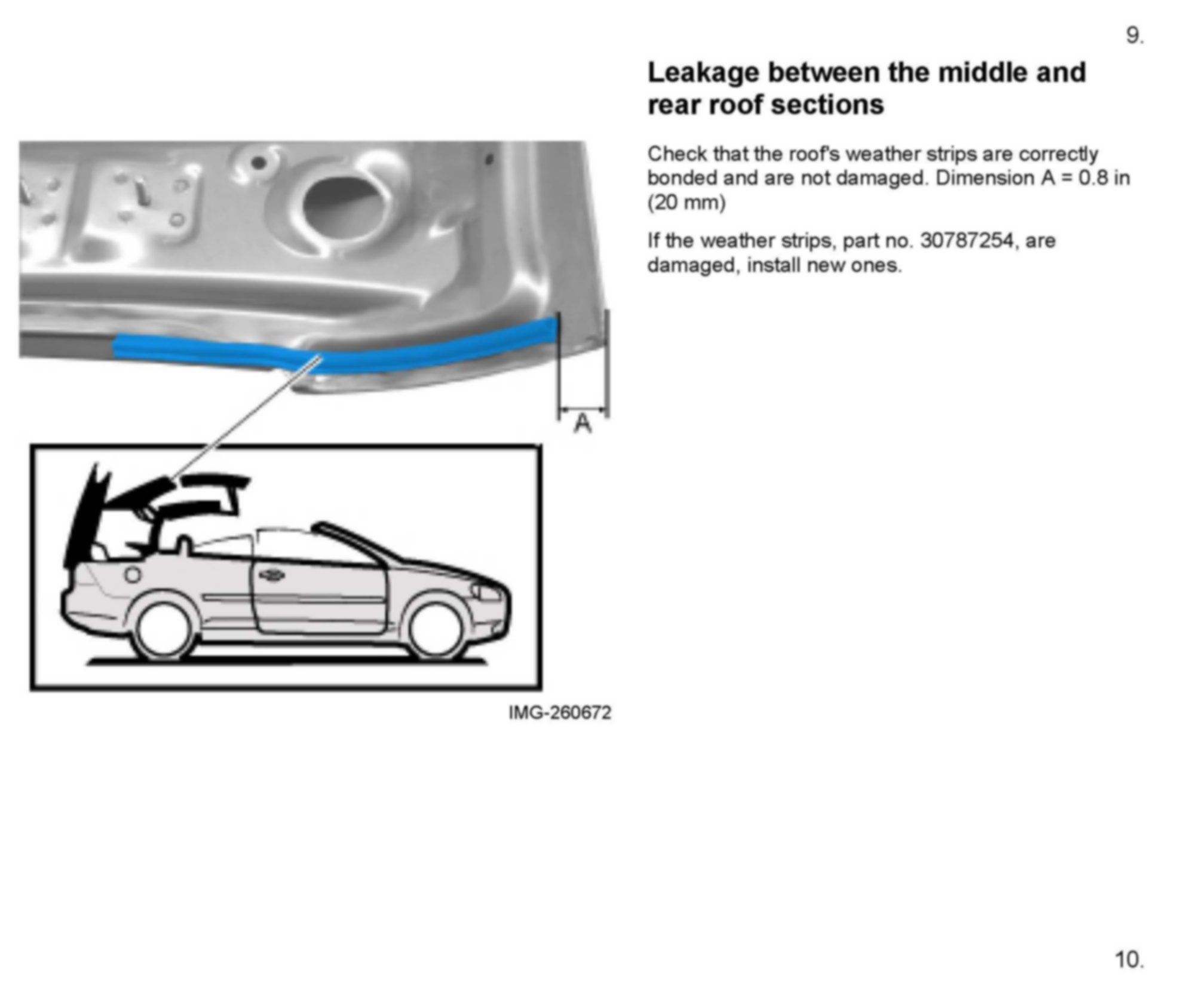

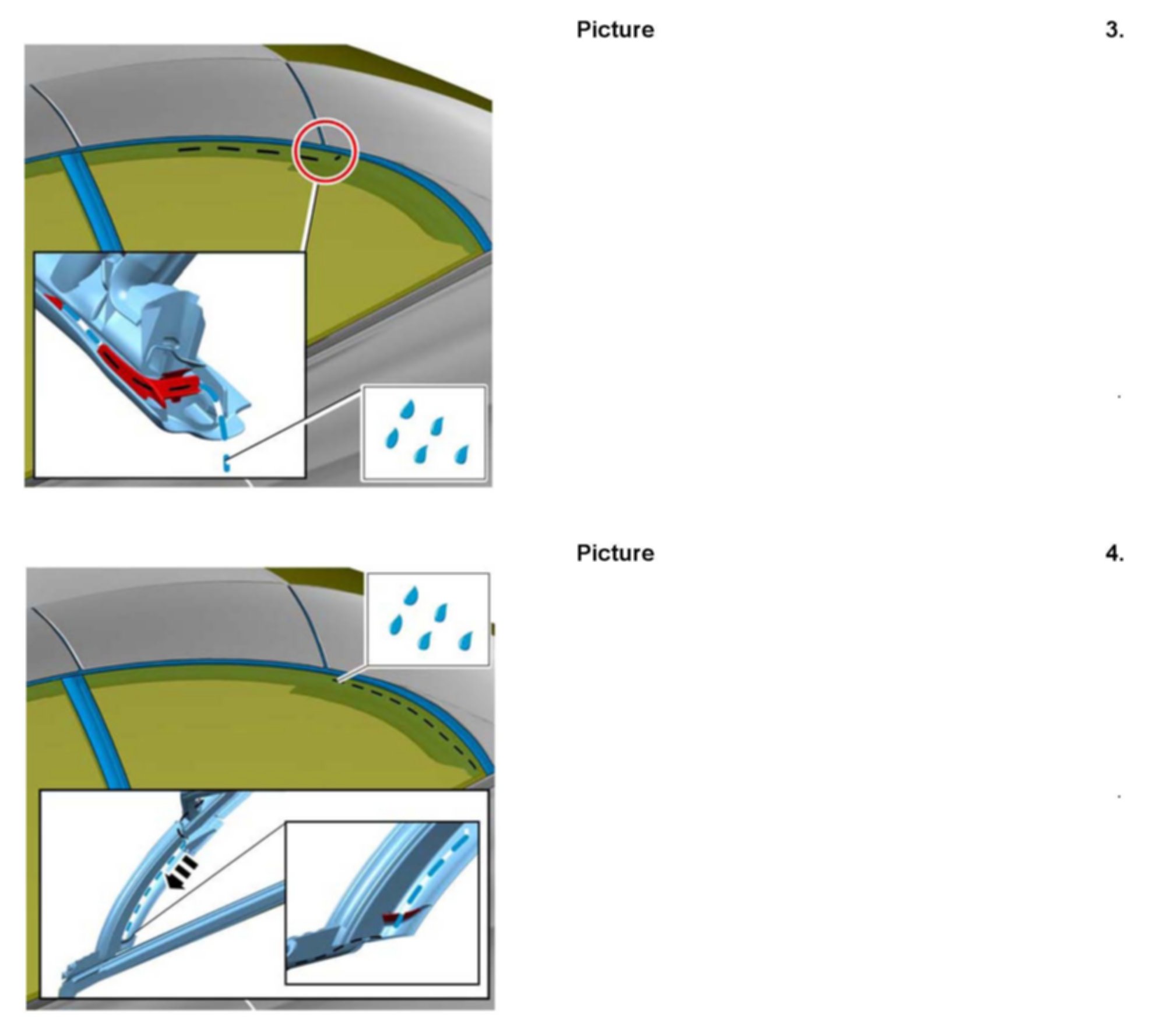

Pic 3."Rear view "of the middle roof seal. Correct management of the water in joint between middle and rear seal.
Pic 4. "View from rear seat". Correct management of the water in the rear roof seal.

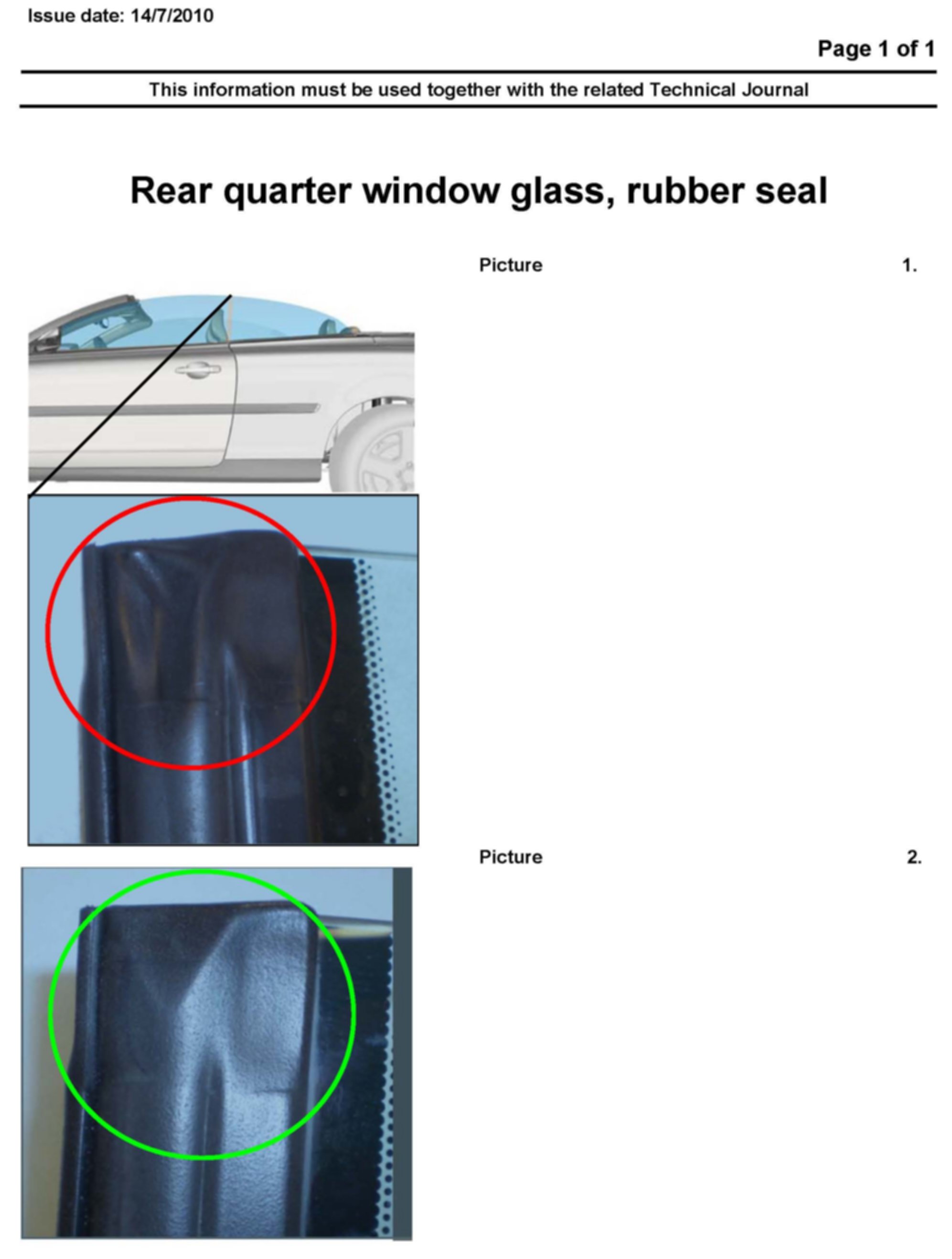

TJ rear quarter window glass
Pic 1. Top of rubber seal, rear side window glass. Deformed-NOK
Pic 2. New rear side window glass. Rubber seal OK

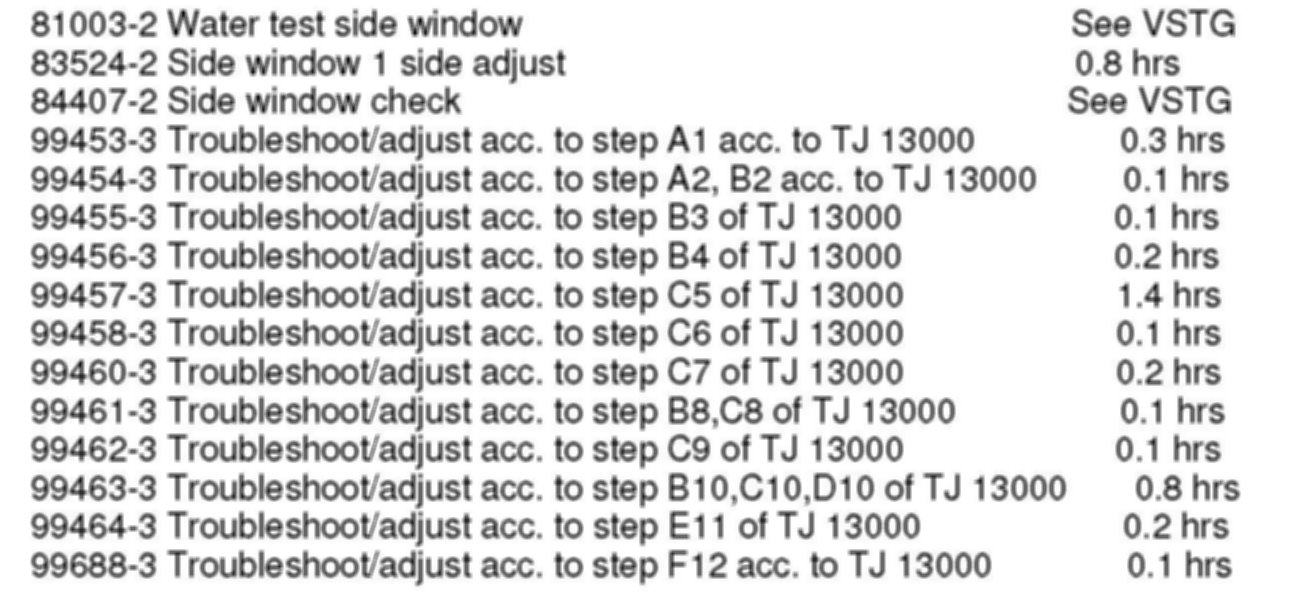

VSTG OPERATION NUMBER
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
Car Customer Service
Attachment to TJ 13000 - Pictures
