Collision Protection Unit From Behind Front Seat

Collision Protection Unit From Behind Front Seat

Special tools:
951 2943

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing components





Remove:
- the front seat as described in Front seat
- the side panel as described in Side panel front seat.
Detach the belt buckle as described in Front safety belt buckle.
Detach the backrest upholstery at the bottom edge. See: Front seat backrest.

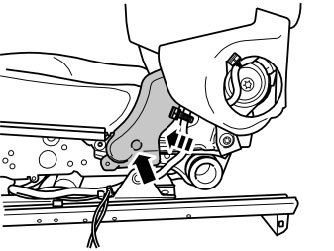

Remove the screw of the panel.

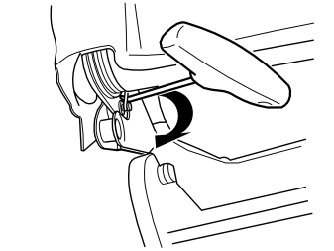

Use a hook to lift the spring from the stop.

HINT: Use: 951 2943.

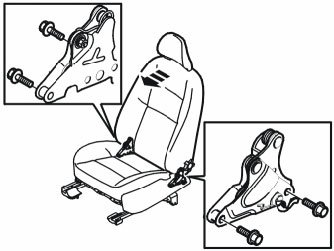

Remove the 4 M10 screws.
Lay down the backrest cushion on the seat cushion.

Removing the whiplash unit

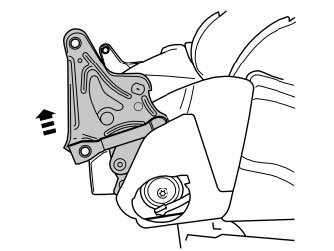

Pull up the whiplash unit.

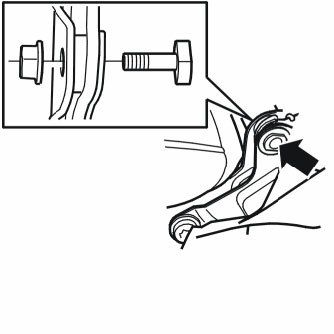

Remove:
- the star washer
- the spring
- the lock nut (for tightening torque, see Tightening torque )
- the shaft.

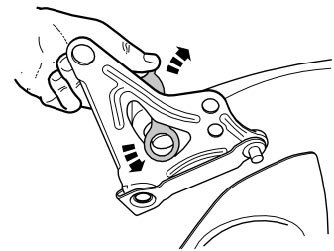

Open the whiplash unit.

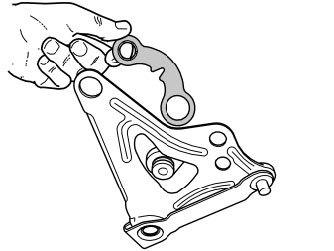

Unhook the whiplash element.

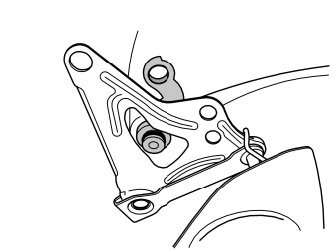

NOTE: Note the position of the whiplash element and bushing. It is imperative that they are installed correctly.

Replacing components

Replace:
- the whiplash element
- the O-ring
- the rubber bushing
- the lock nut
- the shaft
- the star washer
- the spring

Installation

NOTE: For tightening torques, see: Specifications Specifications.

Install in the reverse order.
