Electric Motor Height Adjustment

Electric motor height adjustment

Operation number: 85222-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Remove front seat. Refer to: Front seat Front Seat.

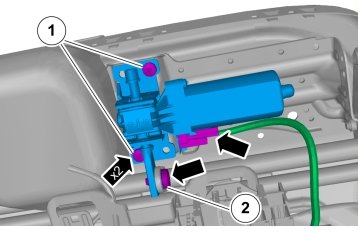

Remove the following items:
1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm

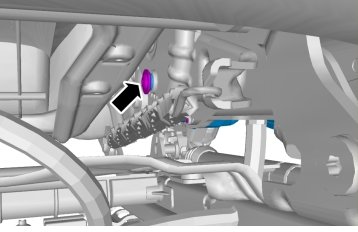

Remove side panel Refer to: Side panel front seat Side Panel Front Seat




Torque: M5, 5 Nm




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure
