Checking the Locking Storage Compartments
Checking the locking storage compartments
Checking the locking storage compartments

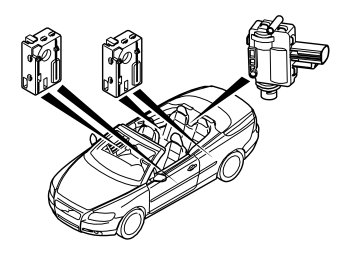

The locking storage compartments are connected directly to the convertible roof module (CRM), which also controls them.
Check the wiring harness between the convertible roof module (CRM) #D2 (#A32) and the electric motor (#2). Check for an open-circuit, short-circuit to voltage and short-circuit to ground.
Check the wiring harness between the convertible roof module (CRM) #D13 (#A43) and the electric motor (#1). Check for an open-circuit, a short-circuit to voltage and a short-circuit to ground.
Note! Use the associated wiring diagram when fault tracing the locking storage compartments.
Other information
- Connecting the breakout box Connecting the Breakout Box, Convertible Roof Module (CRM)
- Checking wiring and terminals Checking Wiring and Terminals
Continue - Verification of electric motor
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking the locking storage compartments
-------------------------------------------------
Verification of electric motor
Verification of electric motor
Verification of electric motor
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
Check the operation of the locking storage compartments by locking them and then unlocking them again.
Are all locking storage compartments working?
Yes - FAULT FOUND
No - FAULT-TRACING FAILED
------------------------
FAULT-TRACING FAILED - Fault-tracing information
FAULT FOUND - FAULT FOUND
-------------------------------------------------
