Part 3
Checking electrically convertible hardtop (Continued)
Checking Hall sensor 18
Check that the hall sensor is adequately secured. Check that the hardtop has not been damaged in such a way that the part that the hall sensor is to detect does not come within the detection range.
Check that the hall sensor is working by placing a nut or screw of some magnetic material, e.g., iron, within its detection range which is 1.5 mm. Aluminium or stainless steel does not work. Check at the same time that the hall sensor's read-out value changes.
Check the connector. Check for contact resistance. Check for oxidation. Check for loose connections. If no malfunction was found, try replacing hall sensor.
Other information
- Signal specification Signal Specification, Convertible Roof Module (CRM)
- Checking wiring and terminals Checking Wiring and Terminals
- Covertible Top Position Switch Covertible Top Position Switch
- For information about the cable routing, see the relevant Wiring Diagram.
OK - Verification
-------------------------------------------------
Checking Hall sensor 19
Check that the hall sensor is adequately secured. Check that the hardtop has not been damaged in such a way that the part that the hall sensor is to detect does not come within the detection range.
Check that the hall sensor is working by placing a nut or screw of some magnetic material, e.g., iron, within its detection range which is 1.5 mm. Aluminium or stainless steel does not work. Check at the same time that the hall sensor's read-out value changes.
Check the connector. Check for contact resistance. Check for oxidation. Check for loose connections. If no malfunction was found, try replacing hall sensor.
Other information
- Signal specification Signal Specification, Convertible Roof Module (CRM)
- Checking wiring and terminals Checking Wiring and Terminals
- Covertible Top Position Switch Covertible Top Position Switch
- For information about the cable routing, see the relevant Wiring Diagram.
OK - Verification
-------------------------------------------------

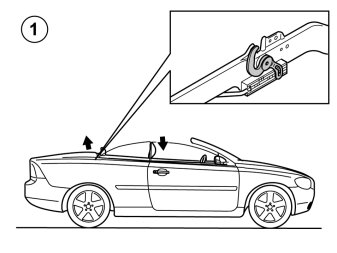

Image 1. Closing of hardtop
The following takes place in this stage of sunroof operation:
Windows shall be lowered a few centimeters and the trunk lid shall be unlocked at the leading edge.
During the roof operation procedure that has not started, the following applies:
The trunk lid released at the leading edge and is lifted up completely. The mechanical catch that holds the hardtop in the luggage compartment releases.
Feel with your hand if the trunk lid is locked at the leading edge near the rear window. If it is not locked it can be lifted a few centimeters by hand.
Was the trunk lid locked at the leading edge?
Yes - Trunk lid locked.
No - The trunk lid is not locked.
-------------------------------------------------
The trunk lid is not locked.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------

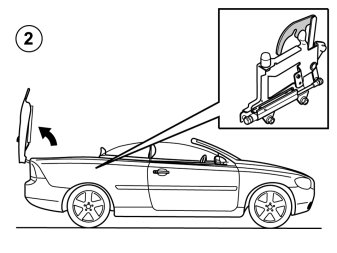

Picture 2. Closing of hardtop
The following takes place in this stage of sunroof operation:
The trunk lid released at the leading edge and is lifted up completely. The mechanical catch that holds the hardtop in the luggage compartment releases.
During the roof operation procedure that has not started, the following applies:
The hardtop is lifted out of the luggage compartment.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------

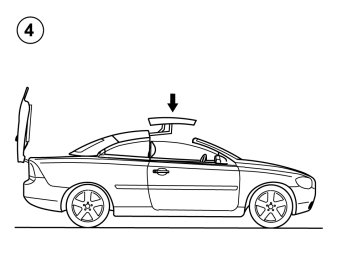

Picture 4. Closing of hardtop
The following takes place in this stage of sunroof operation:
The hardtop's rear and middle part come into place. The hardtop's front part stands straight up.
During the roof operation procedure that has not started, the following applies:
The hardtop's front part comes into place. The hardtop's middle part is locked with the hardtop's rear and front part.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------

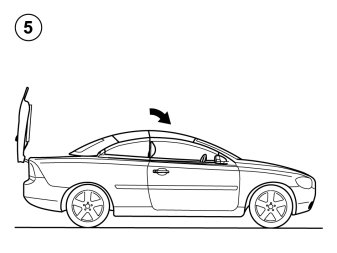

Picture 5. Closing of hardtop
The following takes place in this stage of sunroof operation:
The hardtop's front part comes into place. The hardtop's middle part is locked with the hardtop's rear and front part.
During the roof operation procedure that has not started, the following applies:
The tonneau cover is retracted.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------

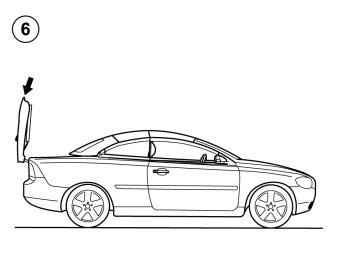

Picture 6. Closing of hardtop
The following takes place in this stage of sunroof operation:
The tonneau cover is retracted.
During the roof operation procedure that has not started, the following applies:
The trunk lid is lowered. The hardtop is locked front and rear.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------
Trunk lid locked.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------
Trunk lid locked.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------
The trunk lid is not locked.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------

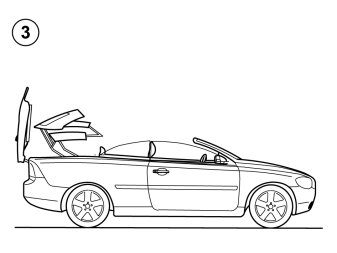

Picture 3. Closing of hardtop
The following takes place in this stage of sunroof operation:
The hardtop is lifted out of the luggage compartment.
During the roof operation procedure that has not started, the following applies:
The hardtop's rear and middle part come into place. The hardtop's front part stands straight up.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
1 - Checking Hall sensor 1
3 - Checking Hall sensor 3
5 - Checking Hall sensor 5
6 - Checking Hall sensor 6
7 - Checking Hall sensor 7
9 - Checking Hall sensor 9
10 - Checking Hall sensor 10
11 - Checking Hall sensor 11
12 - Checking Hall sensor 12
13 - Checking Hall sensor 13
15 - Checking Hall sensor 15
16 - Checking Hall sensor 16
18 - Checking Hall sensor 18
19 - Checking Hall sensor 19
2 - rear hardtop part
17 - front hardtop part
OK - Resetting of convertible hardtop
-------------------------------------------------
