Programming and Relearning

Roof calibration

Note! Some variation in the illustrations may occur, but the essential information is always correct.




The roof is calibrated first when up and then when down.
In order for calibration to be possible, Hall sensor 6 must be active.
The sensor is activated in the position illustrated.

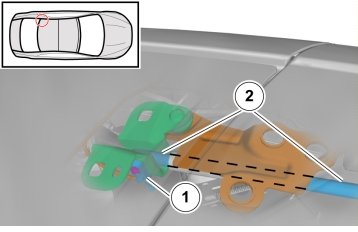

Hall sensor 6 (1 in figure) is activated with the lock rod (2).

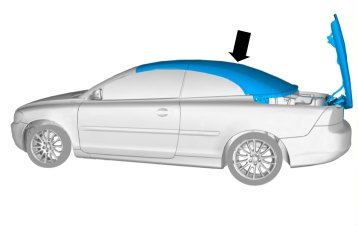

Move the roof to the position illustrated. Refer to: Convertible Top Alternative Closing Procedure Convertible Top Alternative Closing Procedure.




Activate Hall sensor 6 by restoring hydraulic pressure. Refer to: Convertible Top Hydraulic System Pressure Relief Convertible Top Hydraulic System Pressure Relief.
Restart the CRM control module.

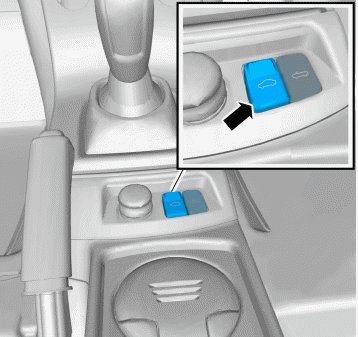

Hold the brake pedal depressed. Close the roof with the button in the vehicle. The roof operates until it is in the locked position and Hall sensor 6 is active.

Make sure Hall sensor 6 is active. See VIDA, vehicle communication, CRM, parameters, sensor components.
