Signal Specification, Convertible Roof Module (CRM)

Signal specification

General

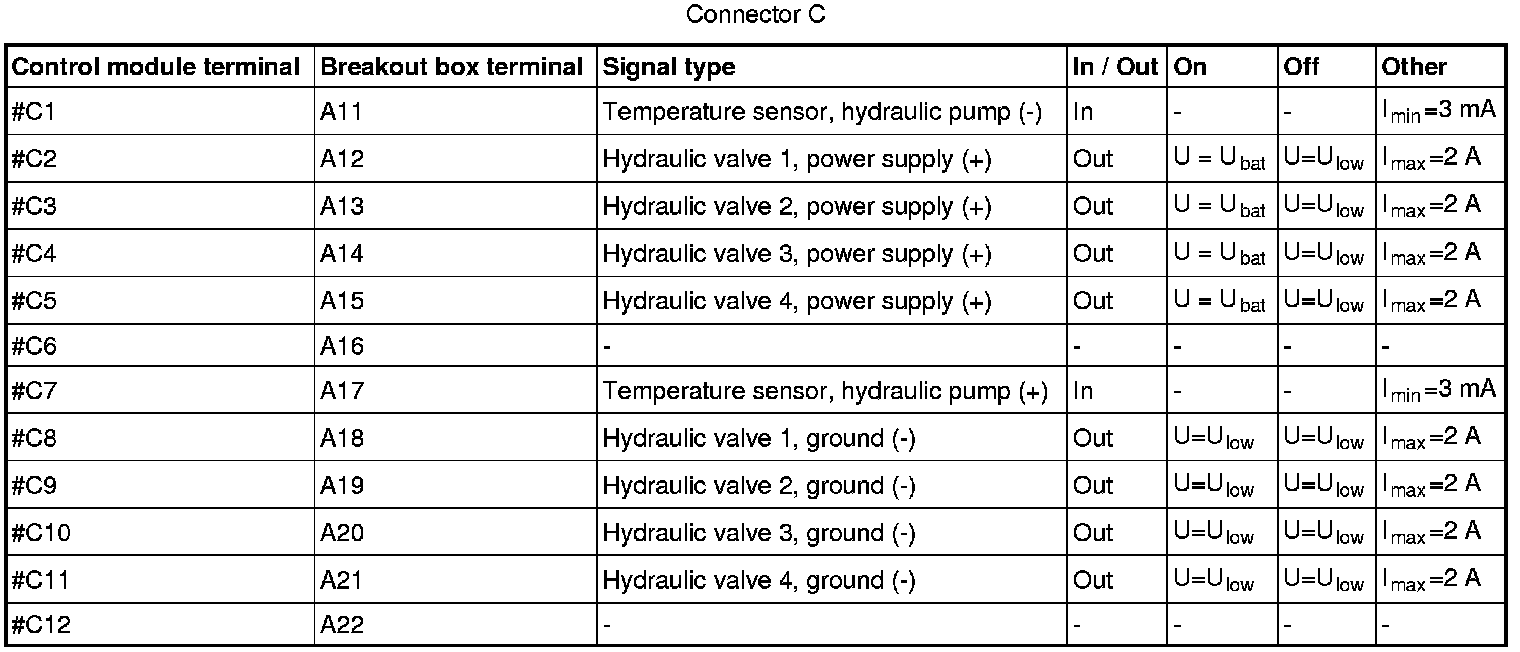

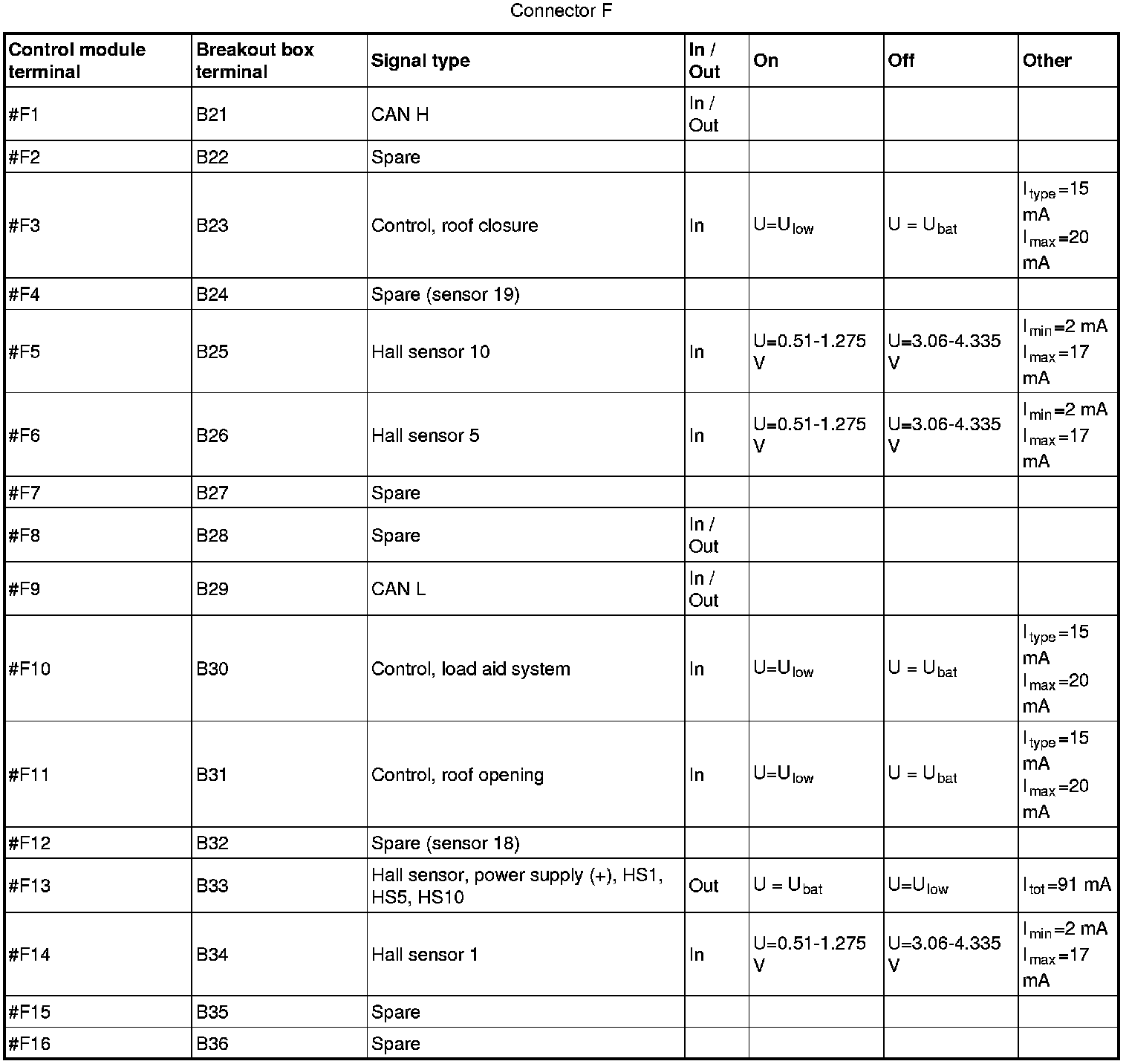

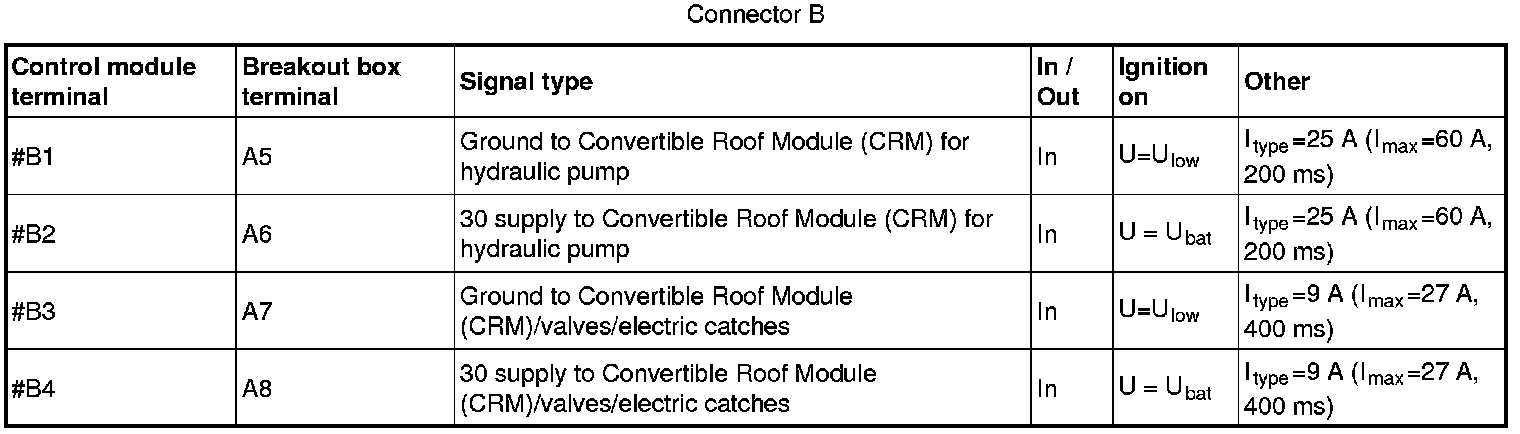

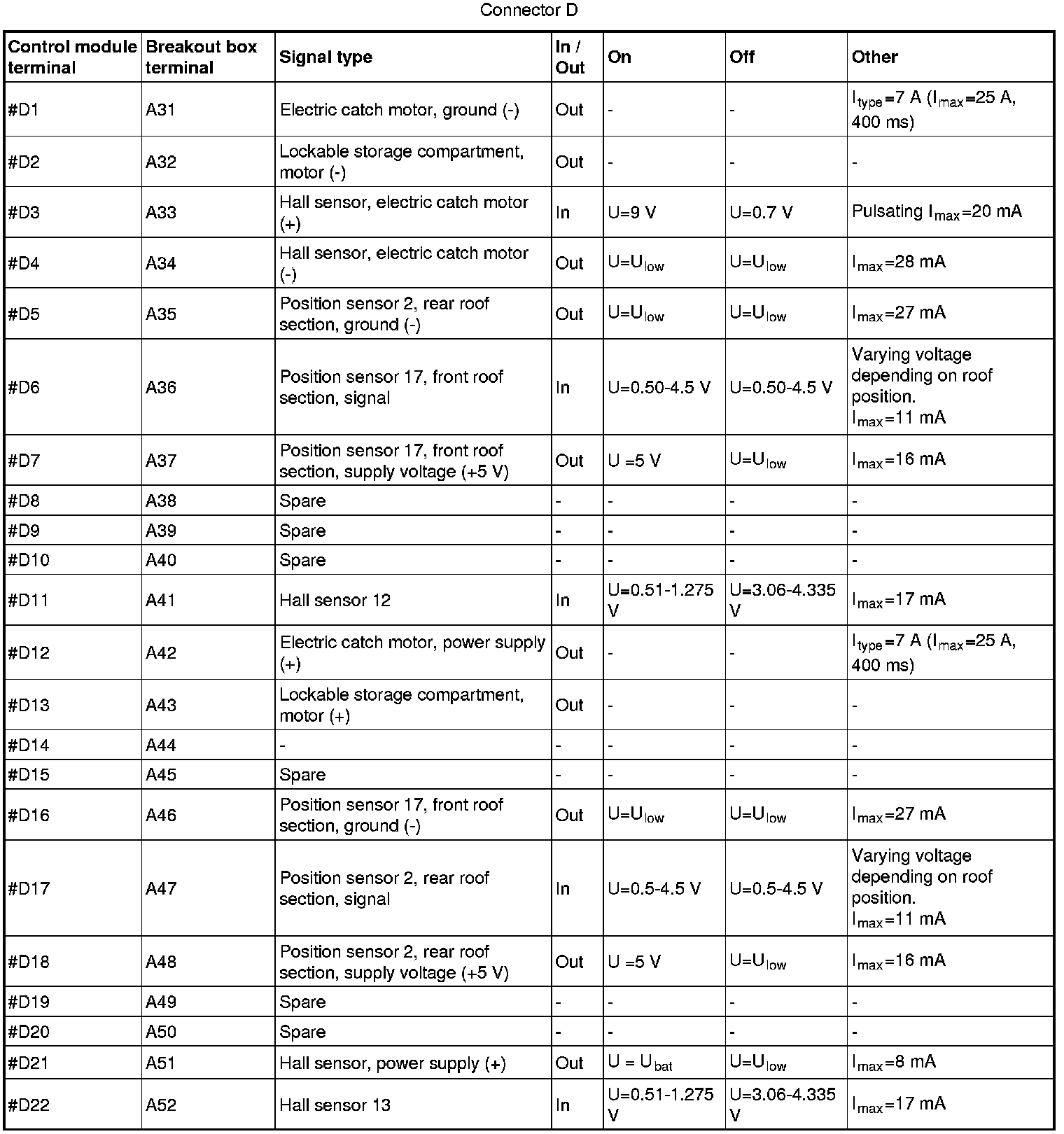

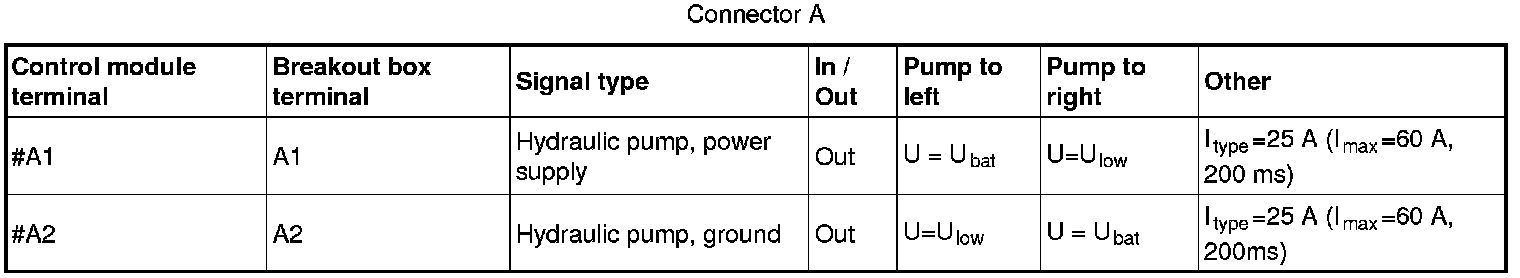

All values listed below should be measured between the respective connection in column 1 (control module connection) and connection B1 (#A5).
