Front Roof Panel Lock

Front roof panel lock

Note! Some variation in the illustrations may occur, but the essential information is always correct.

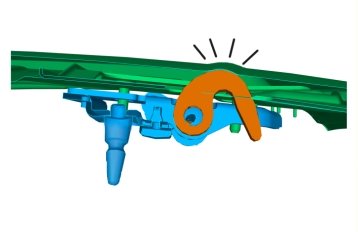

Check the front roof panel lock





Caution! Note that an incorrectly adjusted lock can cause damage.

Always check by manually locking after carrying out work.

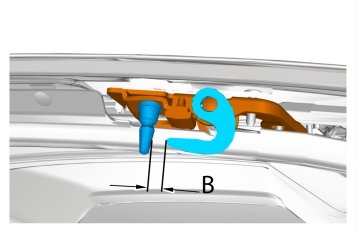

Check the distance (B), see image.
The distances may differ by a maximum of 0.5 mm between the left and right hand sides.
When checking the dimension (B) may be between 7.2-9.5 mm.
After carrying out work, the dimension must be between 8-8.5 mm.




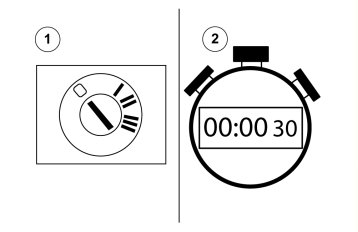

Reset the locks before operating the roof.

Adjusting the front roof panel lock

Caution! Note that an incorrectly adjusted lock can cause damage.

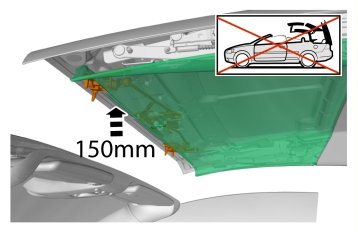

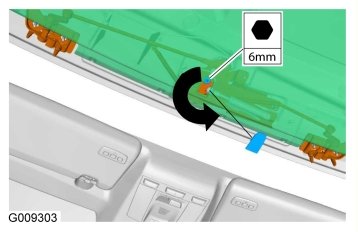

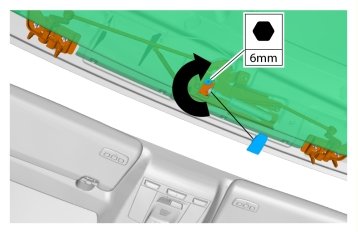

Adjusting the lock rods. The dimension (B) must be between 8-8.5 mm.

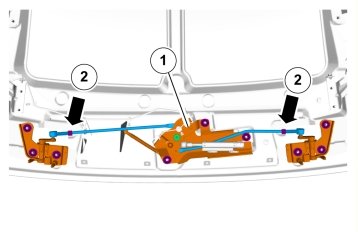

Always screw the same amount on both rods (2) except when making smaller adjustments where you can screw one turn on one rod and compensate with the lock unit (1).
The distances may differ by a maximum of 0.5 mm between the left and right hand sides. Compensate by moving the lock unit (1).
Always check by manually locking after carrying out work.
