Service Roof System

Service roof system

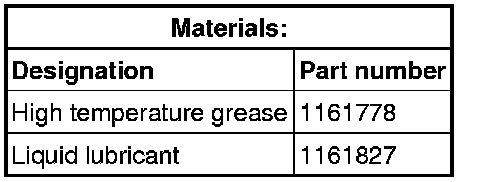

Note! Some variation in the illustrations may occur, but the essential information is always correct.

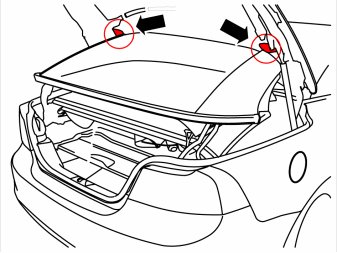

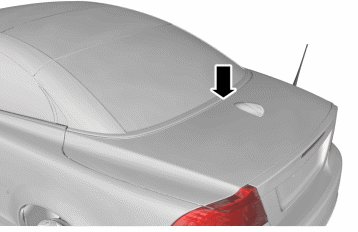

Remove the shim if in position. Check functionality by operating the roof 3 cycles.

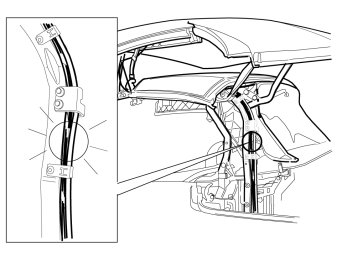

Check whether the wires are damaged

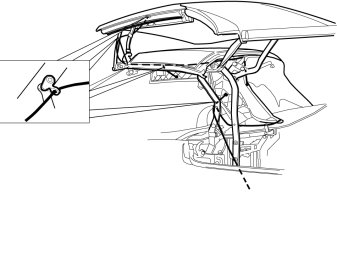

Check whether the cable harnesses are damaged

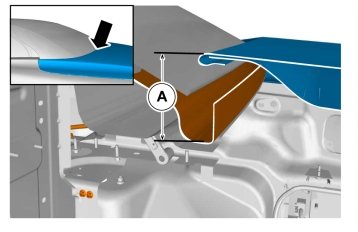

A = 20 mm

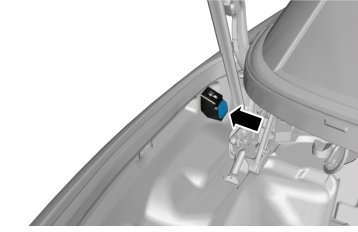

Check the rubber stops are located correctly.




Check the position and for any damage.

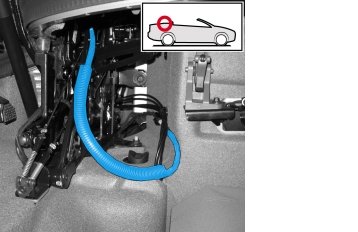

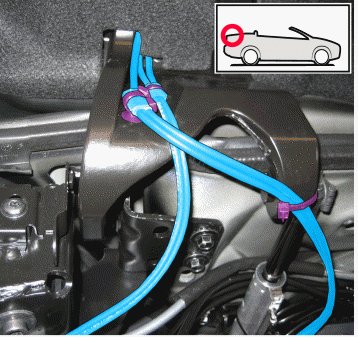

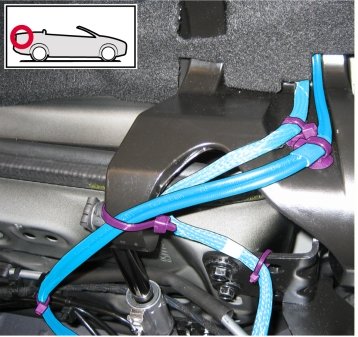

Check that the cables and hoses are secured and undamaged.








Check that they are not damaged.

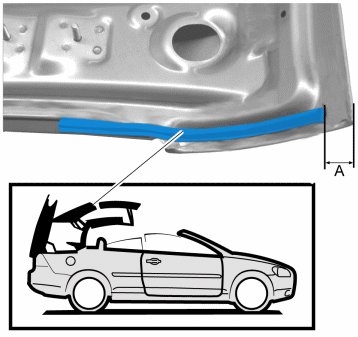

A = max 38 mm

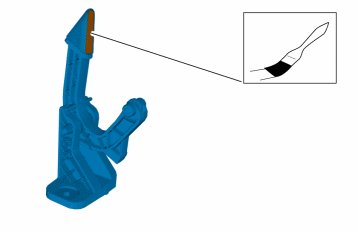

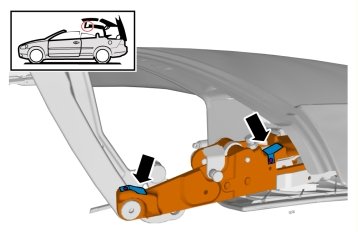

Make sure that the entire roller is lubricated.

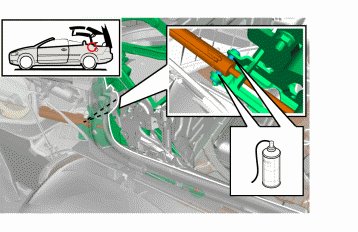

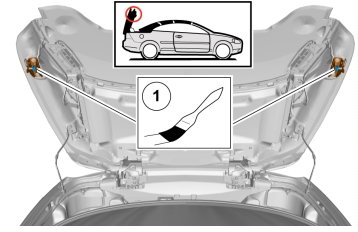

Use: High temperature grease, 1161778

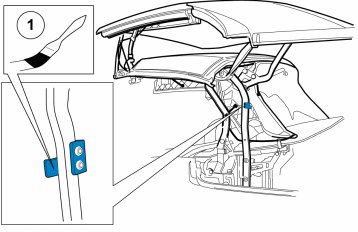

Use: High temperature grease, 1161778









Use: High temperature grease, 1161778

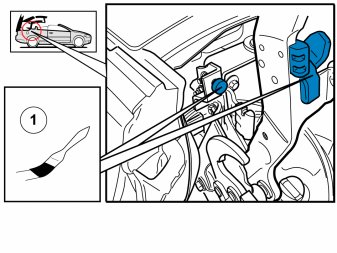

Use: High temperature grease, 1161778

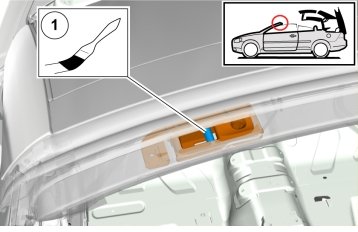

Use: High temperature grease, 1161778

Only applies to chassis number -000929





Use: Liquid lubricant, 1161827
