Inner Rear View Mirror

Inner rear view mirror

Operation number: 88210-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

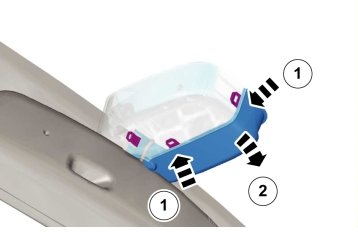

Removal









Note! Only twist the mounting.

Installation

To install, reverse the removal procedure

Note! If the mirror has a compass, the relevant geographical area must be set. Calibration must then be carried out.

Calibrate the compass. Refer to: Compass Calibration Testing and Inspection.
