Mirrors: Description and Operation

Mirrors, Auto Dimming With Compass











INTRODUCTION

- NOTE: Read through the whole installation instruction before starting the work.

Mirrors, auto dimming with compass

NOTE: Some steps in these installation instructions are presented with illustration only.

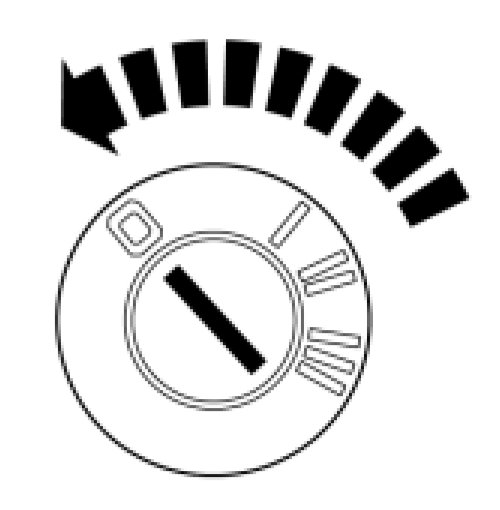

- Turn the ignition key to position 0.

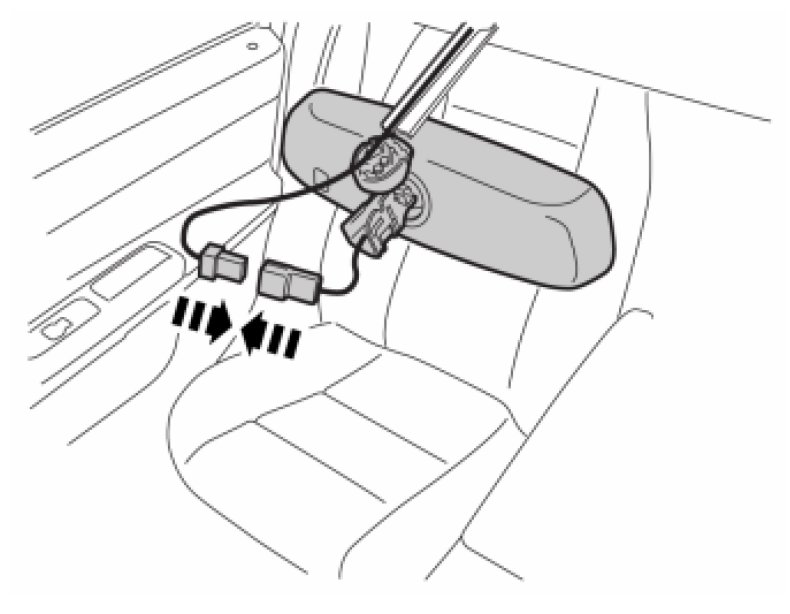

NOTE: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Image A applies to older cars





Illustration B applies to newer cars

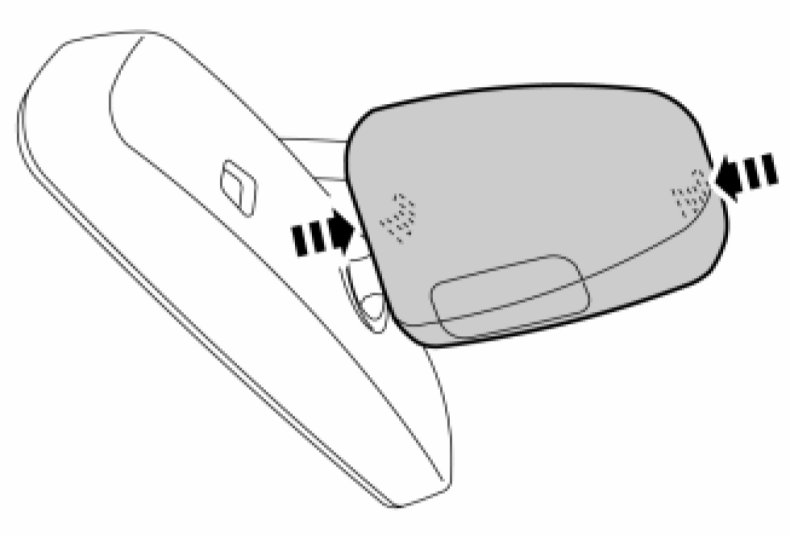

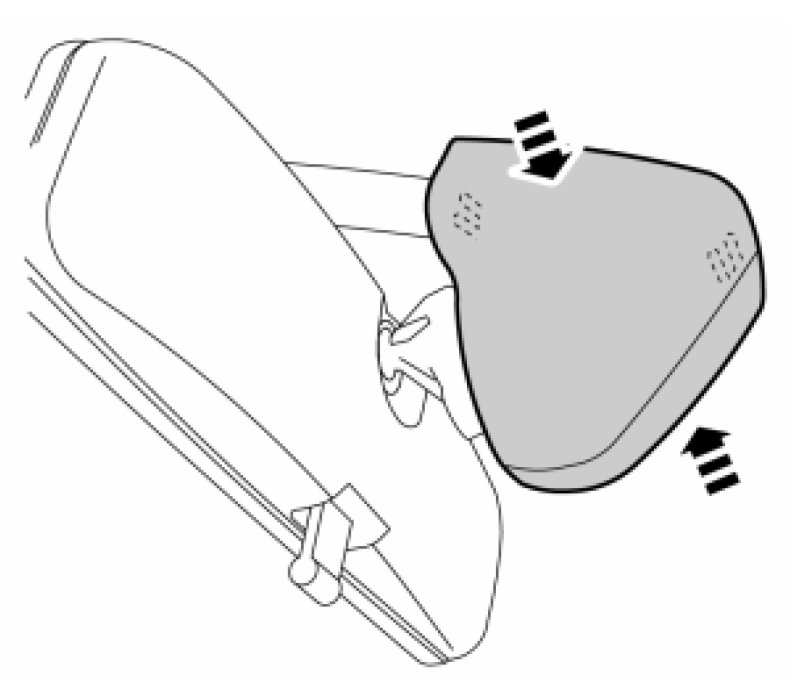

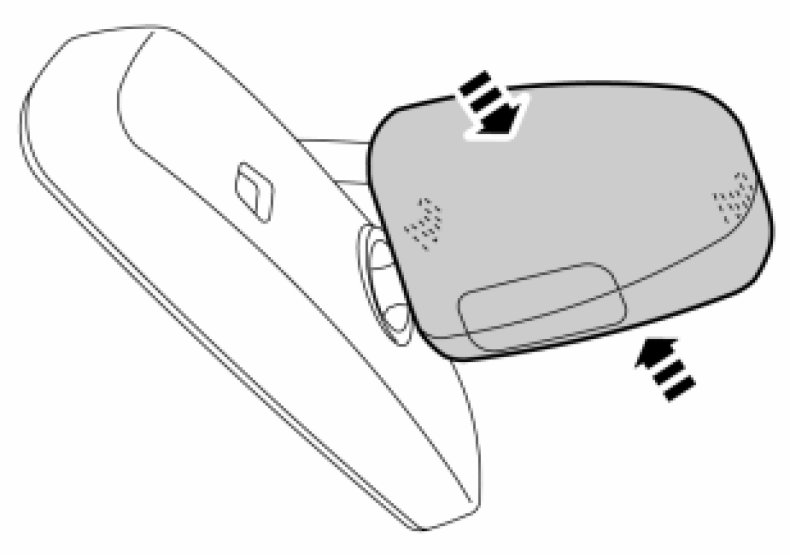

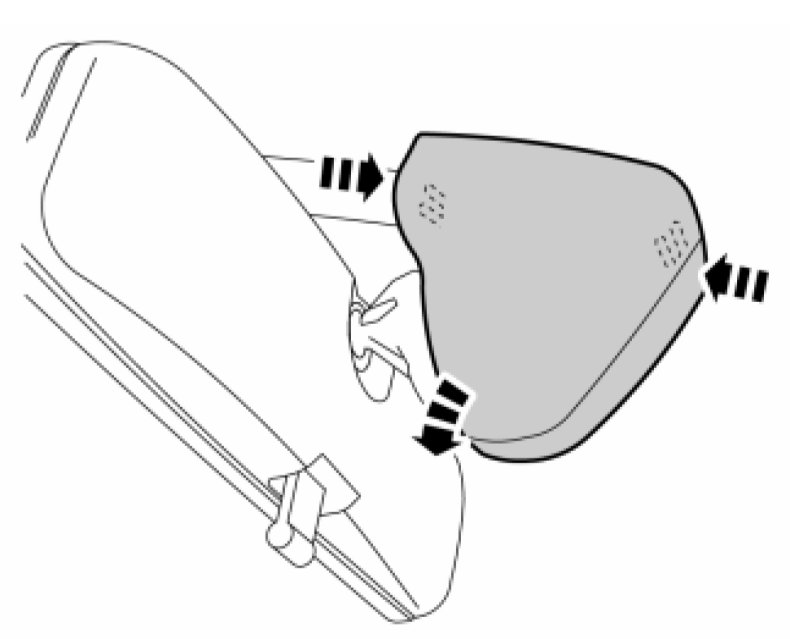

- Press the front edge and the rear edge of the cover, then carefully pull both sides loose from each other.

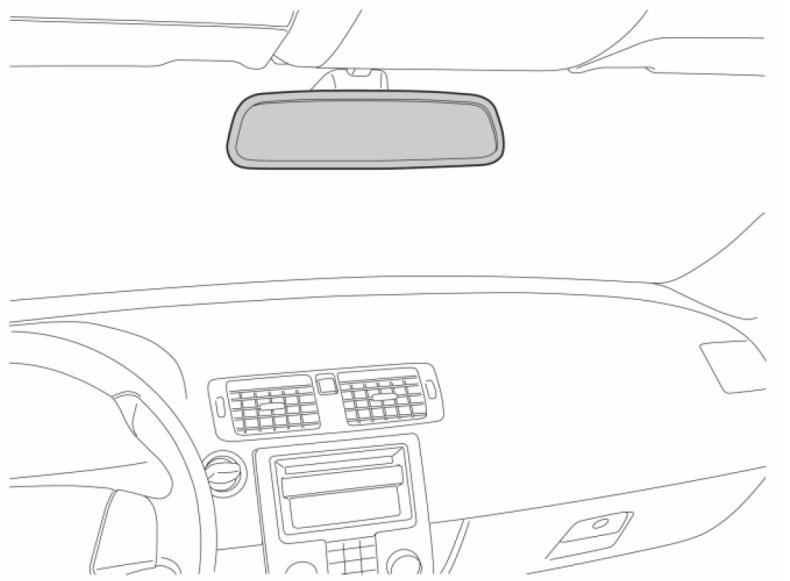

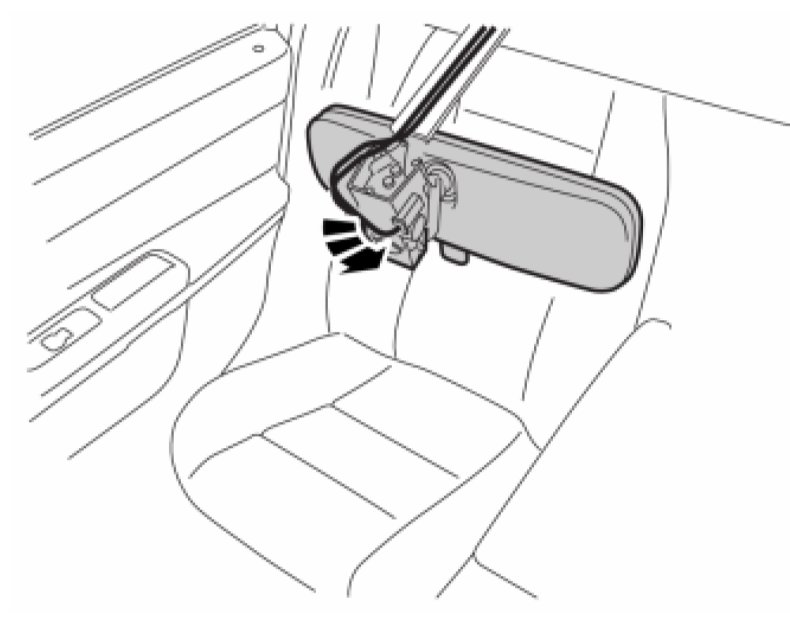

- Remove the rearview mirror from the windshield by turning it clockwise or anticlockwise until it releases from the mounting.

NOTE: Grip the mounting (not the mirror), and turn.

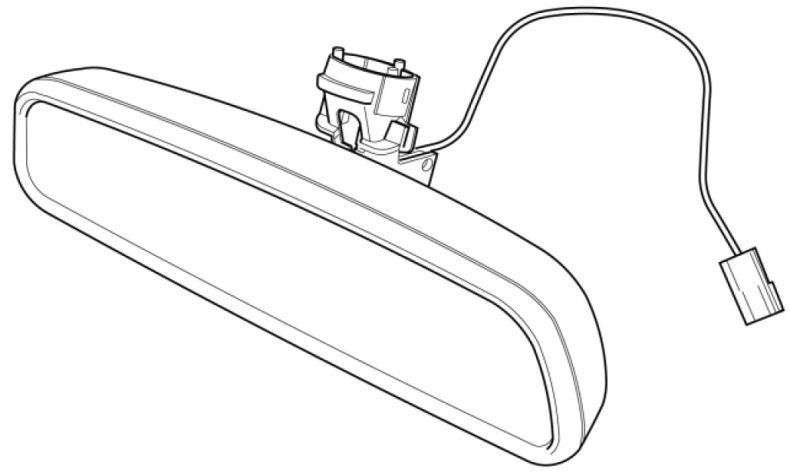

Place the mirror to one side, there is a new one in the kit.
