Upholstery Head Restraint Front

Upholstery Head Restraint Front

NOTE:
- The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.
- To carry out this work a zip fastener is required. This is not included in the upholstery but is ordered separately. 6 mm zip fastener part number: 3533976 is used and in some cases zip fastener 4 mm, part number: 9459316

Removal

Removing upholstery





Press down the 2 catches in the underside of the protective pad. Press through the upholstery.
Lift the head restraint upwards while the catches are pressed in.
Remove the head restraint.

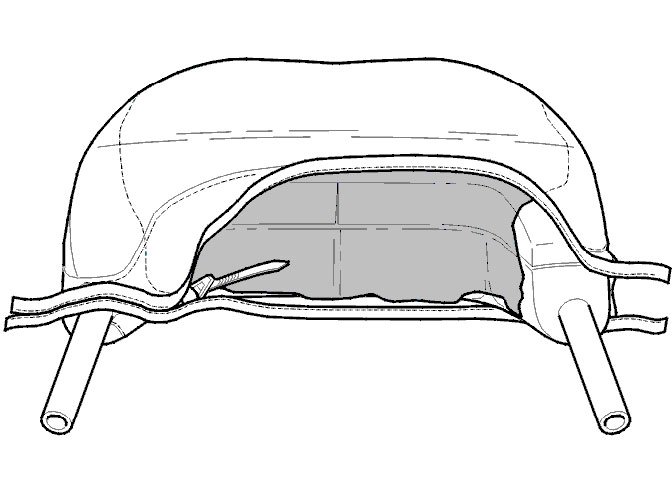

Cut the upholstery at the zip fastener.
Remove the upholstery.

Installation

Installing upholstery





Install the upholstery.

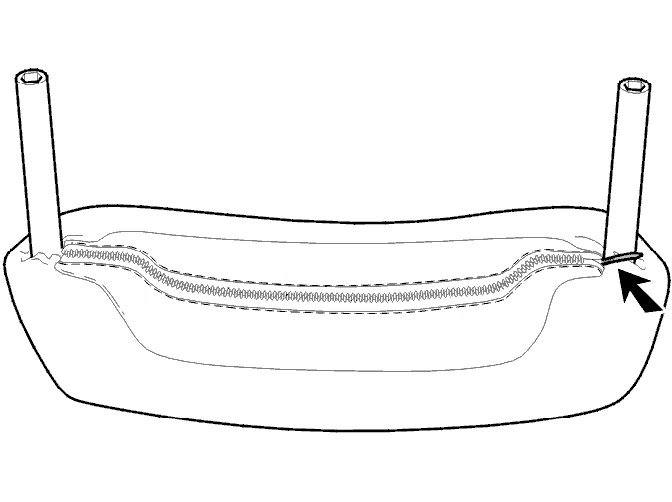

Close the zip fastener.

NOTE: Ensure that all seams are correctly positioned and the padding is not kinked under the upholstery.

Press down the head restraint until the catches engage.

NOTE: Lift in the head restraint. Check that it cannot be moved upwards.
