Ski Bag (Interior)

Ski bag (interior)








Ski bag (interior)

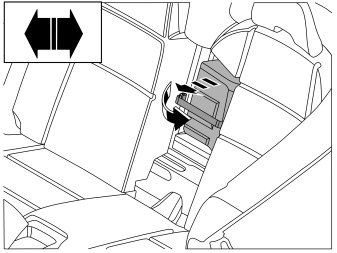

- Work from inside the car. Remove the centre section of the backrest by pulling the opening handle, then pull straight up so that it detaches from the lower bracket.




- Detach the retaining strap for the puncture repair kit's compressor if fitted. Remove the compressor.




- Open the boot lid/tailgate.




- Lift up the cargo compartment partition.




- Squeeze the lock together on the hatch next to the passenger compartment and open the hatch.

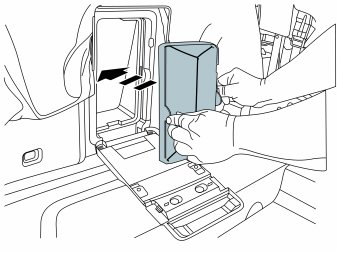

- Insert the ski bag in the opening.

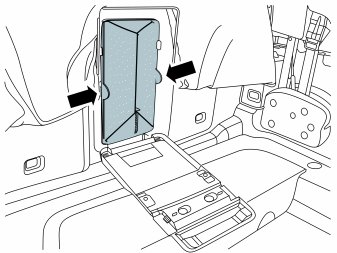

- Press at the points indicated until a click is heard that confirms attachment into the frame.




- Open the catches on the straps.




- Pull the ski bag to its full length.

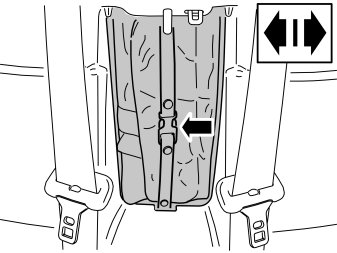

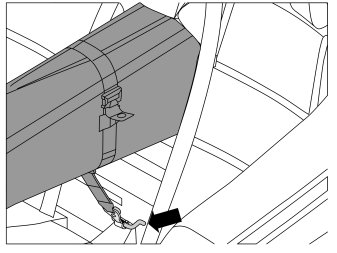

- Secure the ski bag's spring hook into the bracket.
