Strut Tower Brace: Service and Repair

Stabilizer bar, replacing

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

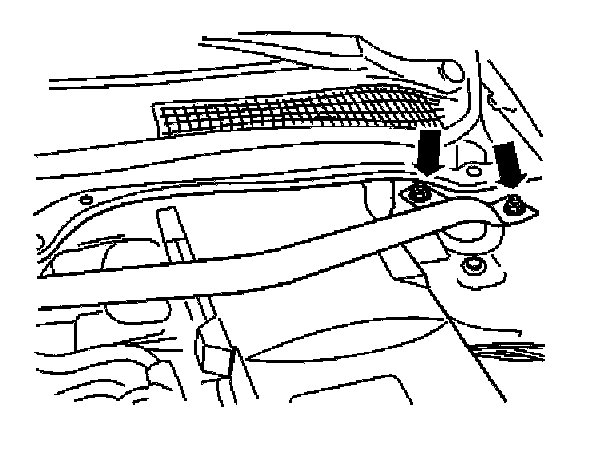

Removing the stabilizer bar
Remove:





- the 2 x nuts on both sides
- the stabilizer bar.

Installation

Note: For tightening torques, See: Specifications.

Installing the stabilizer bar
Install:
- the stabilizer bar
- the 2 x M8 nuts on both sides.
