License Plate Frame: Service and Repair

License Plate Panel

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Note! Mark the location to facilitate installation.

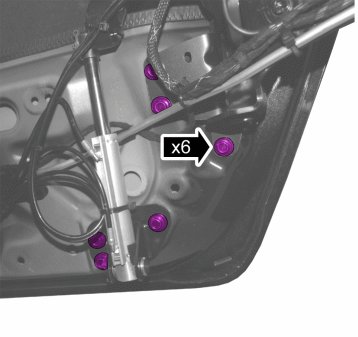

Remove the inner panel. Panel luggage compartment lid lower

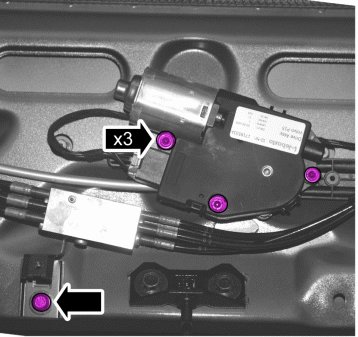

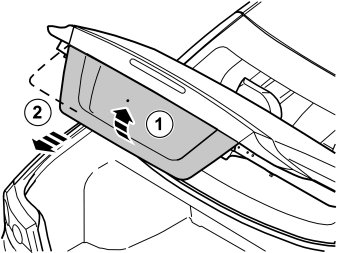

Remove the cable mounting for the rear lock.









Installation

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

Install in the reverse order.
Adjust the trunk lid as described in Luggage Compartment Lid Service and Repair.Rustproof ass described in Rustproofing .
