Cable Cargo Compartment Locking Front Edge

Cable cargo compartment locking front edge

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the front lock cable
Remove the electric motor. See: Service and Repair.

Detach and move to one side.
- the hydraulic cylinders. See: Luggage Compartment Lid Lift Cylinder .

Note! There is no need to detach the hydraulic hoses from the cylinder.

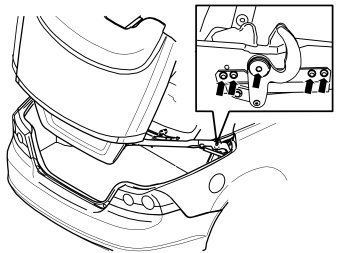

Set up the trunk lid as illustrated using the lock cylinder in the cargo compartment.

Remove:
- the 1 x M8 screw each side
- the front catch of the trunk lid
- the 4 M4 screws on each side
Move the wire and catch from the hinge.

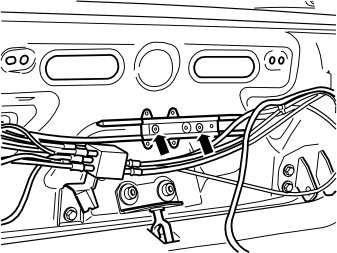

Remove the 2 M5 screws.
Detach the cable from the cable harness and hydraulic hoses.

Note! Be careful of the retainers.

Angle out the cable from the cargo compartment.

Installation

Installing the cable of the front catch
Ensure that the catch is in its rearmost position.

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

Install in the reverse order.
