Trunk / Liftgate: Service and Repair

Luggage Compartment Lid

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Adjustment

Trunk lid clearance, adjusting

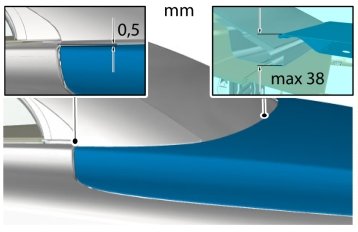

Adjust the trunk lid's clearance acc. to: Doors and hatches .

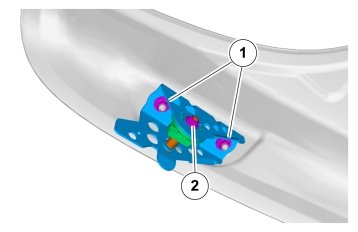

Adjust the trunk lid at the front edge using the lock brace:
1. adjusts the trunk lid fore-aft
2. adjusts the trunk lid vertically.






Adjust the trunk lid:
- sideways with the lock in the backpiece
- vertically with the lock brace in the trunk lid.




Adjust the trunk lid's support to the right height.

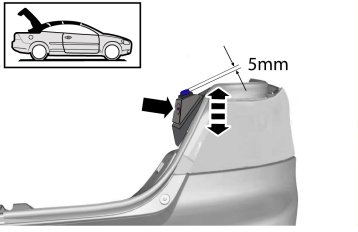

Apply playdough or similar on the support (1).




Carefully close the trunk lid to the first stage in the lock.
The playdough shall be 5 mm thick when the support is at the right position.
