Power Trunk / Liftgate Lock Actuator: Service and Repair

Lock motor tailgate

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

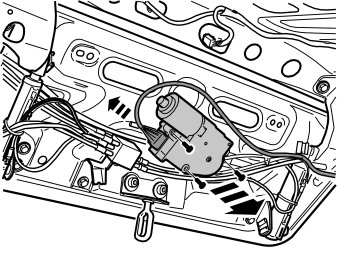

Removing the electric motor





Remove:
- the panel on the trunk lid. See Panel luggage compartment lid lower
- the connector
- the 3 M5 screws.

Installation

Installing the electric motor

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

To install, reverse the removal procedure.
