Fuel Door: Service and Repair

Fuel tank filler cover

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

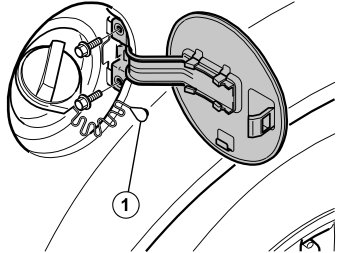

Removing the fuel filler flap
Open the fuel filler flap.





Remove:
- the 2 M6 screws
- the fuel filler flap retainer (1).
Move the fuel filler flap back and then out.

Installation

Installing the fuel filler flap

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

Install the components in reverse order.
