Fuel Door Release Actuator: Service and Repair

Door latch fuel filler door

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the electric motor




Open the fuel filler flap.

Remove:
- the side panel in the cargo compartment as described in Side panel loadspace Side Panel Loadspace

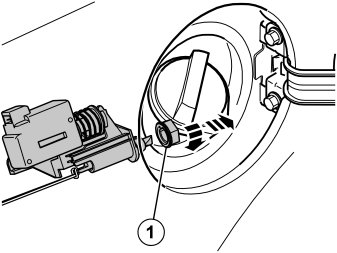

- the plastic nut, x1.




Move aside the insulation.

Remove:

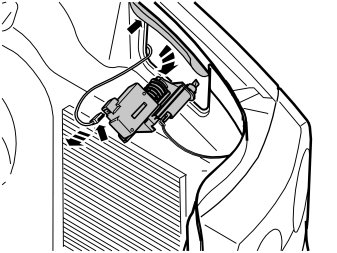

- the electric motor through the opening
- the connector, x1.

Installation

Installing the electric motor
Install the components in reverse order.

Note! Make sure that the emergency opening cord lies at the tail light.

Hint: If emergency opening the fuel filler flap, remove the cover in front of the tail light.
Find the emergency opening cord and pull it toward the rear of the vehicle.
