Description of Parameters

Description of parameters

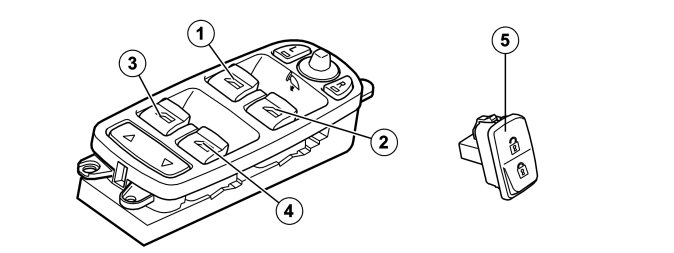

Note! The illustration shows the control panel for the driver door in a left-hand drive car. The control panel and numbering in a right-hand drive car is the mirror image of left-hand drive.




1. Button for operating driver's door window.
2. Button for operating passenger door window.
3. Button for operating rear door window on driver's side.
4. Button for operating rear door window on passenger side.
5. Button for locking and unlocking central locking system.
Parameters, status

Front driver's side, window button up
Readout of whether the control module perceives window button 1 as active or inactive in the up direction.

Front driver's side, window button down
Readout of whether the control module perceives window button 1 as active or inactive in the down direction.

Front passenger side, window button up
Readout of whether the control module perceives window button 2 as active or inactive in the up direction.

Front passenger side, window button down
Readout of whether the control module perceives window button 2 as active or inactive in the down direction.

Rear driver's side, window button up
Readout of whether the control module perceives window button 3 as active or inactive in the up direction.

Rear driver's side, window button down
Readout of whether the control module perceives window button 3 as active or inactive in the down direction.

Rear passenger side, window button up
Readout of whether the control module perceives window button 4 as active or inactive in the up direction.

Rear passenger side, window button down
Readout of whether the control module perceives window button 4 as active or inactive in the down direction.

Central locking switch, lock
Readout of whether the control module perceives the driver's door central locking button as active or inactive for locking.

Central locking switch, unlock
Readout of whether the control module perceives the driver's door central locking button as active or inactive for unlocking.

Window motor, up
Readout of whether the control module perceives the driver's door window motor as active or inactive in the up direction.

Window motor, down
Readout of whether the control module perceives the driver's door window motor as active or inactive in the down direction.

Lock motor M1
Readout of whether the control module perceives driver's door lock motor M1 as active or inactive. Lock motor M1 is active when locking the central locking system.

Lock motor M2
Readout of whether the control module perceives driver's door lock motor M2 as active or inactive. Lock motor M2 is active when unlocking the central locking system and/or deadlocks.

Lock motor M3
Readout of whether the control module perceives driver's door lock motor M3 as active or inactive. Lock motor M3 is active when locking deadlocks.

Mirror motor MUD (Mirror Up and Down)
Readout of whether the control module perceives driver's door mirror motor MUD (Mirror Up and Down) as active or inactive.

Mirror motor MLR (Mirror Left and Right)
Readout of whether the control module perceives driver's door mirror motor MLR (Mirror Left and Right) as active or inactive.

Mirror Motor MC (Mirror Common)
Readout of whether the control module perceives driver's door mirror motor MC (Mirror Common) as active or inactive.

Mirror motor MF (Mirror Fold)
Readout of whether the control module perceives driver's door mirror motor MF (Mirror Fold) as active or inactive.

Mirror heating
Readout of whether the control module perceives driver's door mirror heating as active or inactive.

Mirror light
Readout of whether the control module perceives driver's door mirror light as active or inactive. The key must not be in the ignition switch when reading the status.

Direction indicator
Readout of whether the control module perceives driver's door direction indicator as active or inactive.

Window initiation
Readout of whether the driver's door window is initiated.
Parameters, value

Power supply
Readout of power supply to the control module.

Driver's door mirror position, X axis
Readout of driver's door mirror position along the X axis.

Driver's door mirror position, Y axis
Readout of driver's door mirror position along the Y axis.
