Description of Activations

VEHICLE COMMUNICATION INFORMATION, DRIVER'S DOOR MODULE (DDM)

Description of activations

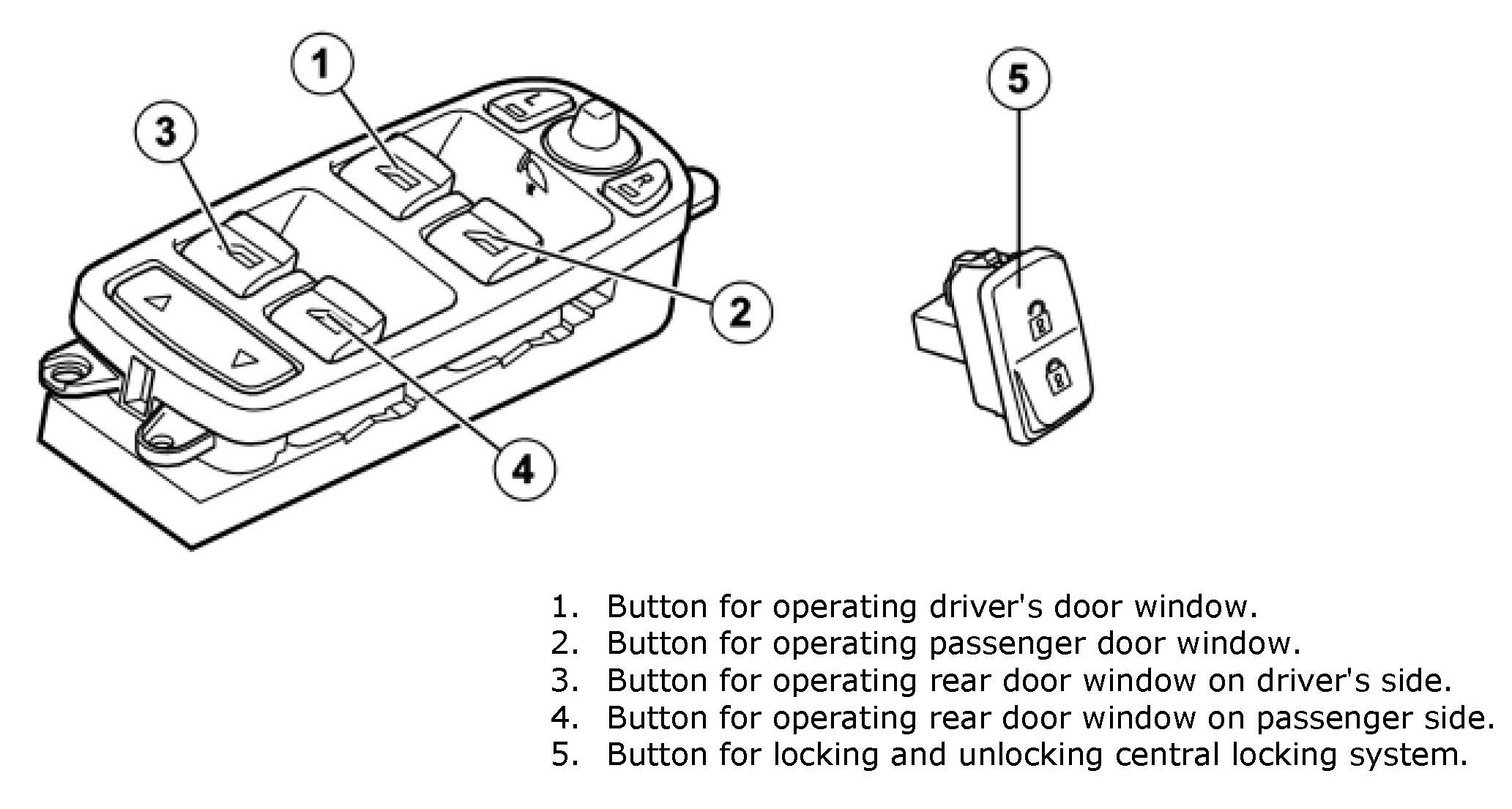

Note! The illustration shows the control panel for the driver door in a left-hand drive car. The control panel and numbering in a right-hand drive car is the mirror image of left-hand drive.

Note! The diagnostic trouble code (DTC) is stored if buttons are activated for more than 60 seconds.





Front driver's side, window button up, activated
Activation of window button 1, up direction

Front driver's side, window button down, activated
Activation of window button 1, down direction

Front passenger side, window button up, activated
Activation of window button 2, up direction

Front passenger side, window button down, activated
Activation of window button 2, down direction

Rear driver's side, window button up, activated
Activation of window button 3, up direction

Rear driver's side, window button down, activated
Activation of window button 3, down direction

Rear passenger side, window button up, activated
Activation of window button 4, up direction

Rear passenger side, window button down, activated
Activation of window button 4, down direction

Central locking switch, lock activated
Activation of central locking button, locking.

Central locking switch, unlock activated
Activation of central locking switch, unlocking.

Window motor up, activated
Activation of driver's door window motor, up direction.

Window motor down, activated
Activation of driver's door window motor, down direction.
