Trailer Module Wiring, (TRM)

Trailer module wiring, (TRM)
























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Trailer module wiring, (TRM)




- Open the boot lid.




- Lift up the cargo compartment's divider.




- Remove the covers on each side of the divider.




- Screw out the two nuts 4 revolutions, on each side of the divider.




- Lower the divider slightly.
- Unscrew the third nut on each side of the divider four turns.




- Lower the divider completely.




- Detach the wire frame from the clip.




- Use a cable tie or the like to lock the divider's two arms on the right and left side.




- Remove the divider by gripping the arms and lifting up.





Remove:
- the toolbox cover.
- the spare wheel, if present.




- Take the tools out from the toolbox.

Remove:
- the clip.
- the screw.
- the toolbox.




- Remove the three screws and the load retaining eyelets from the floor.




- Remove the cover from the trunk lid stop. Use a weatherstrip tool to pry between the cover and the stop to release the catches.




- Remove the two lamps by pressing in the two catches in the top edge using a screwdriver.





Applies to cars with emergency opening handle in the cargo compartment
- Remove the boot lid's emergency opening handle by pressing out the pin at the eye and then unhooking the wire.




- Remove the two screws in the sill moulding.




- Remove the sill moulding by pulling it up until the clips release. Move the sill moulding to one side.




- Remove the carpet in the cargo compartment.




- Remove the rubber stop on the roof's stop bracket.




- Mark out the stop bracket for the roof in relation to the screw.
- Remove the screw and the roof's stop bracket.




- Remove the load divider lock by using a weatherstrip tool to pry between the carpet and lock.




- Remove the screw and the load retaining eyelet on the right-hand side.




- Remove the stop brace cover.




- Mark out the stop braces for the roof in relation to the screws and nuts on the right side.
- Remove the screw, nut and the roof's stop braces.




- Undo the four clips on the side panel.




- Remove the side panel by unhooking it from the stop lug at the front edge and the pulling outward and upward so that it releases from the sealing strip.

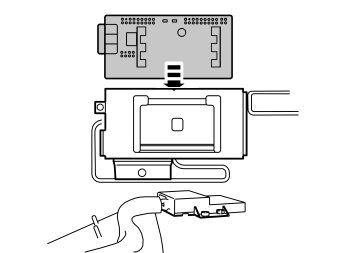

- Install the control module by fitting it onto the bracket's rail

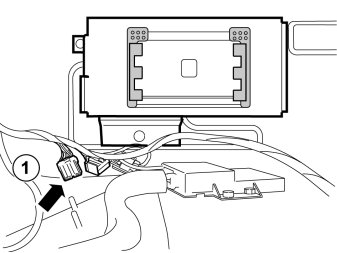

- Locate the 2-pin gray connector that is taped to the vehicle's standard cable harness.





Applies to cars with parking assistance

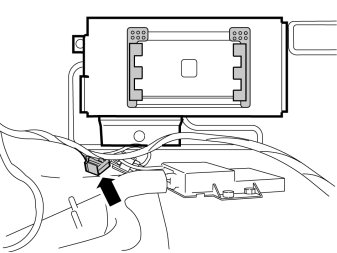

- Locate the 4-pin green connector that is taped to the parking assistance cable harness. Connect this to the adapter wiring.





Applies to cars with accessory electronic modules (AEM)

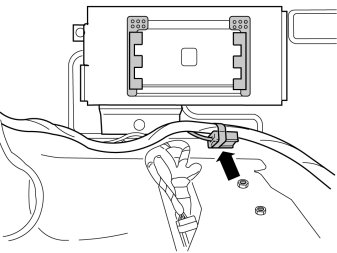

- Locate the 4-pin green connector from the accessory electronic module (AEM) taped to the vehicle's standard cable harness.





Applies to others

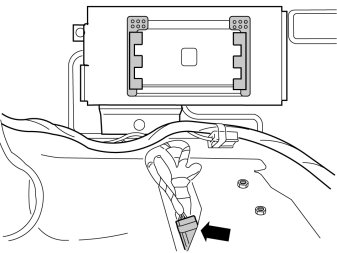

- Locate the 4-pin green connector that is taped to the vehicle's standard cable harness.

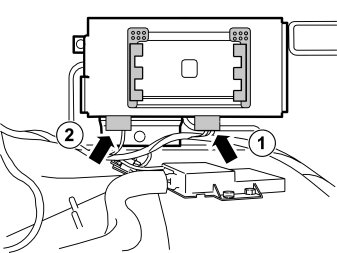

- Connect the connectors to the control module.





Applies to C70s manufactured after w0720

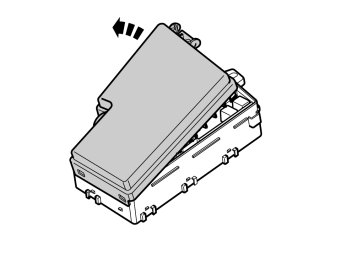

- Pull up the catch on the cover on the fuse box in the engine compartment. Pull up the cover and remove it.





Applies to C70s manufactured after w0720

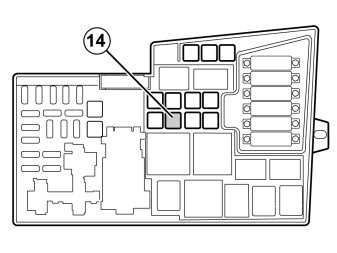

- Take a 40A fuse from the kit and install it in position 14 in fuse box.
- Reinstall the cover.

Reinstall:
- the side panel.
- stop and mounting brackets.
- the cargo compartment carpet.
- the sill trim panel with the lighting.
- any emergency opener.
- the stop for the boot lid.
- the load retaining eyelets, torque tighten the screws to 24 Nm (17 ftlb.).
- the toolbox.
- the divider.
- Download software for the accessory's function in accordance with the service information in VIDA.
