Integrated Audio Module (IAM)

Connection of Breakout Box, Integrated Audio Module (IAM)

Connecting the breakout box

Special tools:
951 2977
951 1428
951 1499
981 3190

Connecting the breakout box
- Ignition off
- Remove the fuse.
- Remove the infotainment control module (ICM).
- Unplug the control module connector.

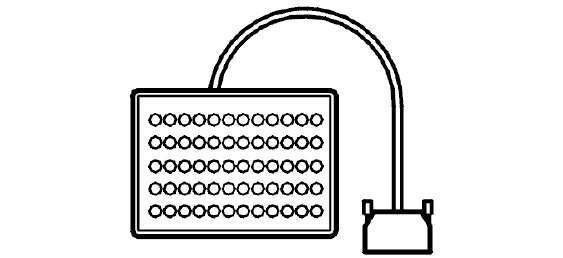

Plug adapter 951 2977 into the control module connector and connect breakout box 951 1428 and cable harness 951 1499 to the adapter.

Alternatively, breakout box 981 3190 could be connected to the adapter.

Disconnect the breakout box in reverse order.

Other information
- Signal specification
- General audio player module
