Audio Module (AUD)

Connecting the Breakout Box, Audio Module (AUD)

Connecting the breakout box

Special tools:
951 1463

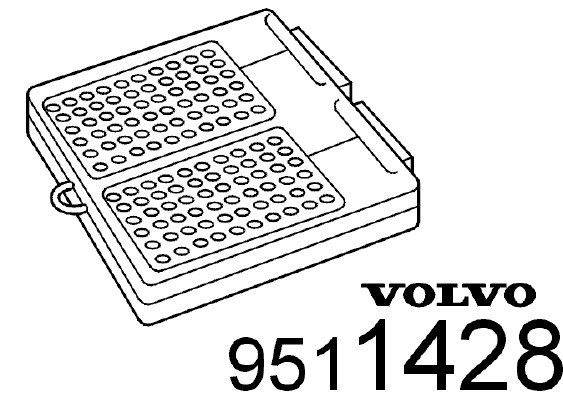

951 1428
951 1507
951 2888

Connecting the breakout box
- Ignition off
- Expose the audio module (AUD)
- Remove the fuse for the audio module (AUD).







Connect adapter 951 1463 to the control module connector and connect breakout box 951 1428 to the adapter. Audio module (AUD) terminals #C1-#C22 correspond to terminals #1-#22 on the breakout box. Connect adapter 951 1507 to the control module connector and connect breakout box 951 1428 to the adapter. Audio module (AUD) terminals #A1and #A2 correspond to terminals #45 and #46 on the breakout box. Connect adapter 951 2888 to the control module connector and connect breakout box 951 1428 to the adapter. Audio module (AUD) terminals #B1-#B16 correspond to terminals #1-#16 on the breakout box.

The breakout box is designed to facilitate reading off the control module input and output signals when the control module is connected and cable and component resistance when the control module is disconnected. The use of a breakout box reduces the risk of accidental short-circuited cables and damage to the connector pins

Disconnecting breakout box
In reverse order.

NOTE: Before the control module can be checked and readings taken, the removed fuses must first be installed.

Other information
- Signal specification
