Grille Door Speaker Front

Grille Door Speaker Front

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removing the speaker grille





Remove:
- the door panel as described in Panel front door
- the clip of the cable harness and move aside the cable harness

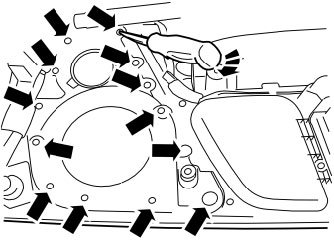

- the 13 retainers of the speaker grille.

HINT: Use a knife to carefully cut away the retainers.

Installing the speaker grille





Install:
- the speaker grille

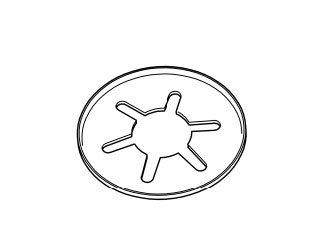

- the 13 star washers

Reposition the cable harness and press the clip into place

Install the door panel. See: Panel front door.
