Radio/Stereo: Service and Repair




General Audio Player Module

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off





Ignition off.

Remove the center console in accordance with: Center console.

Removal

Removing the media player module (IAM/MPM)

NOTE: Exercise caution when working with the control module so that the optic cables are not bent or stretched.

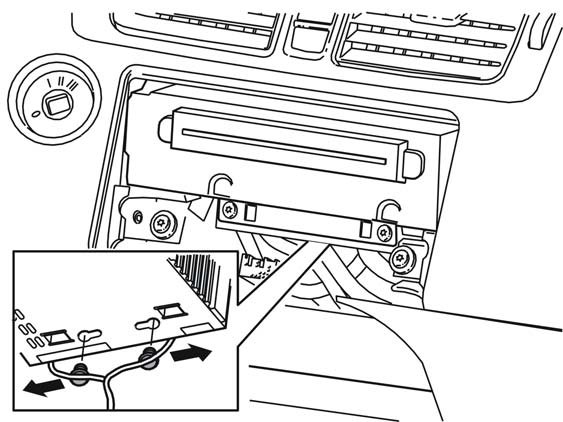

Remove the clips, x 2, by pressing the clips to the sides and down.

Remove:





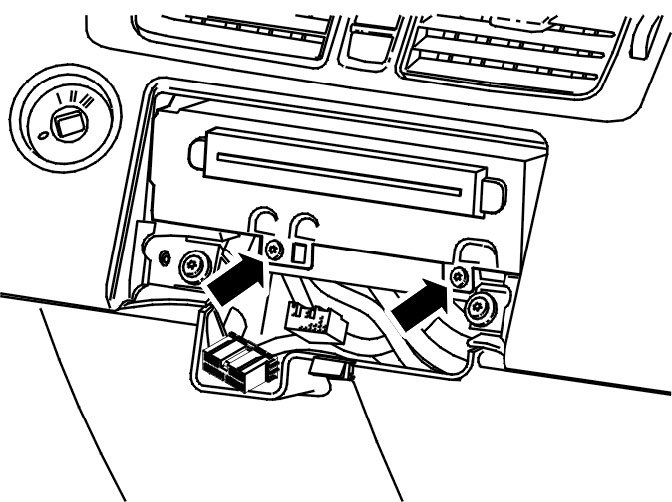

- the bolts, x 2, to the control module
- the media player module (IAM/MPM) by pressing it out at the rear edge from below
- the connectors, x 3.

Installation

Installing the media player module (IAM/MPM)

NOTE: Check that there is no dirt in the optical connectors. The bend radius of the optic cables must not be less than 25 mm.

Install:





- the connectors, x 3
- the clips, x 2
- the media player module (IAM/MPM), insert the guide pin into the hole behind the control module
- the bolts to the control module, x 2.

Finishing

Installing the center console
Install the center console in accordance with: Center console.

Ordering software
Only for media player with integrated amplifier (IAM)

Order the software in accordance with:
S40 (04-) 30737756
V50 30737808
C70 (06-) 30775732
C30 31210521
