Compact Disc Player (CD): Service and Repair

CD player, MD/CD player, CD changer







INTRODUCTION

- NOTE: Read through the whole installation instruction before starting the work.

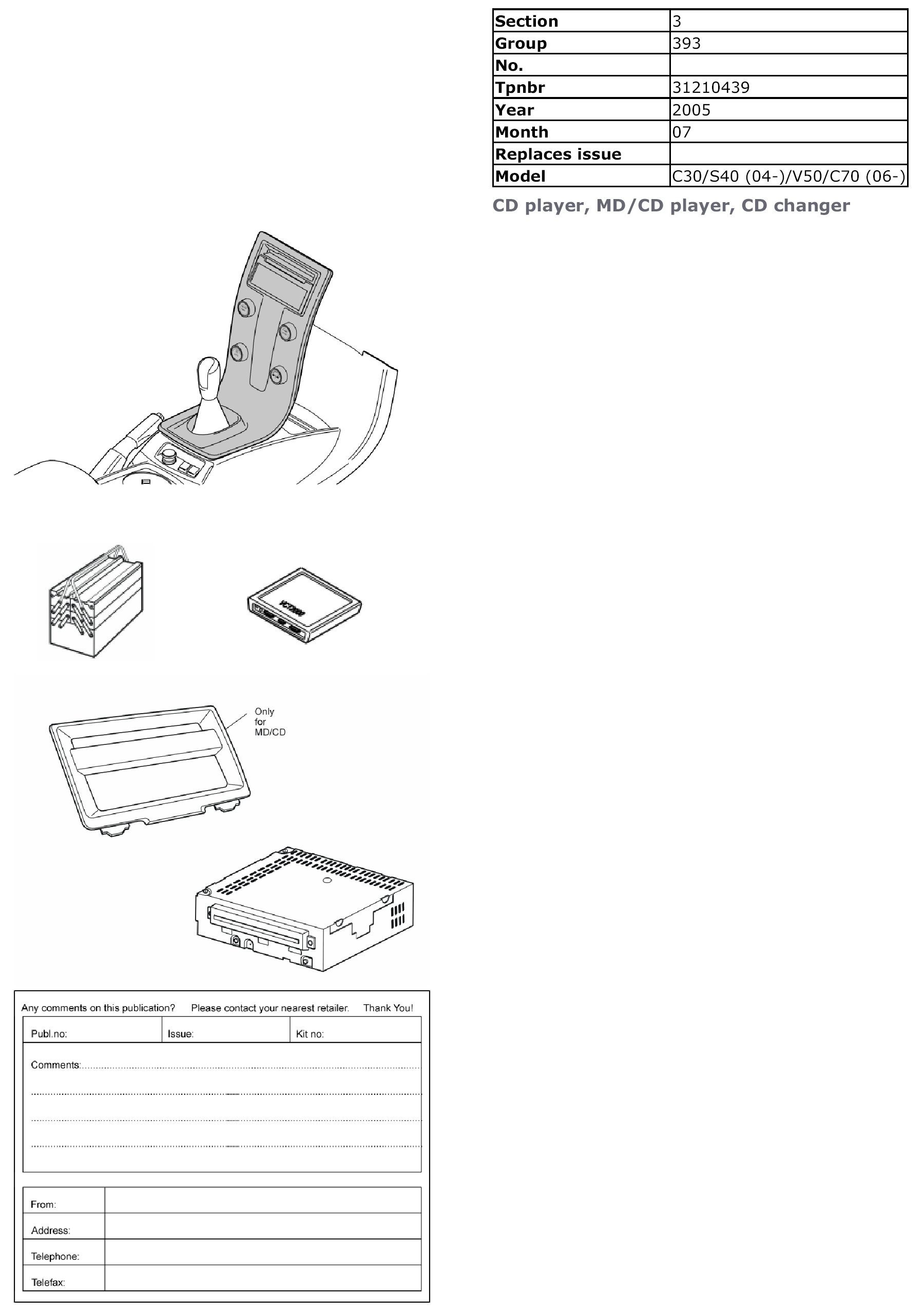

- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.

CD player, MD/CD player, CD changer

NOTE: This accessory is connected to the car's electrical system. It requires software unique to the car.

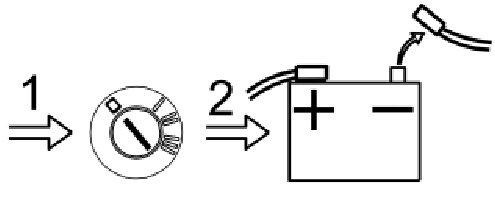

- Turn the ignition key to position 0.
- Remove the ignition key from the ignition switch.

NOTE: Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

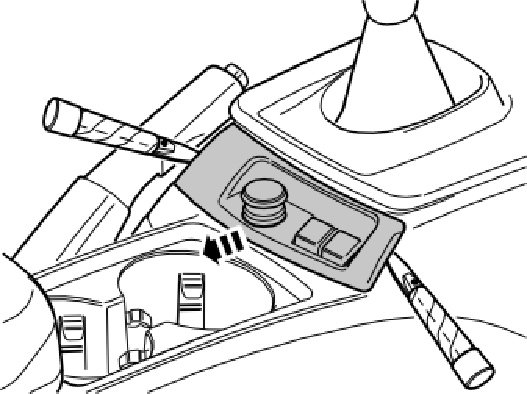

Detach the panel at the rear edge of the centre console:







- Use a plastic weatherstrip tool to pry loose the panel. The panel is secured by a catch on each short side.

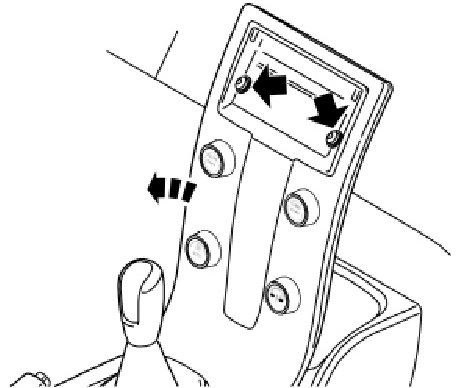

- Move the panel to the side to access the two screws underneath.







- Remove the two screws holding the centre console at the rear edge.

Remove the panel on the rear of the centre console:







- Open the glove compartment.
- Use a plastic weatherstrip tool carefully to pry loose the panel. The panel is secured by a catch on each long side.
- Pull the panel downwards.

Remove the surround around the display and media player:

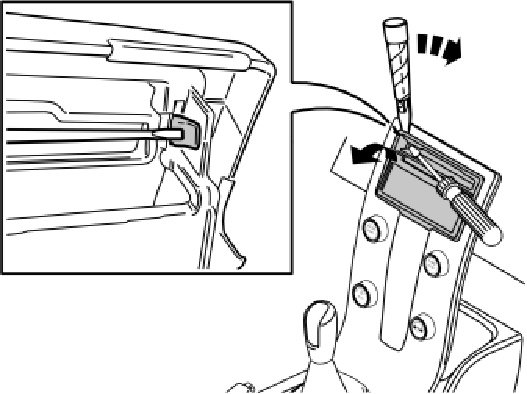

- Use a small screwdriver and press in the catches at one of the surround's upper corners. Carefully prize the surround away on one side using a plastic weatherstrip tool.
- Repeat the procedure for the other side and then fold the surround backwards into the vehicle. Pull the surround up until it detaches.

HINT: If there is difficulty removing the surround, press the panel back into place on both sides and start the removal procedure again. Start from the opposite side to before.

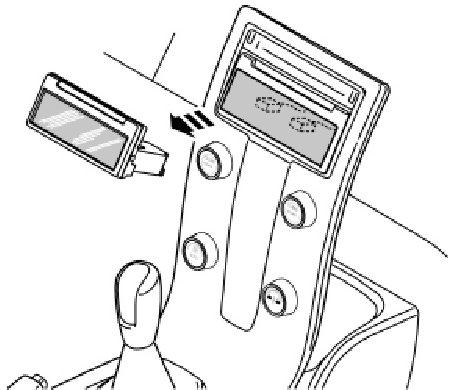

- Press out the display module from the reverse of the centre console. Press straight backwards, using both hands.
- Disconnect the two connectors. Put the display to one side.







- Remove the two screws holding the centre console to the dashboard.
- Remove the connector on the reverse of the dashboard environment panel.
- Remove the centre console from the dashboard and tunnel console.

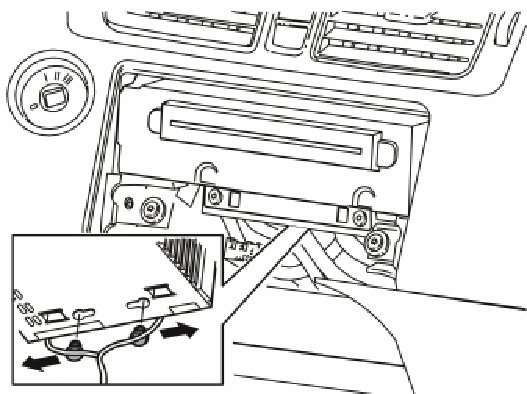

- Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

NOTE: Be careful with the optic cables so that they are not bent or stretched.

Illustration A

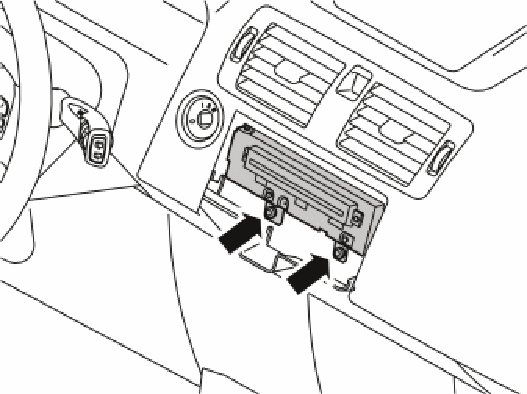

- Remove the two screws in the lower edge of the existing media player. Save the screws, they shall be re-used.
- Pull out the media player and detach the connectors on the rear side.

NOTE: Make a mental note of how the cables are routed on the rear side.

- Put the media player to one side. It shall not be reused.

Illustration B







- Take the new media player from the kit, and the two existing screws.
- NOTE: Make sure that the fibre optic cable is routed so that it is bent to a radius of no less than 25 mm (1 inches).

Plug in the connectors to the media player.

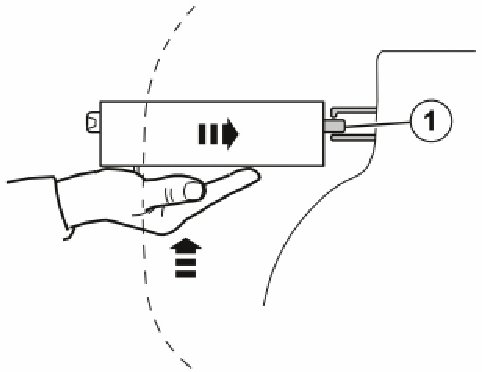

- Position the media player in the dashboard. Guide in the lug (1) at the rear edge of the media player using one hand. The lug must be in the corresponding hole on the reverse of the heater.
- Tighten the media player using the two screws.
- Reinstall the clips with the cables on the underside of the media player.

Reinstall:
- the connector for the dashboard environment panel
- the centre console for the dashboard and tunnel console
- the connectors for the display
- the display

- Applies to CD player/changer:
Reinstall the display surround and the media player.

- Applies to MD/CD player:
Install the new surround for the display and media player.
- Reinstall the panel on the reverse of the centre console.
- Reinstall the panel on the rear edge of the centre console.
- Program the function using VCT 2000.
