Part 4

Navigation system, Turn by Turn (Continued)

Connecting the media player




- Route the cable harness with the two large grey connectors down in front of the central electronic module (CEM), inside the carpet to the left, along the right-hand side of the center console, up along this and out where the media player was fitted. The whole of the excess length of cable with the long foamed cable harness shall be located inside the carpet on the right-hand side of the center console.
- Bind in the loose connectors and fuse holder with foam tape from the kit to avoid rattling.

Applies to right-hand drive cars





Illustration A

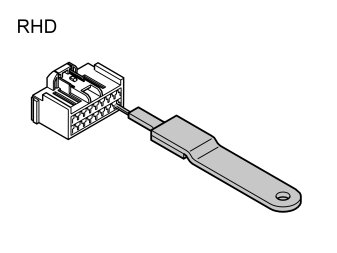

- Detach the secondary catch on the grey connector in the cable harness which was routed up in the previous step, press the catch down in the center of the lower edge and pull the catch out against the stop. Use the tool, P/N 9512639.

Illustration B

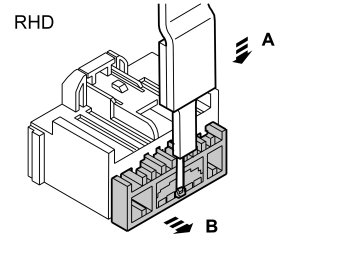

- Remove the catch by pressing it down in the center of the top edge until the small lug on the top is free, and prize it out.

Applies to right-hand drive cars





Illustration A

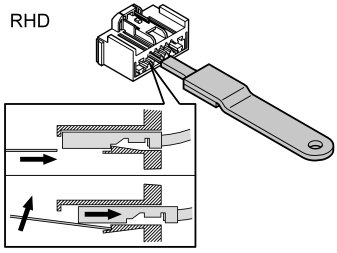

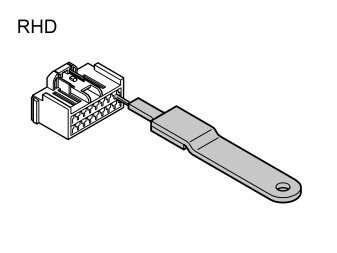

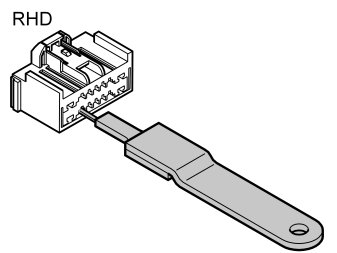

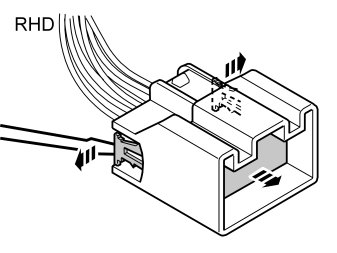

- Remove the cables from position 4, yellow (Y), and position 5, grey (GR). Carefully insert the tool, P/N 9512639 as illustrated, detach the primary catch and at the same time pull out the cables.

Illustration B




- Change places on both cables so that the positions are as illustrated.
- Reinstall the secondary catch.

Illustration C

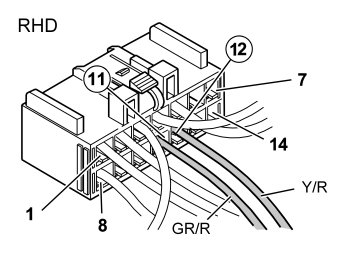

- Remove the cables from position 11, yellow/red (Y/R), and position 12, grey/red (GR/R), in the same way as in step 107A above.

Illustration D




- Change places on both cables so that the positions are as illustrated.
- Reinstall the secondary catch.





Applies to right-hand drive cars

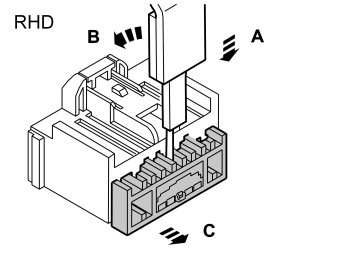

- Remove the secondary catch on the grey female connector. Carefully prize out the catches at the sides and move them forward. Pull out the catch.
- Now change positions on the same cables in the connector, as those in the previous steps for the male connector (4-5, 11-12).
- Reinstall the secondary catch.





Applies to all models

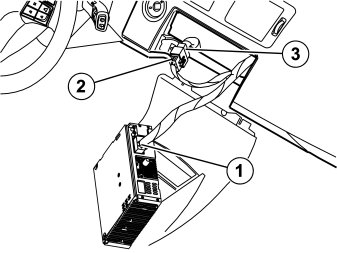

- Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
- Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
- Plug the remaining connectors which where detached into the media player.
- Reinstall the media player and secure it.

Connecting the external amplifier

Note! Steps 114 - 156 apply to cars with external amplifier.

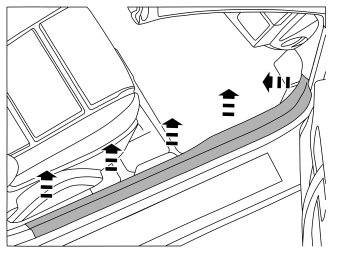

- Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.




- Remove the center section of the rear seat backrest.




- Detach the two rear backrests by gripping them at the top and pulling forward/up.




- Detach the seat cushion by gripping the front edge and pulling it forward.

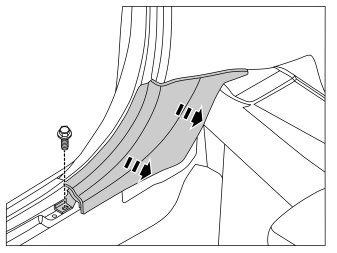

- Remove the screw and the rear sill trim panel.
- Fold up the roof.




- Open the boot lid/tailgate.




- Lift up the cargo compartment divider.




- Remove the covers on each side of the divider.




- Unscrew the two nuts on each side of the divider four turns.




- Lower the divider slightly.
- Unscrew the third nut on each side of the divider four turns.




- Lower the divider completely.




- Detach the wire frame from the clip.

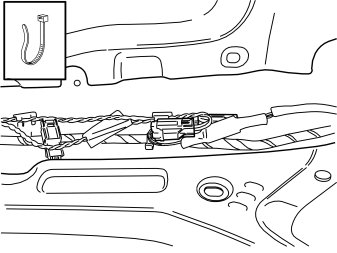

- Use a cable tie or the like to lock the divider's two arms on the right and left side.




- Remove the partition by taking hold of the arms and lifting upward.





Remove:
- the cover on the tool box
- the spare wheel, if in place.




- Take the tools out of the toolbox.

Remove:
- the clip.
- the screw.
- the toolbox.




- Remove the three screws and the cargo lashing eyes from the floor.

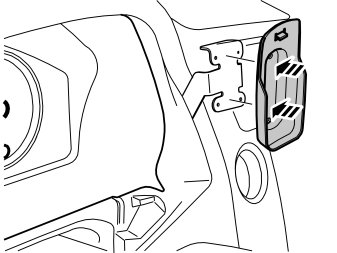

- Remove the cover for the tailgate stop, by prying between the cover and the stop using a weatherstrip tool, so that the hooks release. Carry this out on both the left and right-hand sides.




- Remove the two lamps by using a screwdriver to press in the two catches at the top edge.





For cars with emergency release handle in cargo compartment
- Remove the emergency opening handle by pressing out the pin at the eye and unhook the wire.




- Remove the two screws in the sill moulding.




- Remove the sill protection by pulling it up until the clip releases. Fold the sill protection to the side.




- Remove the cargo compartment carpeting.




- Remove the rubber stop on the roof's stop bracket on both the right and left-hand sides.




- Mark out the stop bracket for the roof in relation to the screw.
- Remove the screw and the roof's stop brace.
- Carry out on both the left and right-hand sides.




- Remove the lock for the load divider by prying between the mat and lock using a weatherstrip tool. Carry this out on both the right and left-hand sides.




- Remove the screws and the cargo lashing eyes on both the right and left-hand sides.




- Remove the cover for the stop bracket on both the left and right-hand sides.




- Mark out the stop brackets for the roof in relation to the screw and the nut.
- Remove the screw, nut and the roof's stop braces.
- Carry out on both the left and right-hand sides.




- Detach the four clips on the side panels on both the right and left-hand sides.




- Remove the side panels on both the left and right-hand sides, by unhooking them from the stop lugs at the front edge and then pulling them outwards and upwards so that they release from the weatherstrip.

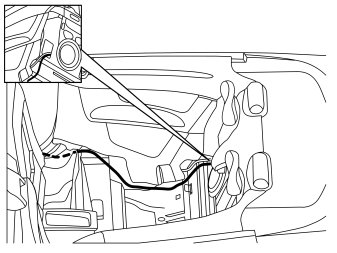

- Route the cable harness with the two grey connectors and the attached thin single cable, from the area for the glovebox. The black/white (SB/W) single cable is attached to the connector in step 88, and must be routed along as far as possible. Route the cable between the floor carpet and sill. Locate the cable so that it is not trapped or damaged.




- Route the cable along the existing cable harness backwards and into the cargo compartment.

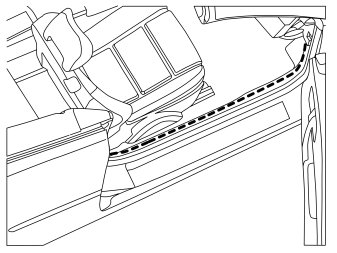

- Route the cables inside the floor carpets and back towards the amplifier in the left-hand rear wheel arch. Route the cables along the existing cable harnesses in the cargo compartment.

Caution! Ensure that the cable is positioned so that there is no risk of it catching or rubbing.





Applies to right-hand drive cars
- Take the adapter cable, P/N 30752743, with two large green and two grey connectors from the kit.
- Remove the connector's secondary catch on the male connector in accordance with step 110.

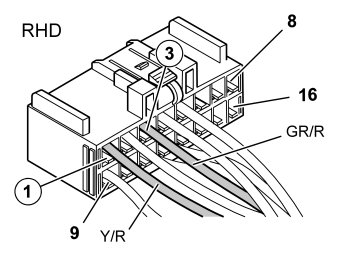

- Remove the cables from position 1, grey/red (GR/R), and position 3, yellow/red (Y/R). Carefully insert the tool, P/N 9512639 as illustrated, detach the primary catch and at the same time pull out the cables.





Applies to right-hand drive cars
- Change places on both cables so that the positions are as illustrated.
- Reinstall the secondary catch.





Applies to right-hand drive cars

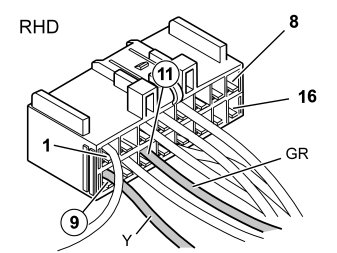

- Remove the cables from position 9, grey (GR), and position 11, yellow (Y). Carefully insert the tool, P/N 9512639 as illustrated, detach the primary catch and at the same time pull out the cables.





Applies to right-hand drive cars
- Change places on both cables so that the positions are as illustrated.
- Reinstall the secondary catch.





Applies to right-hand drive cars
- Remove the secondary catch on the large green female connector. Carefully prize out the catches at the sides and move them forward. Pull out the catch.
- Now change positions on the same cables in the connector, as those in the steps above for the male connector (1-3, 9-11).
- Reinstall the secondary catch.





Applies to cars with subwoofer amplifier

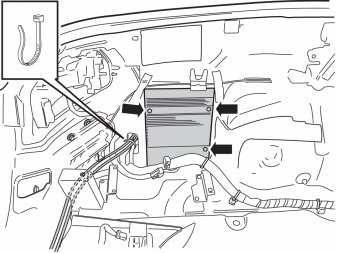

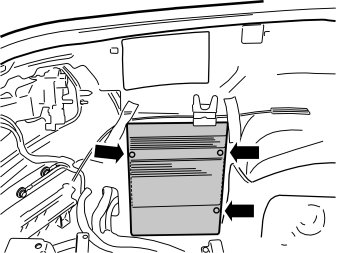

- Remove the subwoofer amplifier by removing the screws and unplugging the connectors.





Applies to all models
- Detach the cable harness from the weld screw.




- Remove the screw and the two nuts.

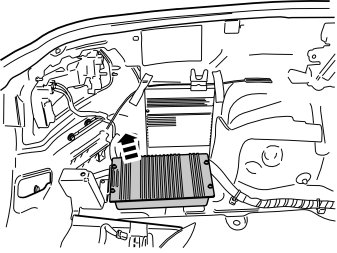

- Lift the amplifier forward.

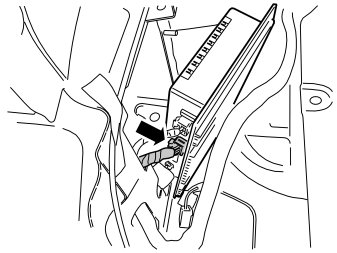

- Unplug the green connector.

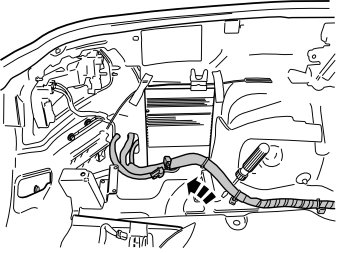

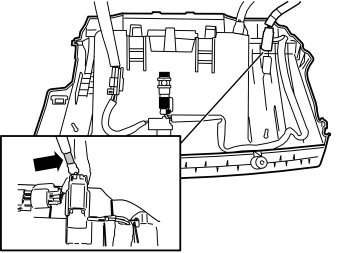

- Take the adapter cable with the two small connectors and thread them through the hole into the cargo compartment.

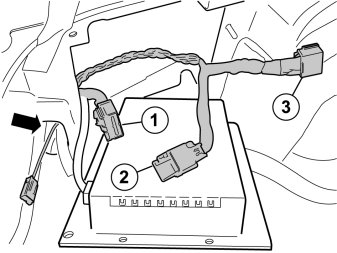

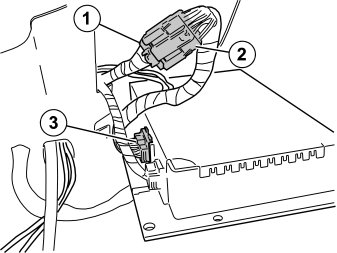

- Connect the adapter cable to the amplifier as follows:
- plug connector (1) (disconnected from the amplifier) into the female connector (2) on the adapter cable.
- plug connector (3) on the adapter cable into the amplifier.
- To prevent rattling, secure the detached connector to the car's existing cable harness with tie straps.




- Secure the cables at the lead-through with a tie strap. Route the cables on along the car's normal cable harness.
- Reinstall the amplifier with nuts and screws, tightening torque: 10 Nm (7 ftlb.).
- Reinstall the cable harness on the weld screw.

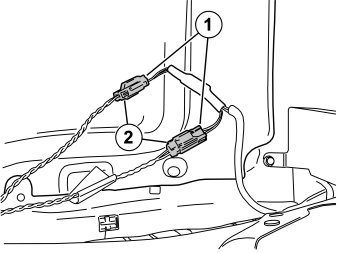

- Plug the two grey connectors (1) in the previously prepared adapter cable, into the corresponding grey connectors (2) in the routed cable harness.




- Clamp the connectors to the existing cable harness.

Installing the screen

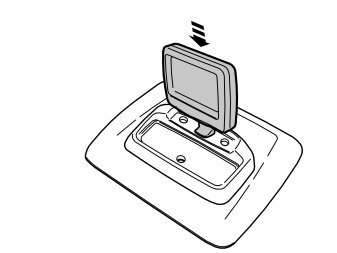

- Take the screen from the kit and press it in on the connector/holder.

Installing the remote control holder

Illustration A

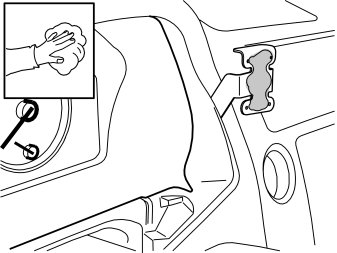

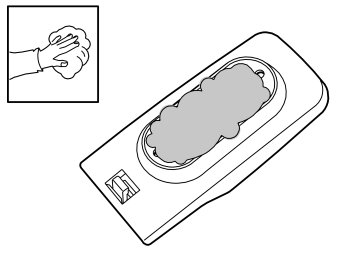

- Clean the rear side of the holder for the remote control using isopropanol. Wipe dry.

Illustration B




- Clean the front of the bracket using isopropanol. Wipe dry.

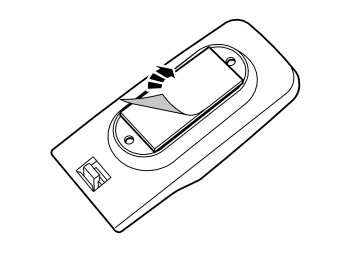

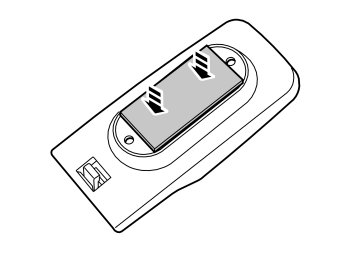

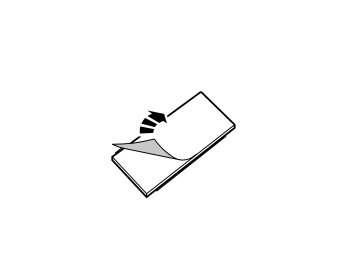

- Take double-sided adhesive tape from the kit and remove one piece of protective backing tape.




- Firmly press the tape in on the rear side of the holder.




- Remove the remaining protective backing tape from the double-sided adhesive tape.




- Firmly press the holder in on the bracket.

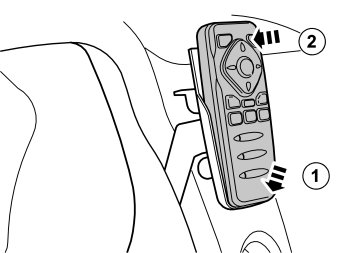

- Secure the remote control from the kit into the holder.

Finishing work




- Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.





Reinstall:
- the lower vent.

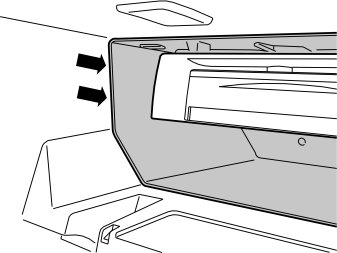

- the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
- the clip in the air vent on the end face of the dashboard.
- the panel on the dashboard end face.
- the center console and connect the dashboard environment panel
- the panel on the center console rear edge.
- Connect and reinstall the display unit.
- the surround for the display.
- the panel inside the center console.
- the sill trim panels by the right-hand front door.
- seat cushions and backrests.
- the battery negative lead.

Reinstall in the cargo compartment:
- the side panels.
- stops and attaching braces.
- the cargo compartment carpeting.
- the sill panel with lighting.
- any emergency release.
- the stop for the boot lid/tailgate.
- the cargo lashing eyes, tightening torque: 24 Nm (18 ftlb.).
- the toolbox.
- the divider; remove the cable ties.

Programming the system

Illustration A

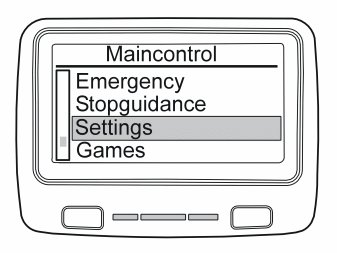

Program the system as follows:
1. Select "Settings"
2. Select "Service"
3. Press OK at "Code"
4. Enter code:
- 6330
1. Select "X-Code"
2. Enter code:
- XCA9 - VQ3Z
- A6SV - FWY1
1. Press "OK"
2. Press "Save settings"

Note! Do not forget this!

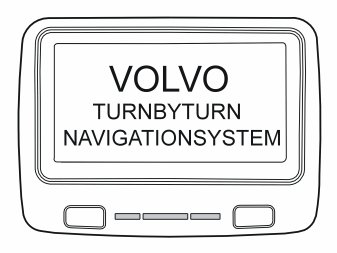

Illustration B





Volvo menu
- The system now starts up with the Volvo logo and is ready for use.

Radio Mute function

Applies only if the car has AEM and the Radio Mute function is desired
The function mutes the radio when there are navigation messages.
- Take a new cable with minimum area 0.35 mm�.
- Using a crimping sleeve, splice the new cable with the brown/white (BN/W) cable from the brown connector at the navigation unit.
- Route the cable along the rear crossmember and connect it at position 11 in the accessory electronic module (AEM). If the position is in use by hands-free mute, splice the cable with the crimping sleeve. Make sure that the splices are performed as described in steps 78 - 80.
- Load the Telemute application in AEM.
