Part 3

Hands free unit for carphone (Continued)

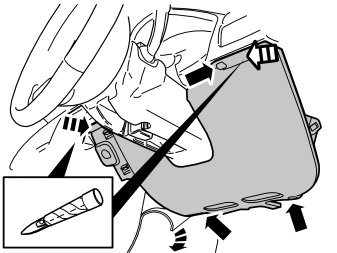

Illustration A

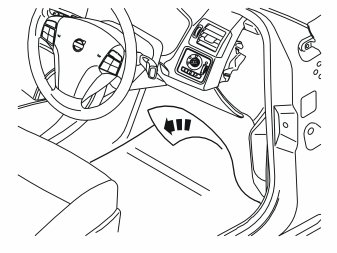

- Remove the three screws in the soundproofing panel on the right-hand side.
- Push the carpet on the right-hand side of the center console to one side.
- Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

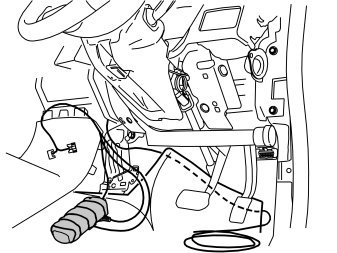

Illustration B

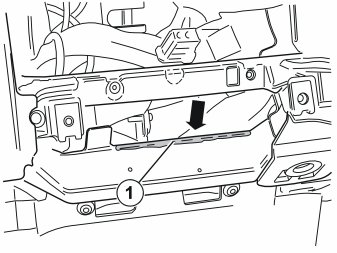

- Unplug the connector (1) for the lighting.
- Remove the sound barrier.

Installing the mounting for the telephone holder

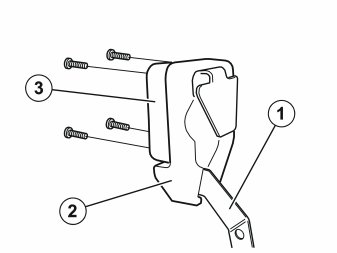

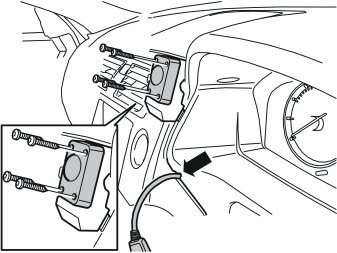

- Take the mounting (1), cover (2), mounting plate (3) and four screws from the kit. Tighten to each other.

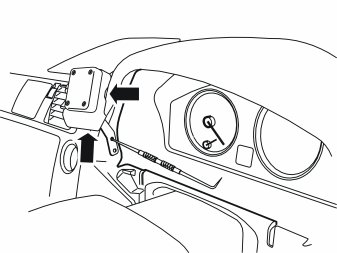

- Position the mounting with the mounting plate and cover in the cut-out for the combined instrument panel surround. The cover must connect to the dashboard where the arrows are displayed.
- Mark out the holes to be drilled for the mounting.

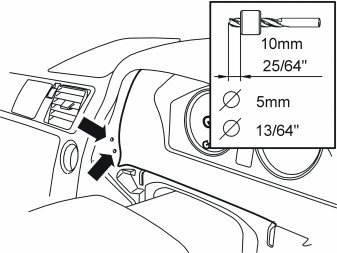

- Drill out the holes using a -5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
- Remove any swarf.




- Remove the holder and cover from the mounting.
- Tighten the mounting to the dashboard. Use the two screws and the mounting plate (positioned on the inside) from the kit.




- Push the felt tape on the left-hand side of the surround to one side.

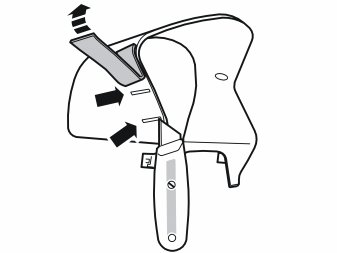

- Cut off the two tabs.
- Re-apply the tape.




- Take the telephone holder from the kit. Insert the connector on the underside of the ignition switch along the left-hand side of the combined instrument panel. Continue down into the dashboard and out where the cables to the display are located.

- Install the microphone according to the separate Installation Instructions.

Cable routing

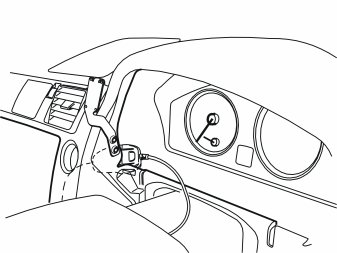

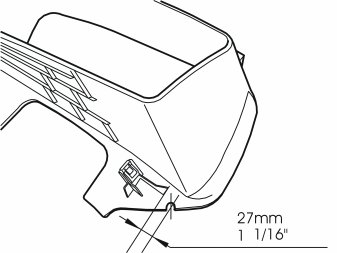

- File a groove in the combined instrument panel surround on the left-hand side for the cable to the telephone holder as illustrated.




- Reinstall the combined instrument panel surround. Ensure that the telephone holder cable is positioned in the cut-out.
- Adjust the cable length between the telephone holder and surround.
- Tighten the cover and mounting plate to the holder.

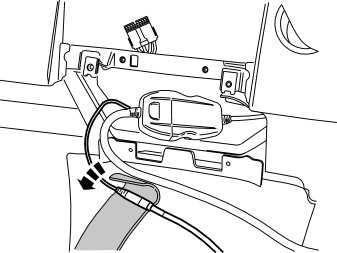

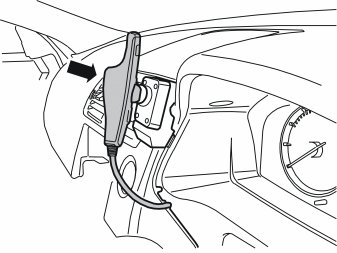

- Press telephone holder into place on the mounting plate. Adjust the cable length outside the surround.

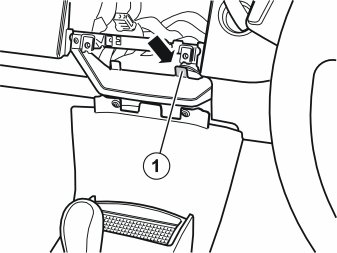

- Saw off the protruding section (1) in the center console using a hack saw blade.




- File down the edge (1) so that the large surface is completely flat.

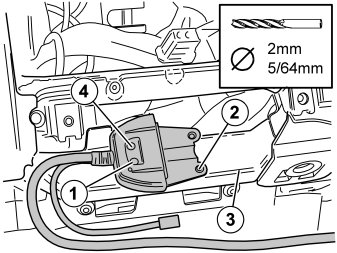

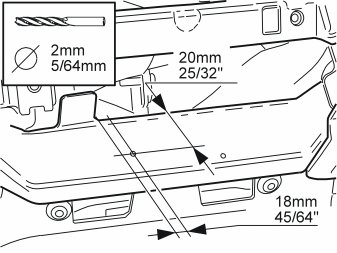

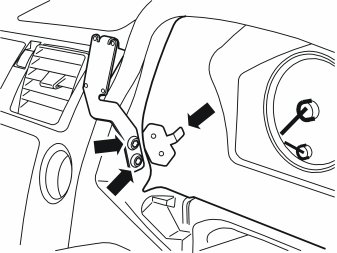

- Mark out and drill a -2 mm (5/64 ") hole on the flat surface as illustrated.




- Take one screw and the connector with the two attached cables from the kit and use the screw to secure it in the newly drilled hole. The screw must be tightened in the hole (1) in the connector.
- Now twist the connector so that the hole (2) is inside the edge (3) when drilling.
- Drill out the hole through the hole in the connector. Use a -2 mm (5/64 ") drill bit.
- Take a new screw from the kit. Tighten the screw in the drilled hole.
- Drill out the third hole (4) in the same way. Tighten using screws from the kit.
- Remove any swarf and filings.




- Press the switch for the telephone holder into the newly installed connector.




- Remove the two screws along the front edge of the center console.





Applies to cars with external amplifier

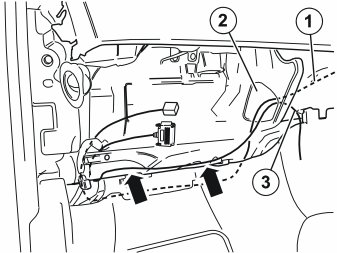

- Route the cable (1) to the microphone through the air duct hole (2). Route the cable inside the edge of the carpet, out towards the left and up to the fuse holder location.
- Route the cable (3) in the secured connector out through the air duct hole (2). Route the cable downward along the existing cable harness and out to the left along the lower edge of the impact member. Continue along the member and up to the fuse holder location.
- Secure the cable at the impact member with two tie straps from the kit.

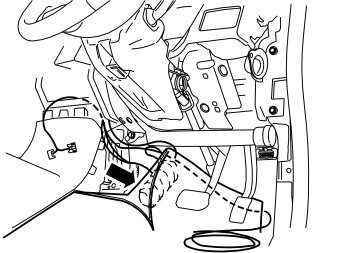

- Push the floor carpet to one side in order to route the cable harness toward the rear of the car.





Applies to cars with external amplifier
- Remove the large cable harness from the kit. Route the end with the white (W) connector and the brown (BN) single cable to the left-hand side in front of the fuse holder (CEM) where the aerial cable and joint cable connectors to the telephone holder are located.
- Route the cable inside the edge of the carpet to the right and place it under the front edge of the center console.
- Route it inside the edge of the carpet on the driver's side and out along the sill to the right-hand front door.

- Install the aerial according to the separate Installation Instructions.

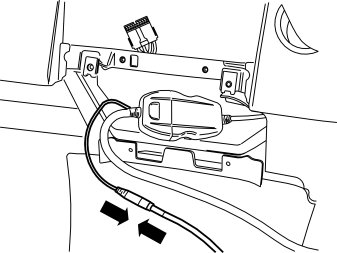

- Take the cable from the antenna and connect it to the short cable.




- Wrap the connectors with foam tape from the kit to prevent rattling.





Applies to cars with external amplifier

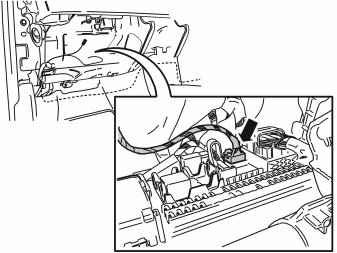

- Remove the 14-pin connectors from the fuse holder (CEM) by first pressing in the catch on the front of each connector.





Applies to cars with external amplifier

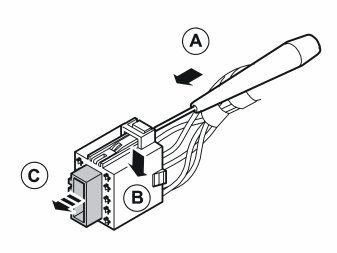

- Press out the connector's secondary catch by first pressing in the lock tab on the inside (A, B) and then press out (C) in one side of the connector.





Applies to cars with external amplifier

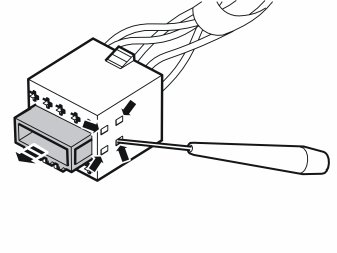

- Turn the connector over and push out the other end with the four small holes on the opposite side of the connector.





Applies to cars with external amplifier

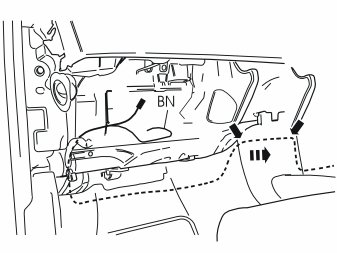

- Connect the routed brown (BN) cable to position 9 in the removed connector.
- Secure the auxiliary locking mechanism on the connector and reinstall it in the fuse holder.

Phone module connection





Applies to cars with external amplifier
- Take the long cable harness from the kit.

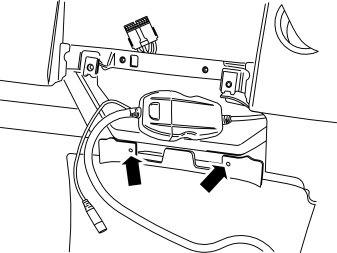

- Route the end with the small white connector and the brown (BN) single cable under the carpet near the right-hand door sill. Pull it up along the front edge of the fuse holder (CEM) and position as illustrated.

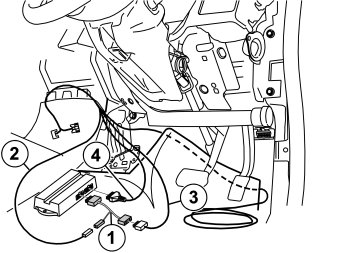

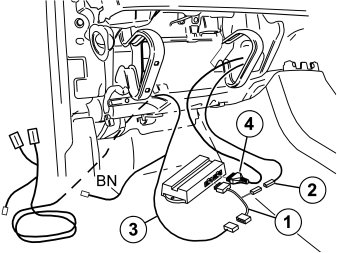

- Take the phone module and connect the adapter cable (1).
- Connect the routed cable harnesses,
- The cable (2) for the microphone
- the cable (3) for the power supply and accessory electronic module (AEM)
- the cable (4) for the telephone holder
- The brown (BN) single cable is connected to the fuse holder (CEM) under the dashboard according as per the previous step.





Applies to cars with external amplifier

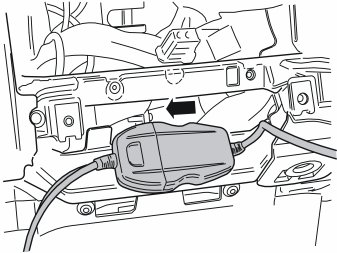

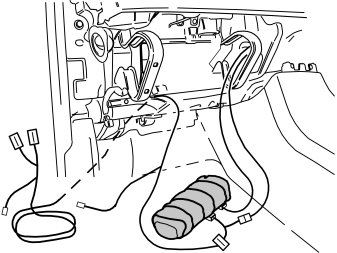

- Wrap the control module with foam tape from the kit to prevent rattling.





Applies to cars with external amplifier
- Place the control module all the way into the recess along the left-hand side near the fuse holder. Position the module so that it does not jostle or run the risk of becoming trapped by the inner section of the glovebox when the glovebox is reinstalled.





Applies to cars with internal amplifier

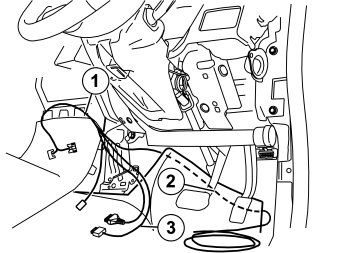

- Take the large cable (1) harness from the kit.

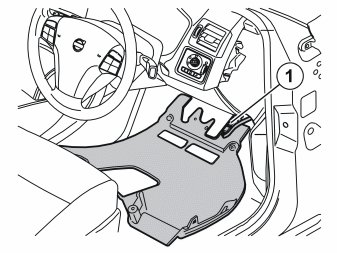

- Route the long single cable (2) and the cable harness (3) with white connector on the right-hand side of the center console and down towards the floor. The two large grey connectors must remain in the center of the dashboard where the media player shall be located.
- Route the long single cable (2) in the cable harness down and inside the floor carpet, and out at the right-hand front door sill.





Applies to cars with internal amplifier
- Take the phone module from the kit and connect the adapter cable (1).
- Connect the routed cable harnesses,
- the cable (2) for the microphone.
- the cable (3) for the power supply and accessory electronic module (AEM).
- the cable (4) for the telephone holder.
- Clamp the cables at the existing cable harness on the right-hand side of the center console using tie straps from the kit.





Applies to cars with internal amplifier
- Wrap the control module with foam tape from the kit to prevent rattling.





Applies to cars with internal amplifier

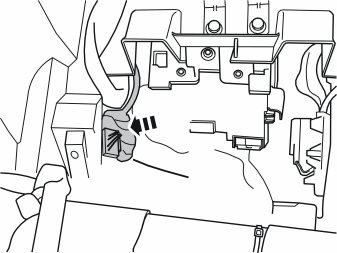

- Fit the newly connected control module furthest in on the right-hand side of the center console, against the cowl under the carpet.
- Collect all excess cable and place it on the right-hand side as well.





Applies to cars with internal amplifier

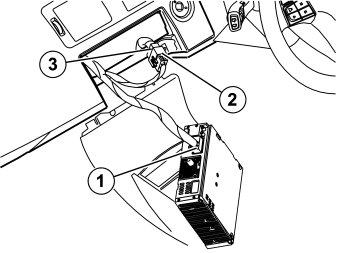

- Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
- Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
- Plug the remaining connectors which where detached into the media player.
- Reinstall the media player and secure it.
