Part 1

Hands free unit for carphone
























































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






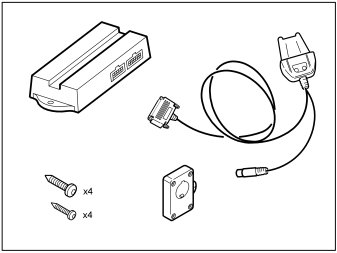

Hands free unit for carphone

Note! This accessory requires software unique to the car.

Note!
- Steps 1-47 apply to left-hand drive cars
- Steps 48-100 apply to right-hand drive cars
- Steps 101-145 apply to both left and right-hand drive cars

Note! Cars with external amplifier: amplifier is located on the left-hand side in the cargo compartment. Cars with internal amplifier have it located in the media player.

Preparations for left-hand drive car




- Turn the ignition key to position 0.
- Disconnect the battery negative lead.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.




- Position the steering wheel in its lowest and rearmost position.
- Remove the two screws from the surround for the combined instrument panel.




- Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

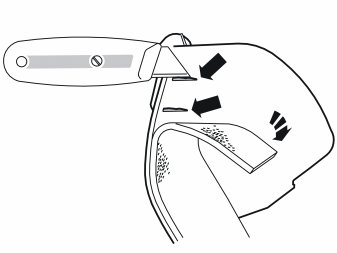

- Carefully pry off the panel at the rear edge of the center console. Use a weatherstrip tool. The panel is secured by a catch on each of the short sides.
- Move the panel to the side to access the two screws underneath.




- Remove the two screws.




- Open the glovebox.
- Carefully pry off the panel inside the center console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel away downwards.




- Remove the temperature sensor by pulling it forward so that it detaches from its holder.




- Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Note! Do not damage the panel and dashboard.

Repeat the operation on the other side.

Hint: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.

- Fold the surround backwards. Remove by pulling upwards.




- Press out the display module (1) from the reverse of the center console. Use both hands and press straight back.
- Disconnect the two connectors. Put the display to one side.




- Remove the two screws holding the center console to the dashboard.
- Remove the connector on the reverse of the dashboard environment panel.
- Remove the center console from the dashboard and tunnel console.




- Remove the two screws from the bottom of the media player.
- Pull out the media player and detach the connectors on the rear side.

Note! Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").




- Remove the panel on the right-hand and left-hand ends of the dashboard. Carefully pry off the panel until the three clips release. Use a weatherstrip tool.

Note! Do not damage the dashboard.




- Remove the clip holding the nozzle for the air duct on the right-hand and left-hand sides.




- Remove the rubber mat.
- Remove the screws, x 5, in the glovebox opening.

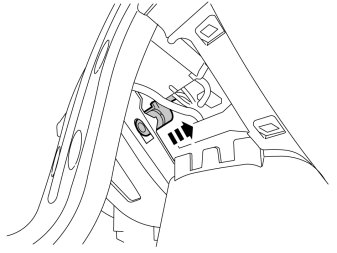

- Pull the glovebox straight back in the vehicle in order to release the hidden clips, x 2, in the top edge.
- Remove the outer section of the glovebox.




- Unplug the connectors on the top.




- Remove the screw for the vent on the right-hand side. Pull off the vent to the right. Place to one side.




- Remove the four screws for the inner section of the glovebox. Pull it out. Place it to one side.
If there is a DVD reader installed, unplug the connectors on the rear.




- Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.

Illustration A




- Remove the three screws in the soundproofing panel on the left-hand side.
- Push the carpet on the left-hand side of the center console to one side.
- Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

Illustration B




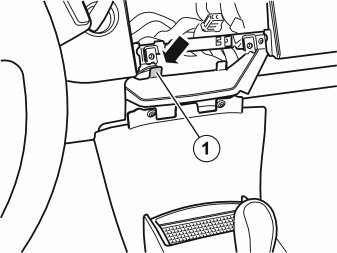

- Unplug the connector for the lighting (1).

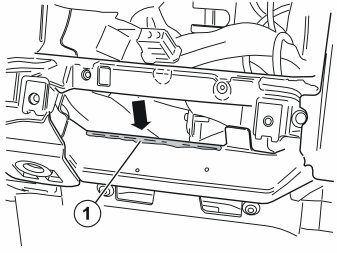

- Remove the sound barrier.

Installing the mounting for the telephone holder

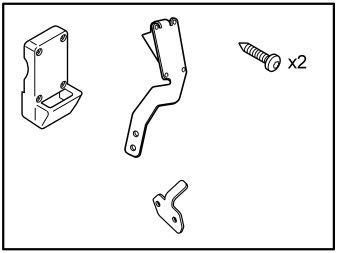

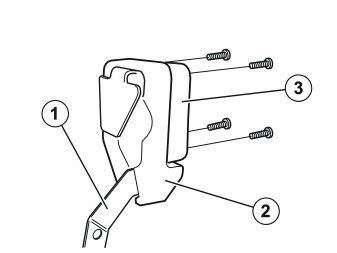

- Take the mounting (1), cover (2), mounting plate (3) and four screws from the kit. Tighten them to each other. Do not tighten too hard, they shall be undone again.

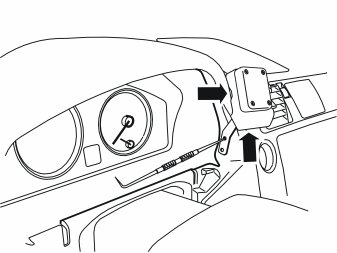

- Position the mounting with the mounting plate and cover in the cut-out for the combined instrument panel surround. The cover must connect to the dashboard where the arrows are displayed.

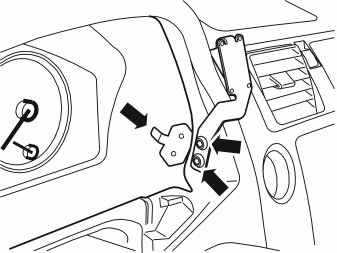

- Mark out the holes to be drilled for the mounting.

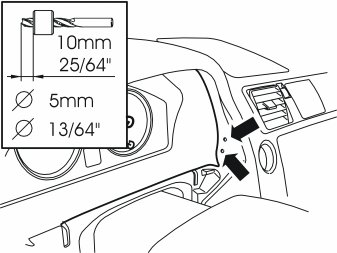

- Drill out the holes using a -5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
- Remove any swarf.




- Remove the holder and cover from the mounting.

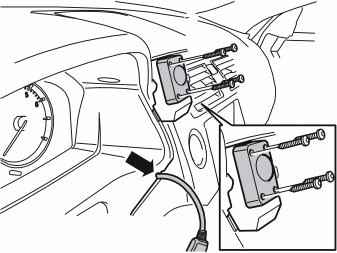

- Tighten the mounting to the dashboard. Use the two screws and the mounting plate (positioned on the inside) from the kit.

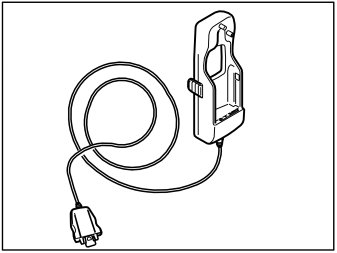

- Take the telephone holder from the kit. Insert the connector on top of the ignition switch, on the right-hand side of the combined instrument panel, and continue down into the dashboard. Do not damage the wiring as there is very little space by the ignition switch.

- Install the microphone according to the separate Installation Instructions.

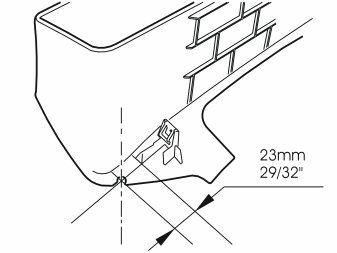

- File a groove in the combined instrument panel surround for the cable for the telephone holder as illustrated.




- Push the felt tape on the right-hand side of the surround to one side.
- Cut off the two tabs.
- Re-apply the tape.

Cable routing




- Reinstall the combined instrument panel surround. Ensure that the telephone holder cable is positioned in the cut-out.
- Adjust the cable length between the telephone holder and surround.
- Tighten the cover and mounting plate to the holder.

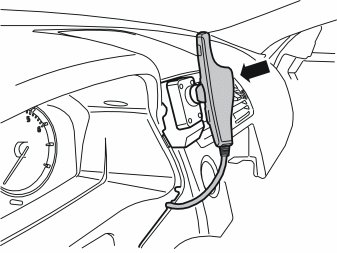

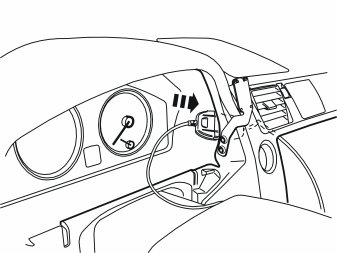

- Press telephone holder into place on the mounting plate. Adjust the cable length outside the surround.




- Saw off the protruding section (1) in the center console using a hack saw blade.




- File down the edge (1) so that the large surface is completely flat.

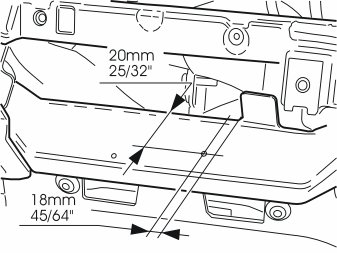

- Mark out and drill a -2 mm (5/64 ") hole on the flat surface as illustrated.

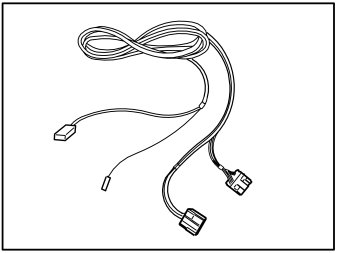

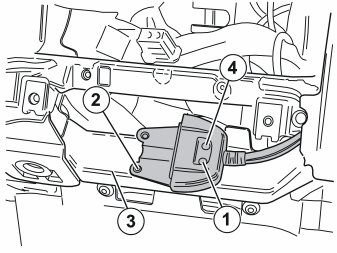

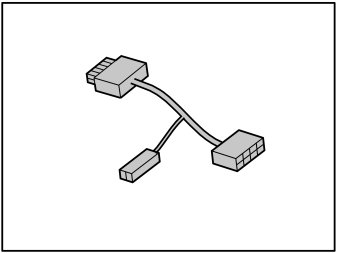

- Take one screw and the connector with the two attached cables from the kit and use the screw to secure it in the newly drilled hole. The screw must be tightened in the hole (1) in the connector.
- Now twist the connector so that the hole (2) is inside the edge (3) when drilling.
- Drill out the hole through the hole in the connector. Use a -2 mm (5/64 ") drill bit.
- Take a new screw from the kit. Tighten the screw in the drilled hole.
- Drill out the third hole (4) in the same way. Tighten using screws from the kit.
- Remove any swarf and filings.




- Press the switch for the telephone holder into the newly installed connector.

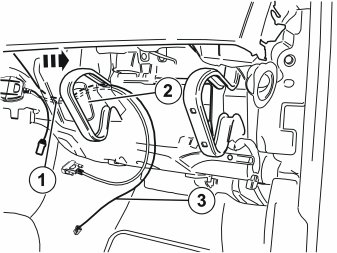

- Route the long cable (1) in the secured connector, inside the panel, over the air duct (2) and forwards. Pull out the cable where the inner section of the glovebox was positioned.
- Route the cable (3) for the microphone in the same way.

- Install the aerial according to the separate Installation Instructions.

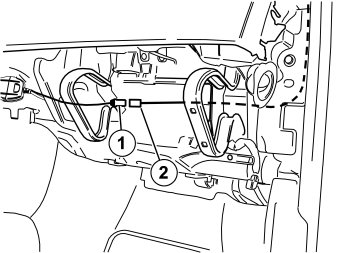

- Connect the short cable (1) from the previously secured connector to the antenna cable (2).
