Tow Sensor: Service and Repair

Automatic Monitoring And Control

Anti-theft protection siren

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off





Ignition off

Removing plenum cover
Remove the plenum cover acc. to: Plenum chamber

Removal

Removing the siren/level sensor

NOTE: The siren/level sensor is mounted on the right side in left-hand drive cars, and on the left side on right-hand drive cars.

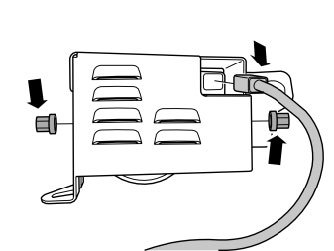

Remove the nuts, 2 pcs.

Remove:





- the 2 nuts
- the siren/level sensor from the bracket
- the connector.

Installation

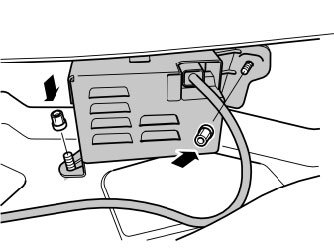

Installing siren/level sensor

Install:
- the connector
- the siren/level sensor in the bracket
- 2 M6 nuts
- the siren/level sensor and the bracket
- the nuts, 2 pcs. M6.

Finishing

Installing plenum cover
Install the plenum cover acc. to: Plenum chamber
