Antenna, Radio: Service and Repair

Antenna radio

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing side panel
Remove the side panel in the luggage compartment acc. to: Side panel loadspace Side Panel Loadspace

Removing antenna

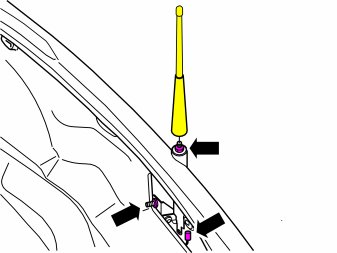

Remove:
- the top of the antenna
- the connector
- the 2 x nuts.

Installation

Note! For tightening torques, see Specifications. [1][2]Specifications.

Installing antenna and side panel





Install:
- the antenna

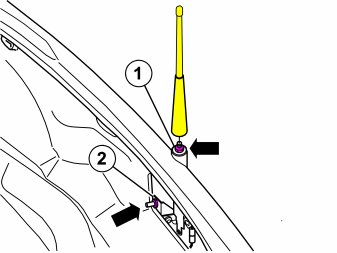

- the nut (1). Tighten acc. to: Tightening torque [1][2]Specifications
- the nut (2) M6
- the connector
- the side panel acc. to: Side panel loadspace Side Panel Loadspace

Finishing

Function test
Test the function.
