Invalid Combination

Invalid combination

Checking the component
The diagnostic trouble code (DTC) is stored if the control module has detected an invalid button combination in the controls for entering.
Check if the switch is sticking due to dirt or there is an obstruction preventing the switch from returning.
No further corrective action is required if the diagnostic trouble code (DTC) is intermittent and does not recur.
The keypad must be replaced if the switch does not spring back and the fault is not due to dirt or an external object.

Hint: Read off the relevant switch and check the function.

Other information:

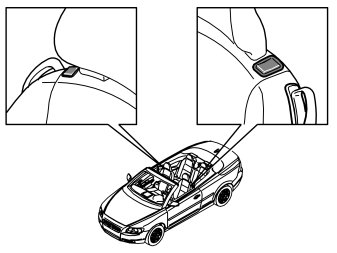

- Front seat backrest rear seat Front Seat Backrest Rear Seat









Continue - Verification

-------------------------------------------------

Verification









Hint: After carrying out the repair check that the symptom has been remedied.

- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
- Read off the relevant button or switch.
Check that the function for the relevant button or switch is correct.





Is the function OK?

Yes - Troubleshooting procedure complete

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit Fault-Tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component

-------------------------------------------------
