Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information KVM-0012

Condition

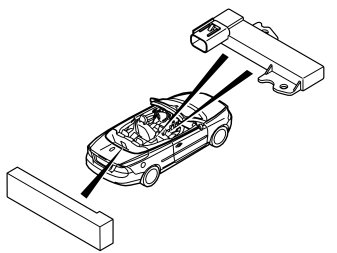

The keyless vehicle module (KVM) checks the connection with the connected antenna when the vehicle speed exceeds 20 km/h (12 mph). The check occurs every 5th operating cycle. The diagnostic trouble code (DTC) is stored if the control module registers that the there is no signal from any of the antennas.
The diagnostic trouble code (DTC) can always be diagnosed when the car is supplied with power.

Substitute value
- None.

Possible source
- Open-circuit in the signal cable in the inner antenna circuit
- One of the inner antennas not connected
- None of the inner antennas connected
- One of the antennas is defective.

Fault symptom[s]
- No, or reduced, keyless functionality.
