Motor Blocked
Motor blocked
Checking the 15-supply
- Ignition on.

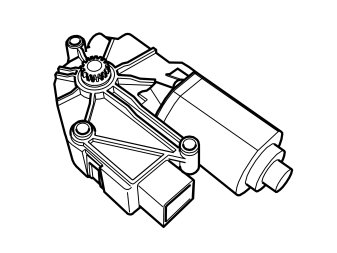

Check the catch motor's functions by activating the motor and reading out its position.
Note! For the catch motor to be OK the read-out must show "locked" or "unlocked" after the activations.
Read off by clicking the VCT2000 symbol.
Does the catch motor work?
Yes - Checking the cable for an open-circuit
No - Checking catches
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
Check the function of the convertible roof module (CRM) by operating the roof with the control buttons.
Does operation of the roof work?
Yes - FAULT FOUND
No - No Fault Found
------------------------
No Fault Found - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking the 15-supply
-------------------------------------------------
Checking the cable for an open-circuit
- Check the cable between the Convertible Roof Module (CRM) terminal #D1 (#A31) and the catch motor. Check for an open-circuit.
- Check the cable between the Convertible Roof Module (CRM) terminal #D12 (#A42) and the catch motor. Check for an open-circuit.
Remedy as necessary.
Other information
- Checking wiring and terminals Checking Wiring and Terminals
Was a fault detected in the cables or terminals?
Yes - Verification
No - Checking the Hall sensor
-------------------------------------------------
Checking the Hall sensor
Check the Hall sensor for wear and signs of malfunctioning.
In case of damage, replace hall sensor.
If no defect was found on the hall sensor, replace Convertible Roof Module (CRM).
Other information
- Covertible Top Position Switch Covertible Top Position Switch
- Convertible Roof Module (CRM) Removal and Replacement
Continue - Verification
-------------------------------------------------
Checking catches
Check surrounding components that can affect the locking function of the catches.
1. Open the boot lid using the mechanical key inside the passenger compartment.
2. Raise the boot lid slightly and lock the catches manually.
3. Lower the boot lid carefully.
4. Close the roof using the button in the passenger compartment.
5. If Driver information module (DIM) displays the message ROOF CLOSED, go to step 6, otherwise skip to step 7.
6. Check that there is no mechanical blockage. Luggage Compartment Lid Service and Repair
7. If no fault is found, try replacing the catch motor.
Remedy as necessary.
Other information
Continue - Verification
-------------------------------------------------
