Stuck in Active position

Stuck in active position

Checking the control
The fault code is generated when a button or switch has been pressed for a long time. No further corrective action is required if the diagnostic trouble code (DTC) is intermittent and does not recur.
Check that the button or switch does not stick in the activated position.
Check the cable between the Convertible Roof Module (CRM) #F11 (#B31)and control roof opening for short-circuit to ground.
Read off the relevant button or switch. Activate reading off the parameters by clicking on the VCT2000 symbol. Check the function.
Remedy as necessary.

Other information

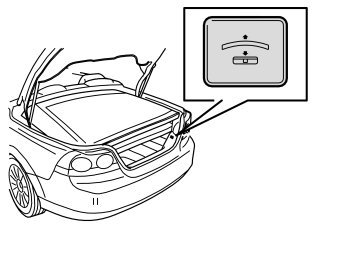

- Switch tunnel compartment Switch Tunnel Compartment Switch tunnel compartment Switch Tunnel Compartment













Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reconnect the connectors, reinstall components etc.
- Ignition on
- Read off the relevant button or switch.
Check that the function for the relevant button or switch is correct.
Read off by clicking the VCT2000 symbol.





Is the function correct?

Yes - Troubleshooting procedure complete

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit Fault-Tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the control

-------------------------------------------------
