Faulty function

Faulty function

Checking the component








- Ignition off.

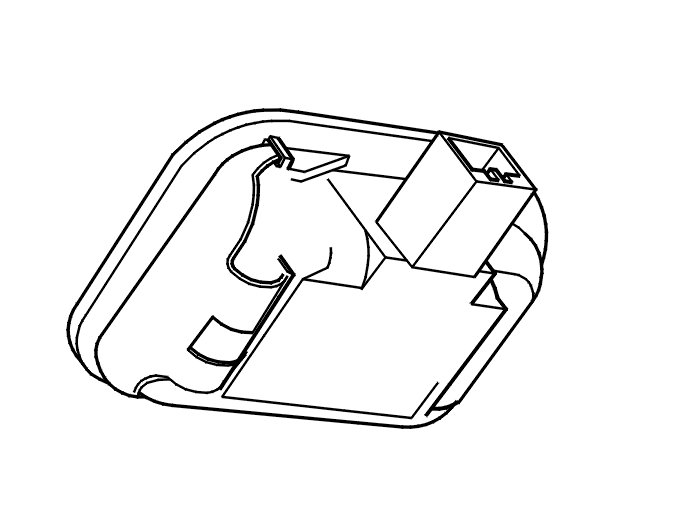

Check the rain sensor connector. Check for contact resistance. Check for oxidation.
Check that the rain sensor is not damaged.
Check that the rain sensor is fixed on the windshield.
Check that there are no cracks in the windshield by the rain sensor.
Check that there are no stone chips in the windshield by the rain sensor.
Remedy as necessary.

Other information
- Connecting the breakout box Connecting the Breakout Box, Central Electronic Module (CEM)
- Signal specification Signal Description, Central Electronic Module (CEM)
- Location of components Component Location, Central Electronic Module (CEM)
- Control module relay box passenger compartment Service and Repair
- Rain sensor Service and Repair
- Checking wiring and terminals Checking Wiring and Terminals









Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Check the function. See: Rain sensor, check Testing and Inspection
Check that the function is OK.

Is the function OK?

Yes - Troubleshooting procedure complete

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit Fault-Tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component

-------------------------------------------------
