Faulty Signal
Faulty signal
Checking the wiring
- Ignition on.
Click on the symbol for VCT2000 to read out the voltage from the fuel level sensor.
For information on voltage levels for different fuel tanks, see component specification.
Check the power supply cable. Check for an open-circuit. Check for a short-circuit to supply voltage.
Take readings between:

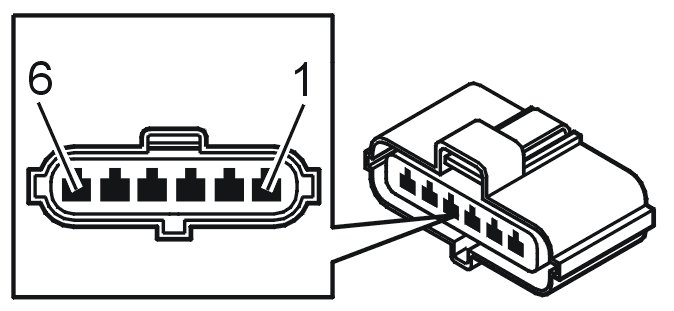

- Central electronic module (CEM) terminal #F5 (#5) and right-hand fuel level sensor connector terminal #2
- Central electronic module (CEM) terminal #F7 (#7) and right-hand fuel level sensor connector terminal #4.
Remedy as necessary.
Other information
- Component specification [1][2]Body Control Systems
- Connecting the breakout box Connecting the Breakout Box, Central Electronic Module (CEM)
- Signal specification Signal Description, Central Electronic Module (CEM)
- Location of components Component Location, Central Electronic Module (CEM)
- Control module relay box passenger compartment Service and Repair
- Level sensor fuel tank, B5254T7, M66 Level Sensor Fuel Tank
- Checking wiring and terminals Checking Wiring and Terminals
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Read off the sensor signal by clicking the VCT2000 symbol.
Check that the value is between 0 and 5 volts.
Is the value OK?
Yes - Troubleshooting procedure complete
No - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking the wiring
-------------------------------------------------
