Handsfree, Microphone, Swan Neck [4 of 4]

- Tape the connector from the microphone cable to the end of the wire.
- Pull through the cable.
- Disconnect the cable from the wire.





- Place the microphone's bracket over the hole on the backrest.
- Point the microphone arm 45° forward. Press down the headrest so that it locks into place.
- Check that the headrest has locked into place by pulling it upwards.





- Route the cable in front of the tube (1).
- Secure the cable with a cable tie to the large connector (2).
- Reinstall the upholstery for the backrest.





- Place the cable in the carpet joint. Pull the cable forward and all the way through the centre console. Place the cable under the floor carpet.

Note! It is important that the cable has the right length so that the seat can move back and forth freely.





- Route the cable from the centre console and forwards. Place the cable under the floor carpet.





- Fold the carpet out of the way. Locate the foam tape with connections for the Bluetooth system.





- Loosen existing connection to the microphone.
- Connect the new microphone cable. Reinstall the foam tape.

Note! Also secure the extra length of the microphone cable with the foam tape.

- Replace the cable harnesses and fold back the floor carpet.

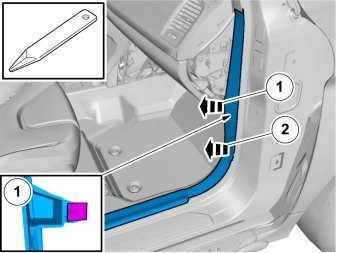

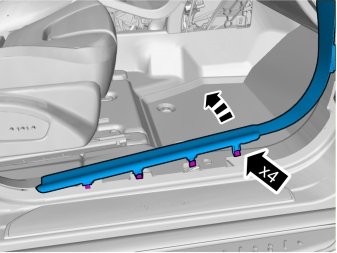

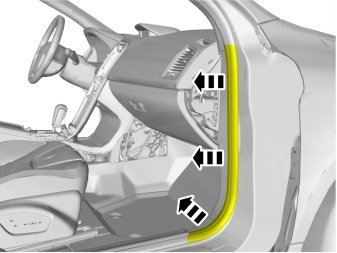

- Reinstall the side panels and soundproofing.

Applies to the S60 (11-) and XC60






































- Fold the carpet to one side.














- Insert a curtain wire or similar from above and down on the back of the seat back, between the upholstery and padding.





- Tape the connector from the microphone cable to the end of the wire.
- Pull through the cable.
- Disconnect the cable from the wire.






- Place the microphone's bracket over the hole on the backrest.
- Point the microphone arm 45° forward. Press down the headrest so that it locks into place.
- Check that the headrest has locked into place by pulling it upwards.





- Route the cable in front of the tube (1).
- Secure the cable with a cable tie to the large connector (2).
- Reinstall the upholstery for the backrest.



















Reinstall the detached components in reverse order.
