System Specifications

Specifications, mechanical

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Engine oil

13.3 r/s (800 rpm).0.10 Mpa(1)
14.2 r/s (850 rpm).0.10 Mpa(1)
66.7 r/s (4000 rpm).0.35 Mpa(1)
Maximum oil pressure (the relief valve opens).0.48 Mpa

(1)The oil pressure given is for an oil temperature of 100° C, which is reached after 10-15 minutes driving.

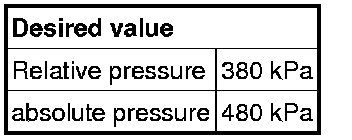

Fuel line pressure





Cooling system

Marking. 90
Starts to open at. 90° C
Fully open at. 105° C
