Home >> Volvo >> 2006 >> XC90 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Transmission

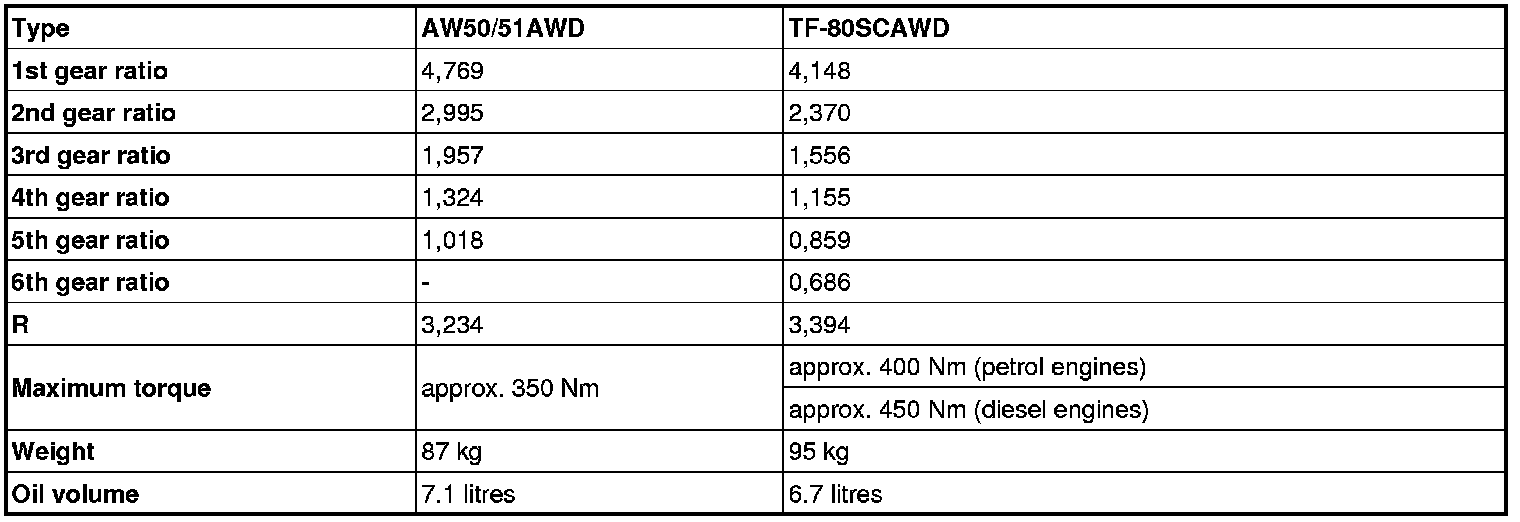

Transmission






Transaxle

Specifications











Lubrication transmission

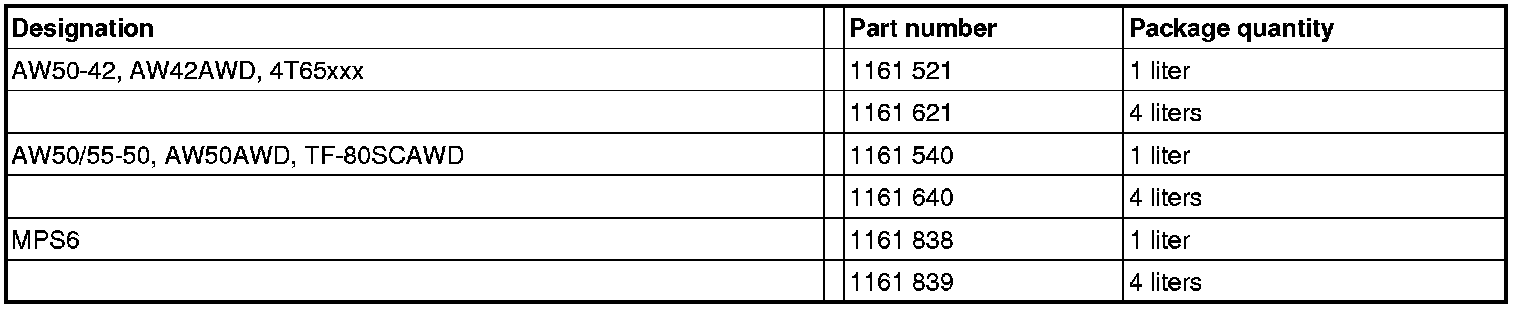

Transmission, automatic

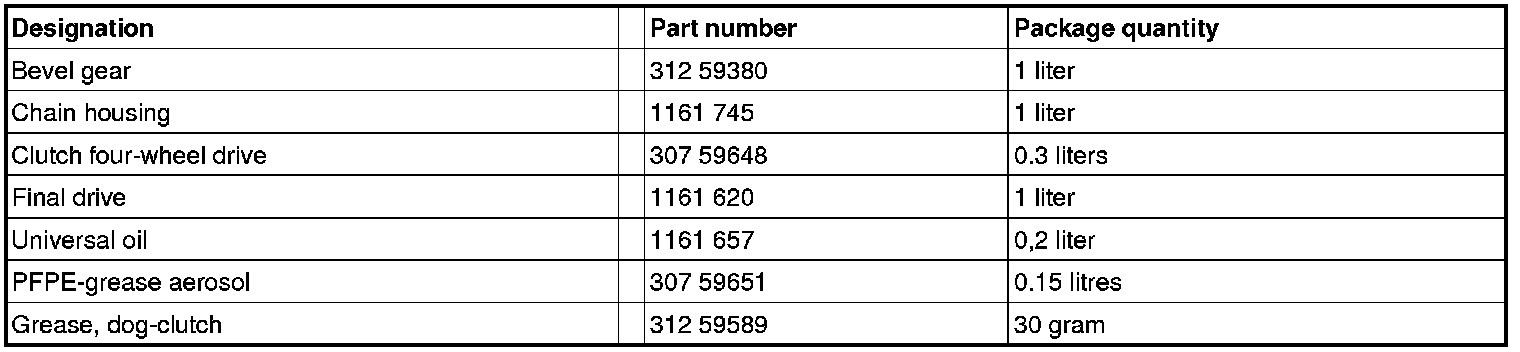

Miscellaneous

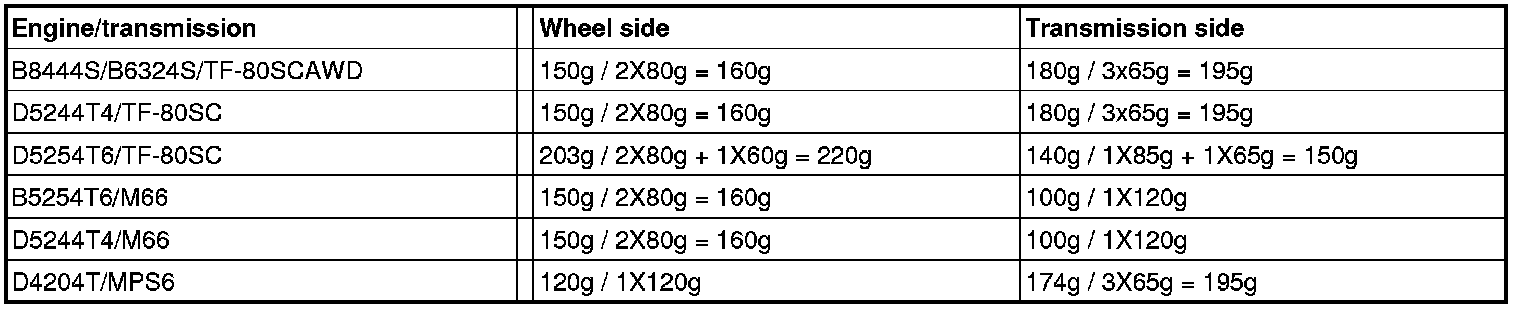

Constant velocity joint boot, grease quantity
