Steering Control Module: Service and Repair

Control module steering gear, replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work




Ignition off.
Remove the soundproofing panel on the driver's side. See Soundproofing panel, replacing Soundproofing Panel, Replacing.

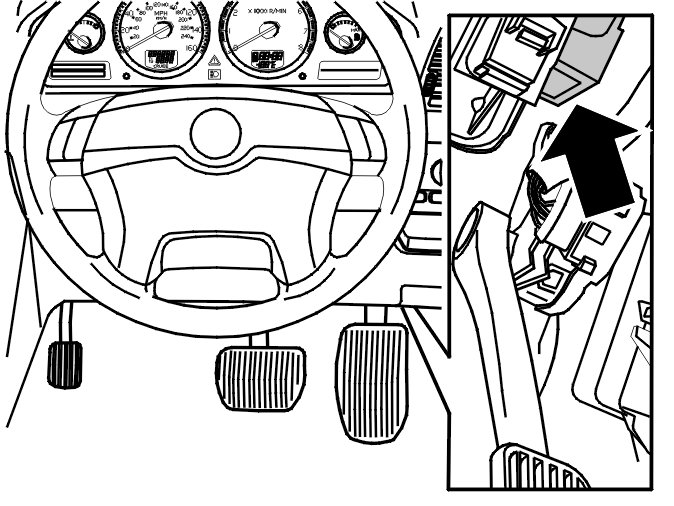

Hint: The control module for the steering gear is on the pedal box bracket. See the illustration.

Removal




Remove the control module for the steering gear.
Disconnect the connector.

Installation
Connect the connector.
Install the control module for the steering gear.

Finishing work
Install the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing.
Test the function.
