Fuel Pump Control Unit: Service and Repair

Fuel pump driver module

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.








Remove:

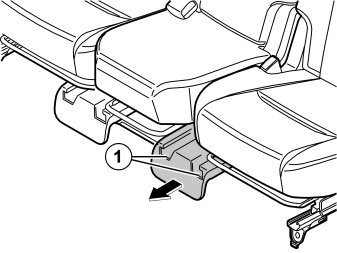

- covers over seat rails
- screws, 4 pcs.




Fold up the carpet. Detach the sill trim panel slightly.

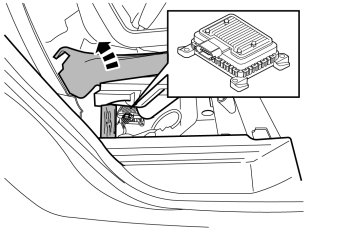

Carefully lift up the insulation block and place a block under the insulation block to access the module.
Install the new module and connect the cable connector.
Remove the block and fold the carpet back. Press the sill trim panel into place.

Installation




Install the seat. Use new screws, 4 x M10. Tighten to 50 Nm.
