Computer/Controls - BCM DTC 0112 Set During Cranking

Title BCM DTC 0112 (set during cranking with low battery voltage)

Ref No US26080.1.0 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 5931

Func Desc control unit

Status Released

Status Date 03-26-2012

Issue Date 03-22-2012

Reference

Attachment

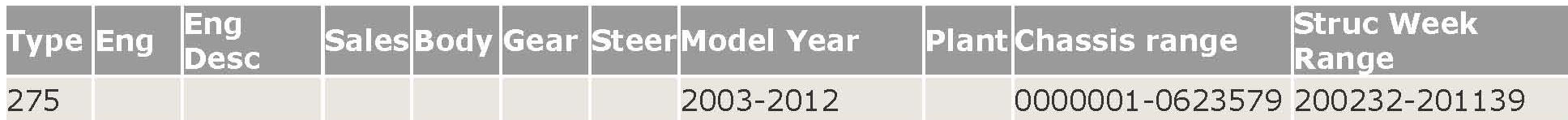

Vehicle Type

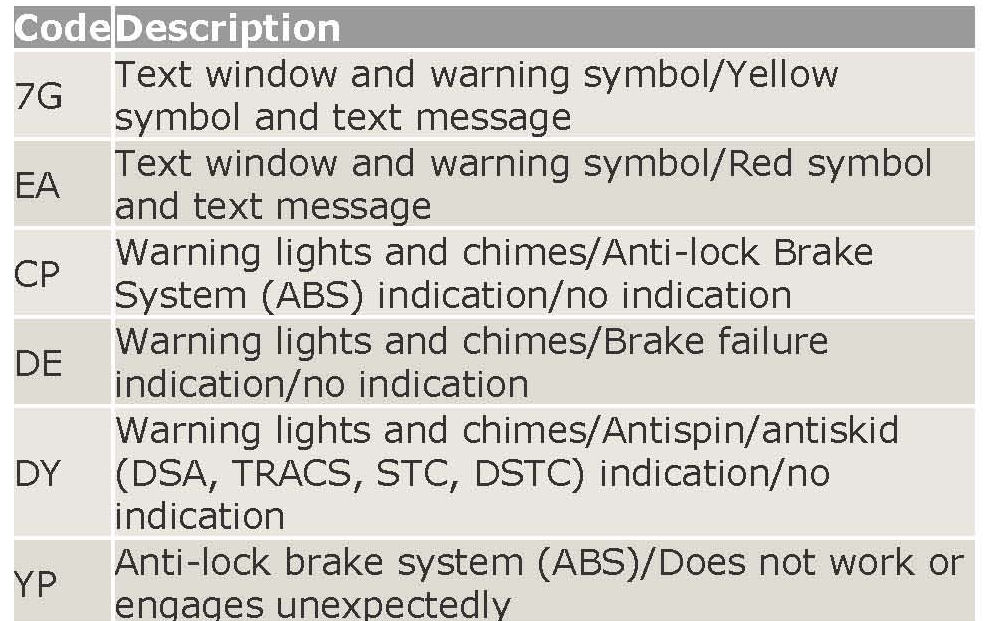

CSC Customer Symptom Codes





DTC Diagnostic Trouble Codes

Text
BCM = Brake Control Module
DIM = Driver Information Module

DESCRIPTION:
DTC BCM-0112 may be set along with a DIM text message ""Anti Skid Failure, Service required". In the consecutive ignition cycle the text message changes to "Anti Skid Temporarily off". After driving above 30kph (18MPH), the text message and warning lamp are turned off; normal functionality resumes.

The DTC can be set when cranking the engine approximately 1.8 seconds after ignition on, and in combination with low battery state of charge.

SERVICE:

Download BCM upgrade, PN 30677015.

VSTG OPERATION NUMBER:

36004-2 Software download
