Parking Assistance Module (PAM), Replacing

Parking assistance module (PAM), replacing

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work




Ignition off.

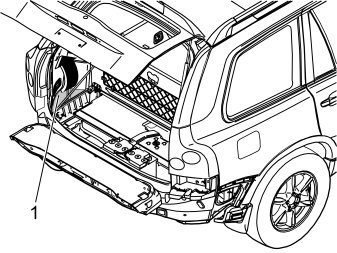

Fold up the cargo compartment floor and remove the corner piece (1) of the floor on the left-hand side. See the illustration.

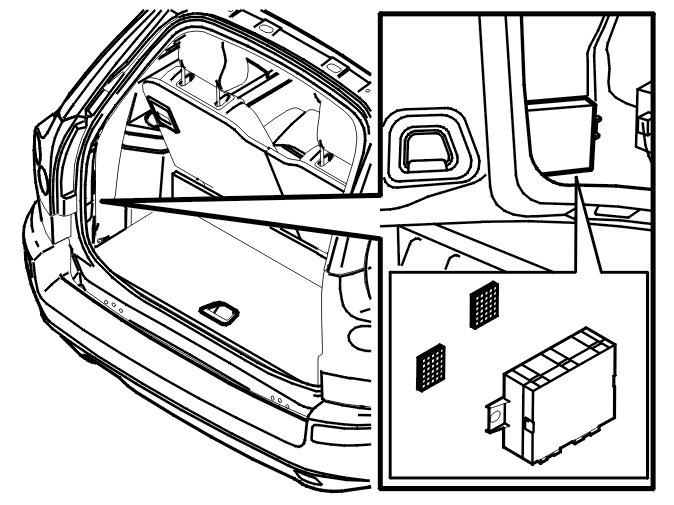

Removing the parking assistance module (PAM)
Remove the parking assistance module (PAM) from its Velcro mounting.

Installing the parking assistance module (PAM)




Connect the connectors.
Install the parking assistance module (PAM) in the Velcro mounting. Check that the control module is secure.
Install the corner piece of the floor.
Install side panel.
Fold down the floor hatch.
Test the function.
